Solenoid Body Assembly: Notes

SPECIAL TOOLS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

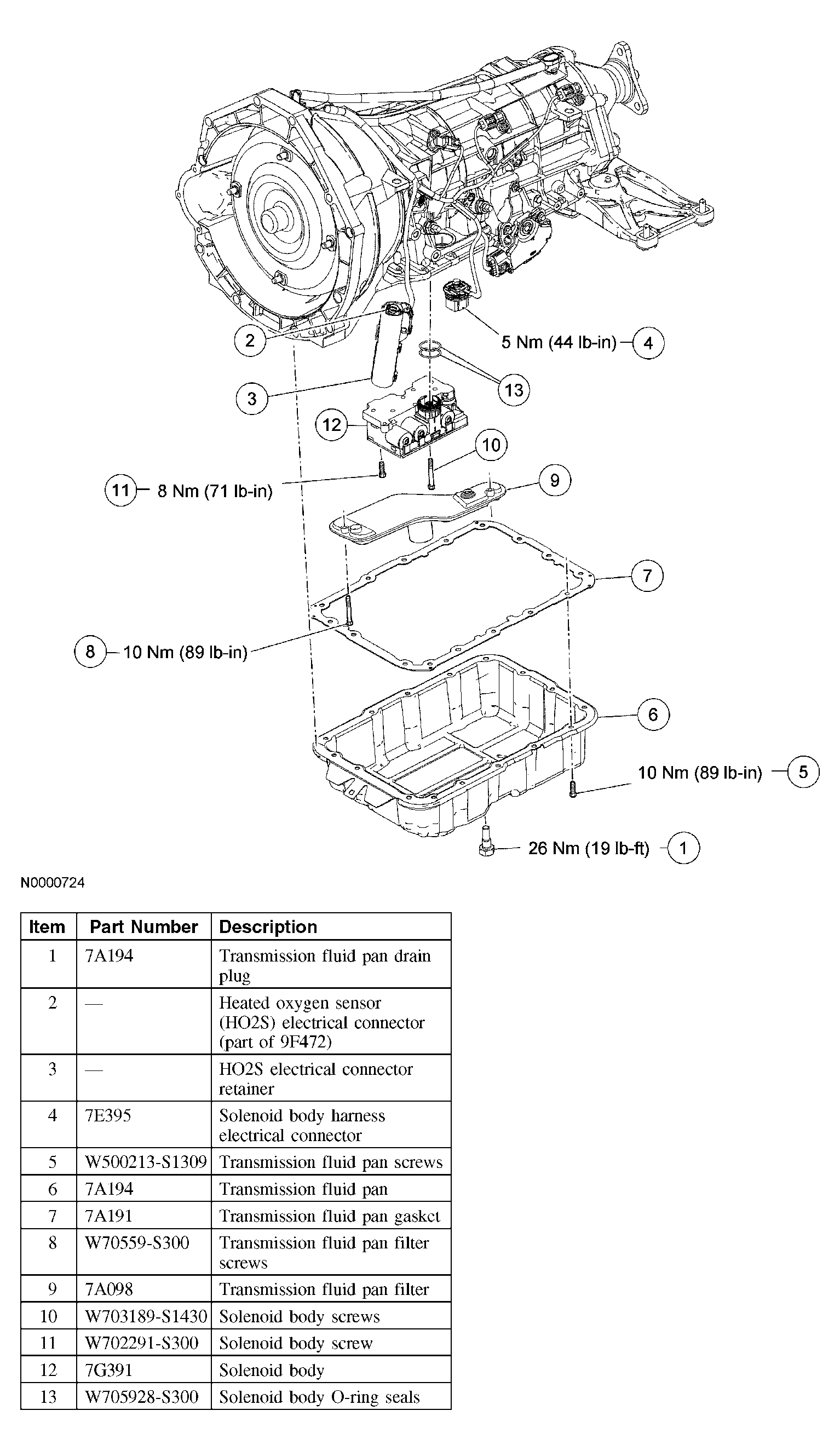

Fig 1: Replacement Components Solenoid Body Assembly With Torque Specifications
G04008244Courtesy of FORD MOTOR CO.
