Exhaust System
Exhaust System
- Exploded View

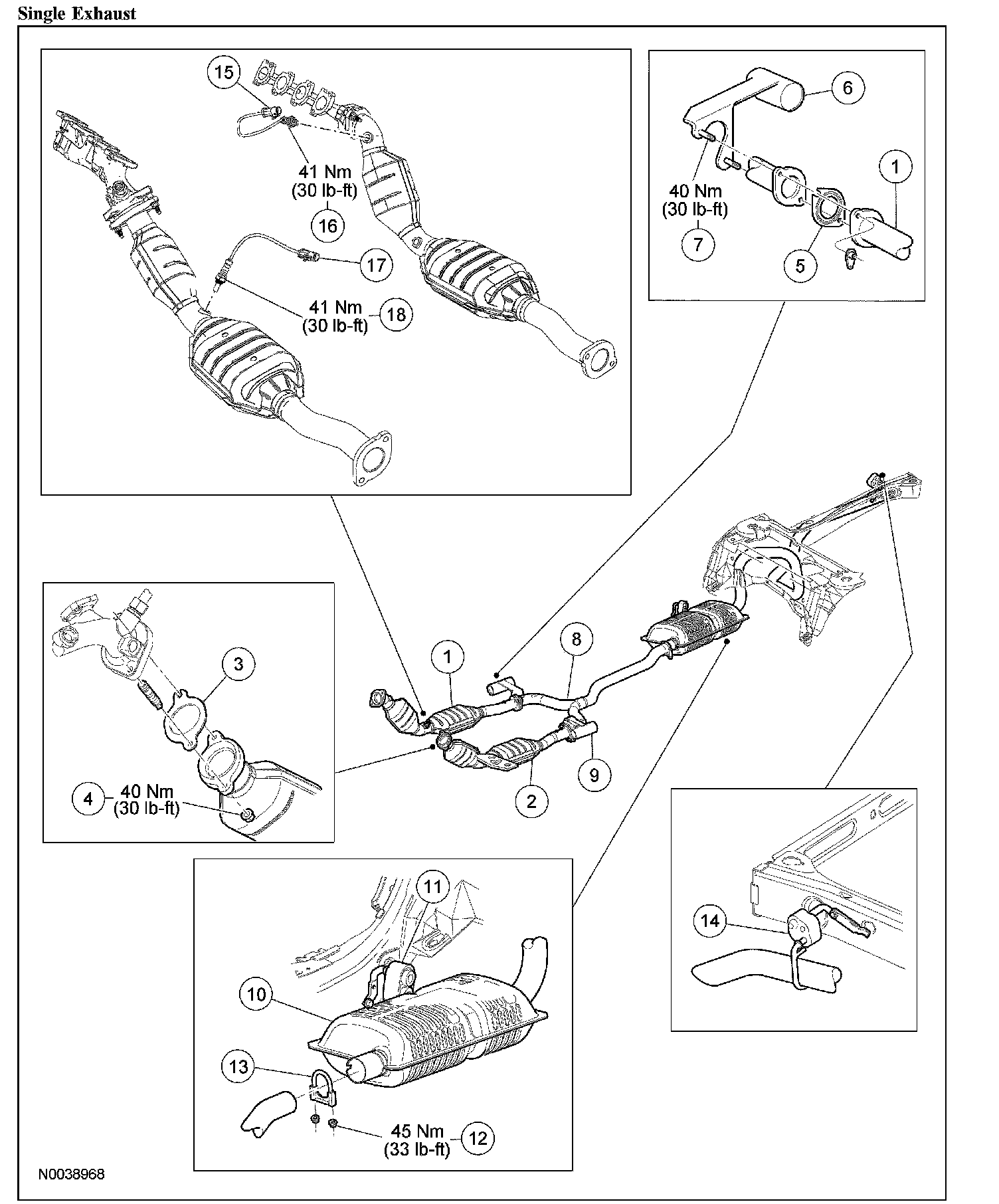

Single Exhaust:
Single Exhaust:

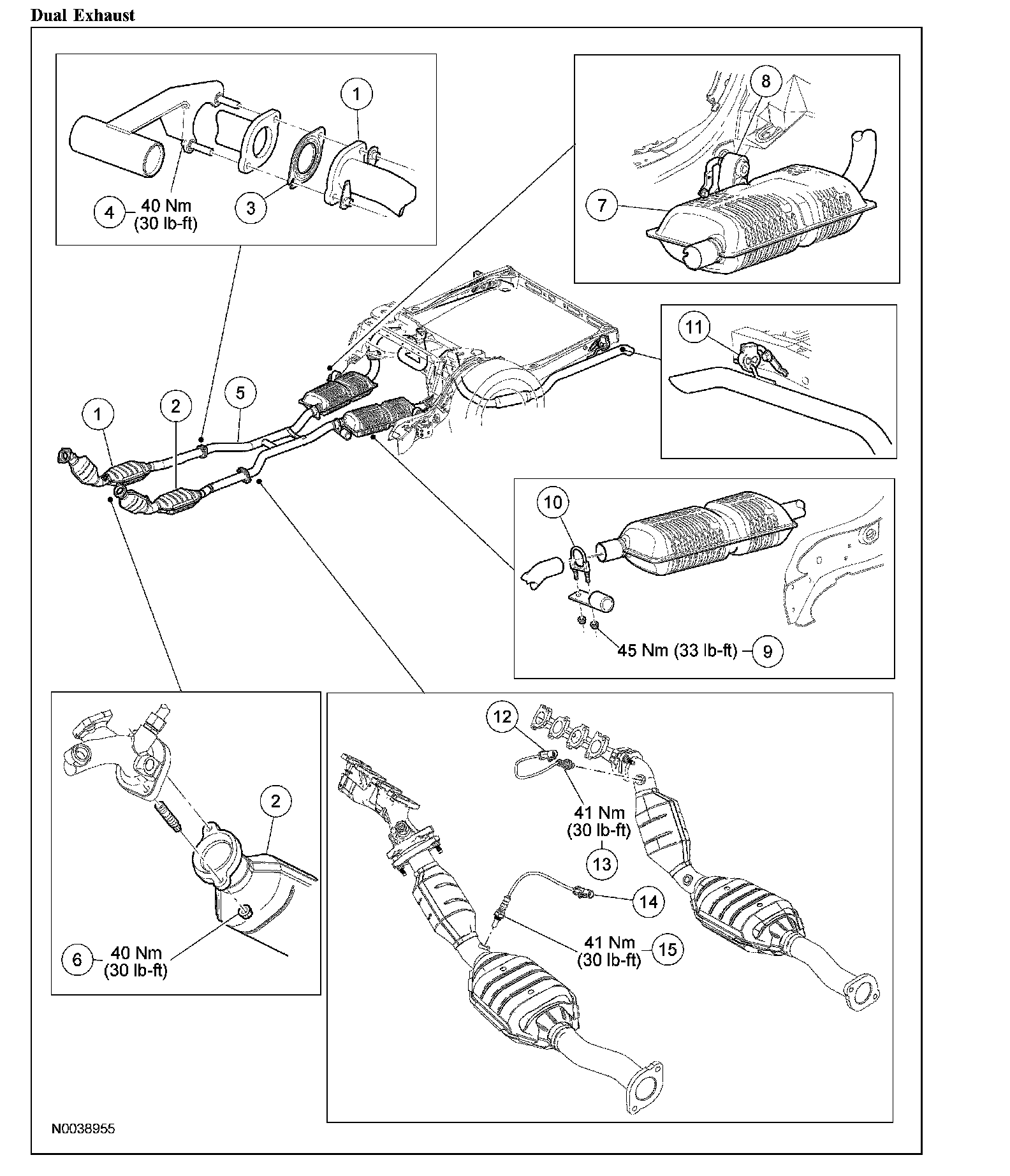

Dual Exhaust:
Dual Exhaust:
