Stability Control Sensor Cluster: Notes

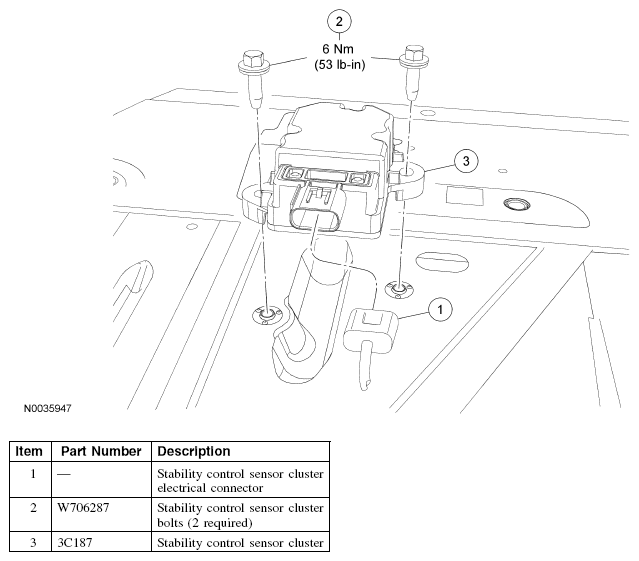

Fig 1: Stability Control Sensor Cluster With Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
