Steering Wheel Angle/Rotation Sensor: Notes

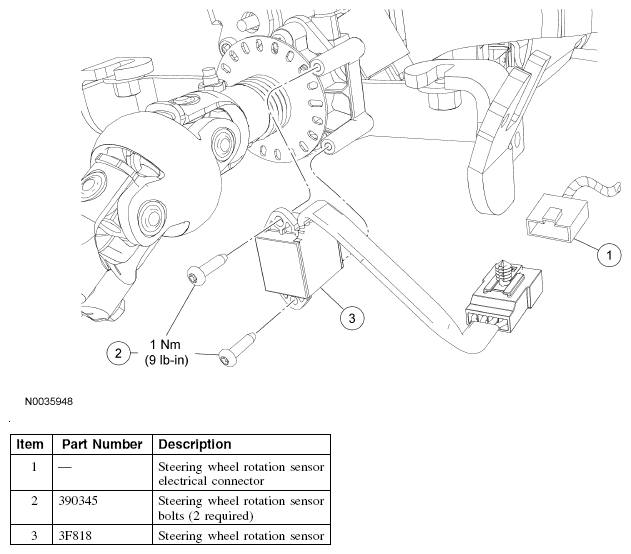

Fig 1: Steering Wheel Angle/Rotation Sensor Replacement Components With Torque Specifications
G04610889Courtesy of FORD MOTOR CO.
