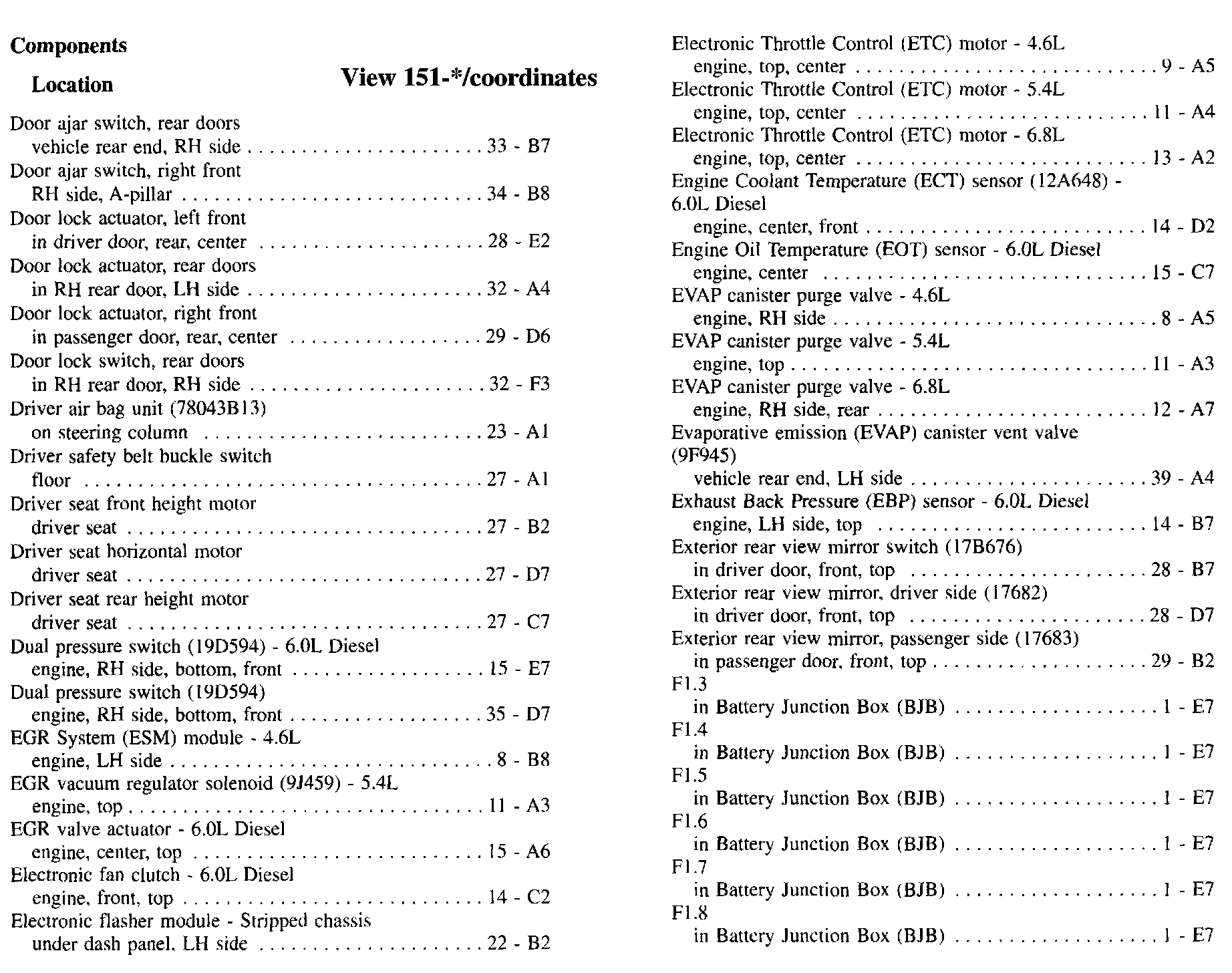

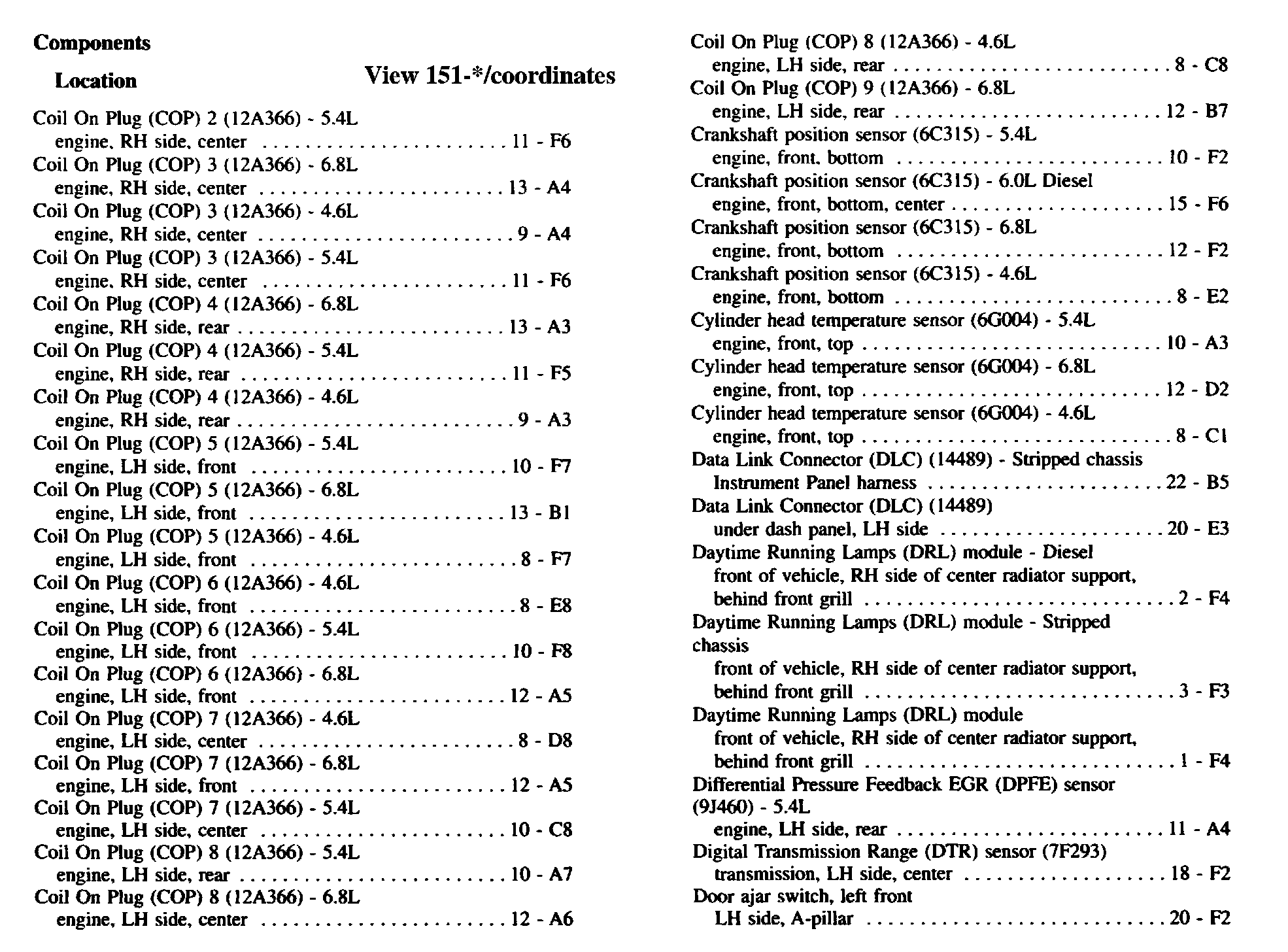

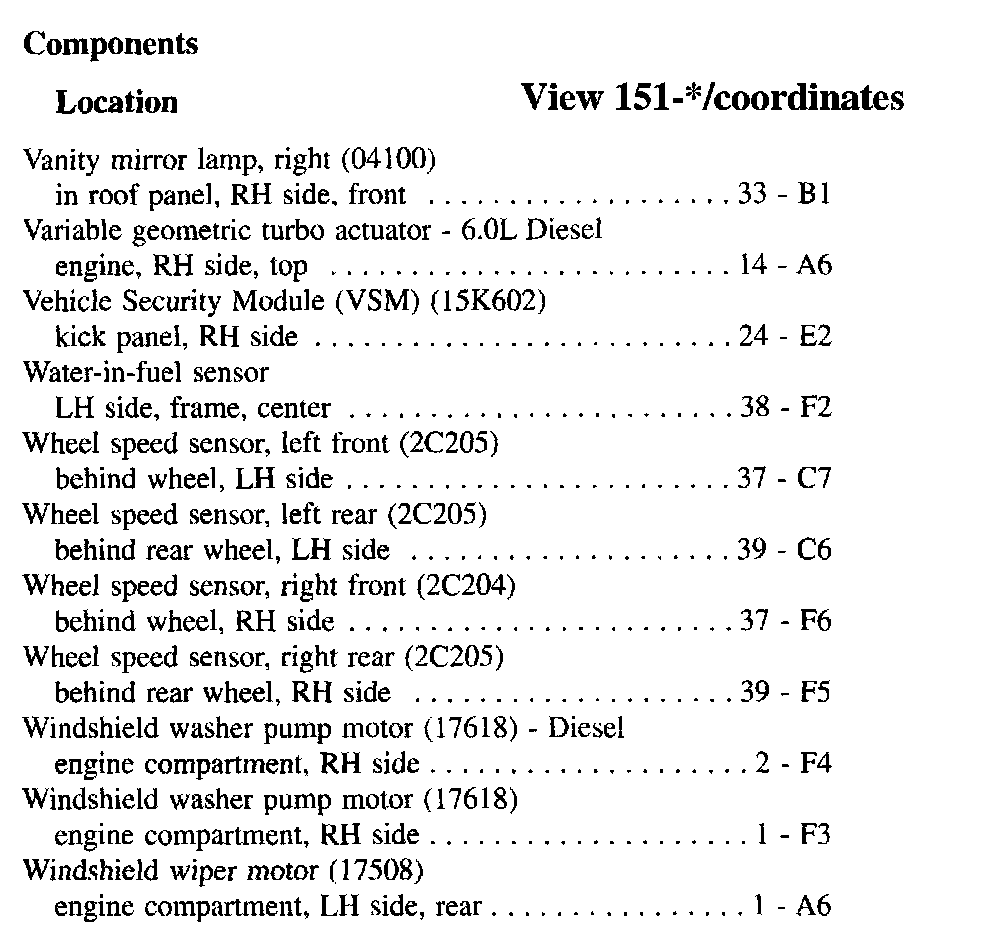

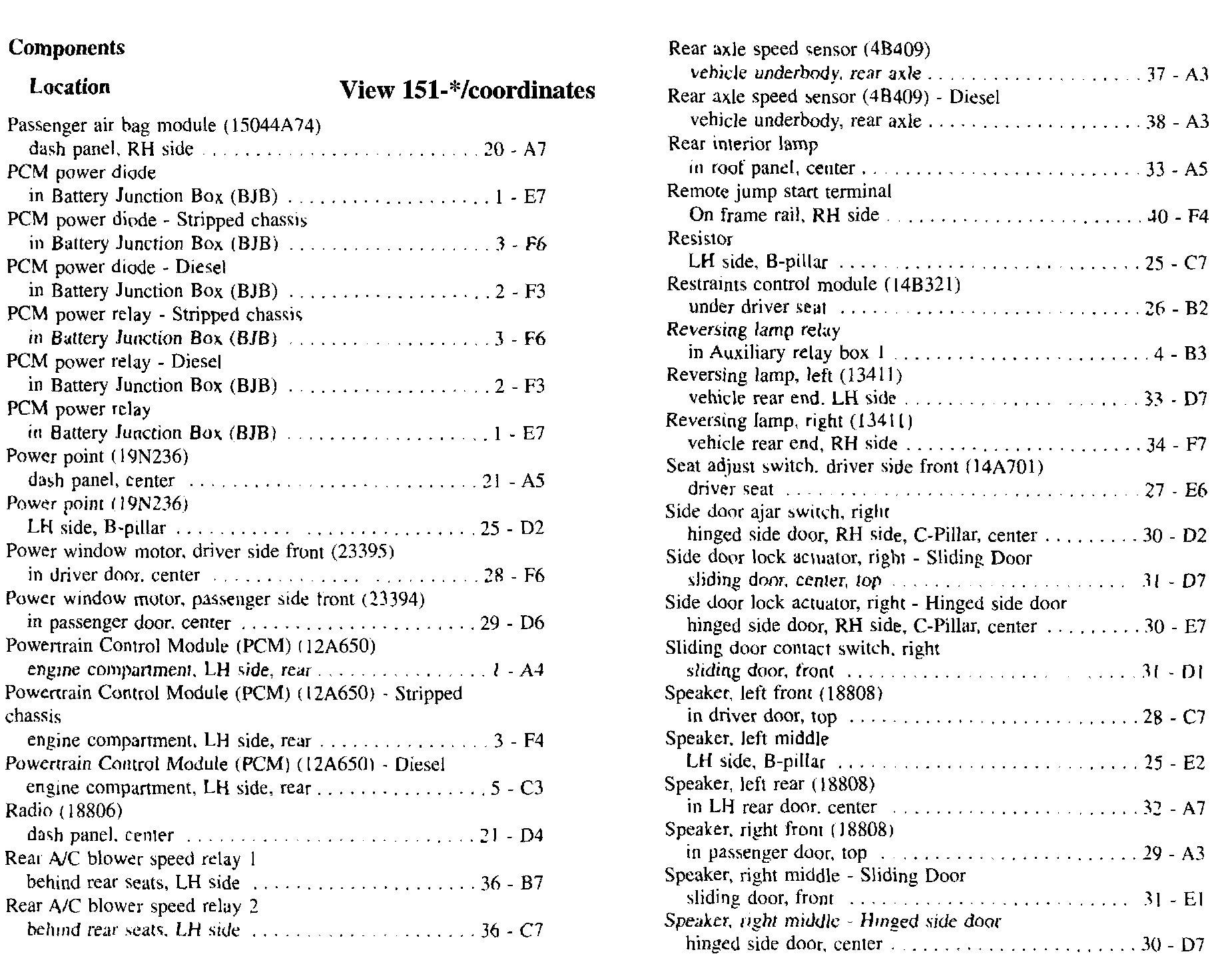

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

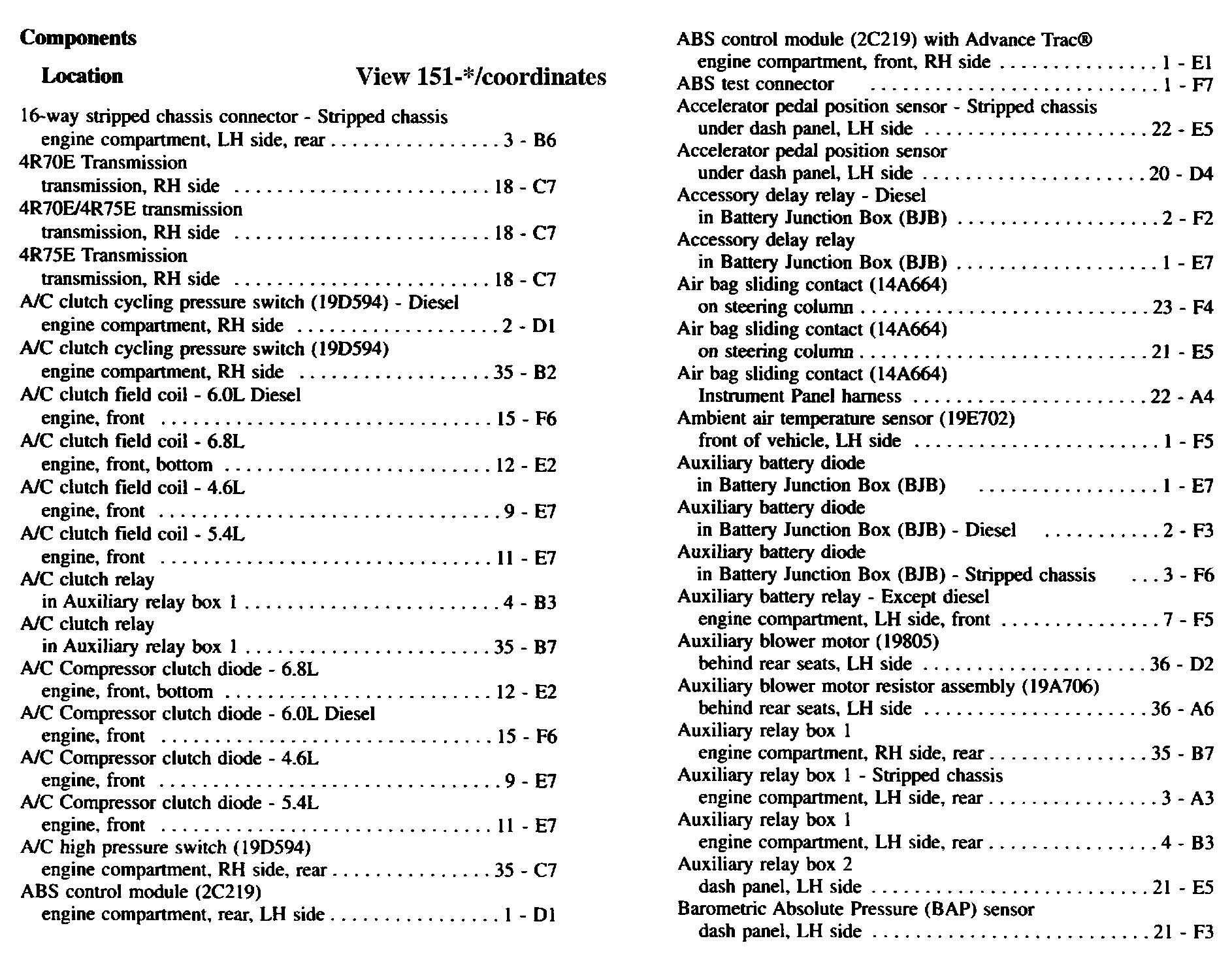

16-Ba:

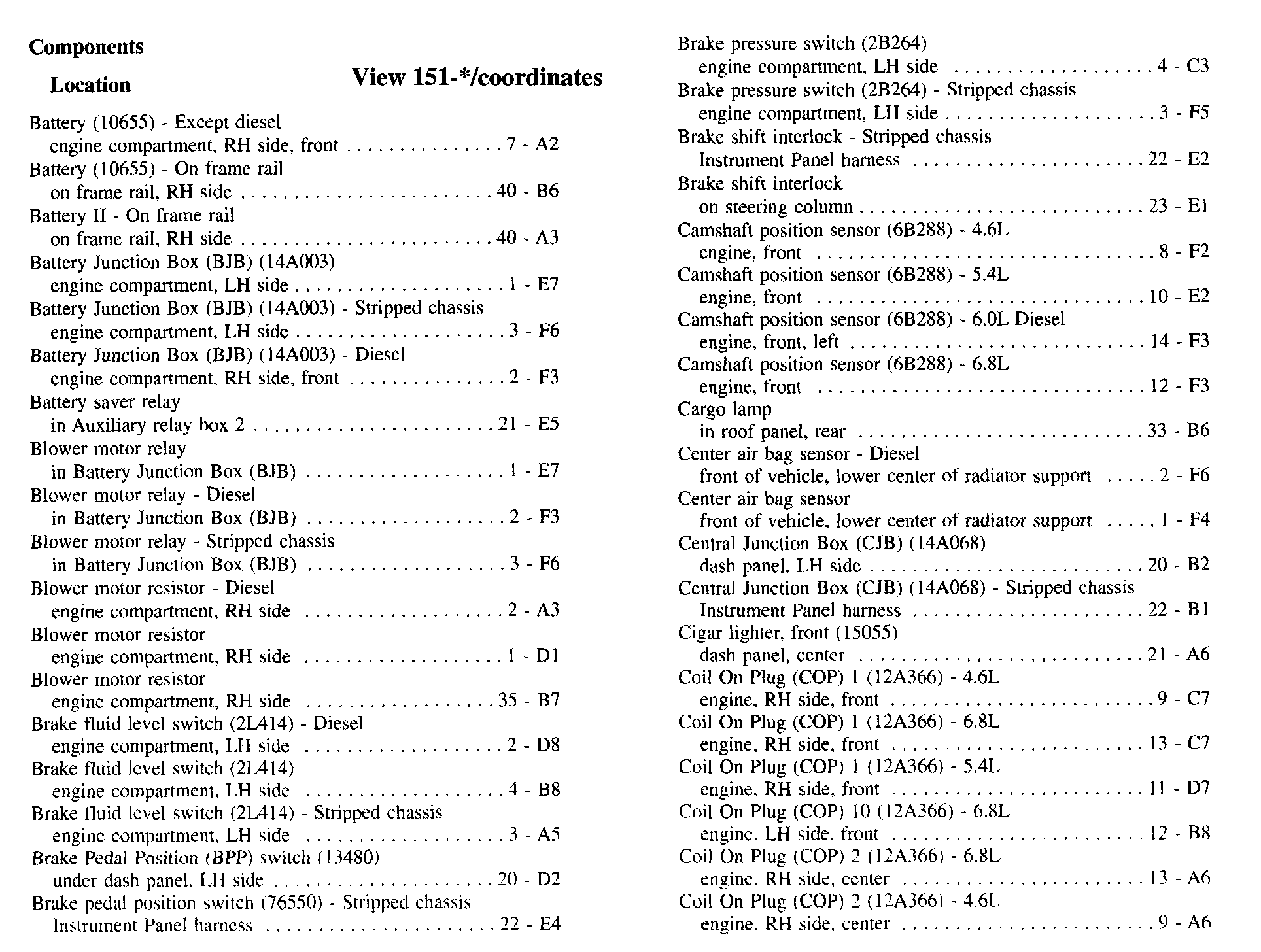

Ba-Co:
Co-Do:
Do-F1.8:

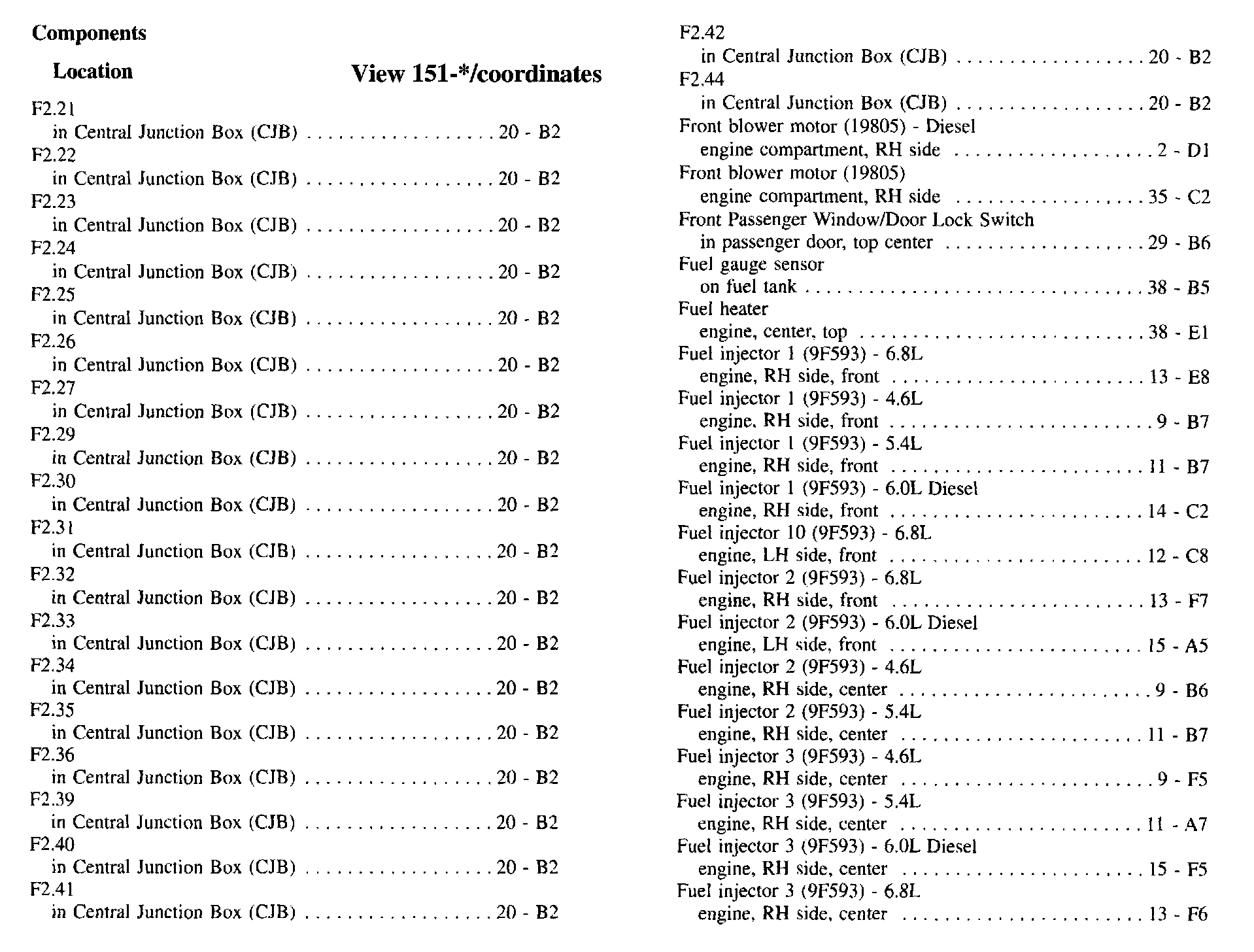

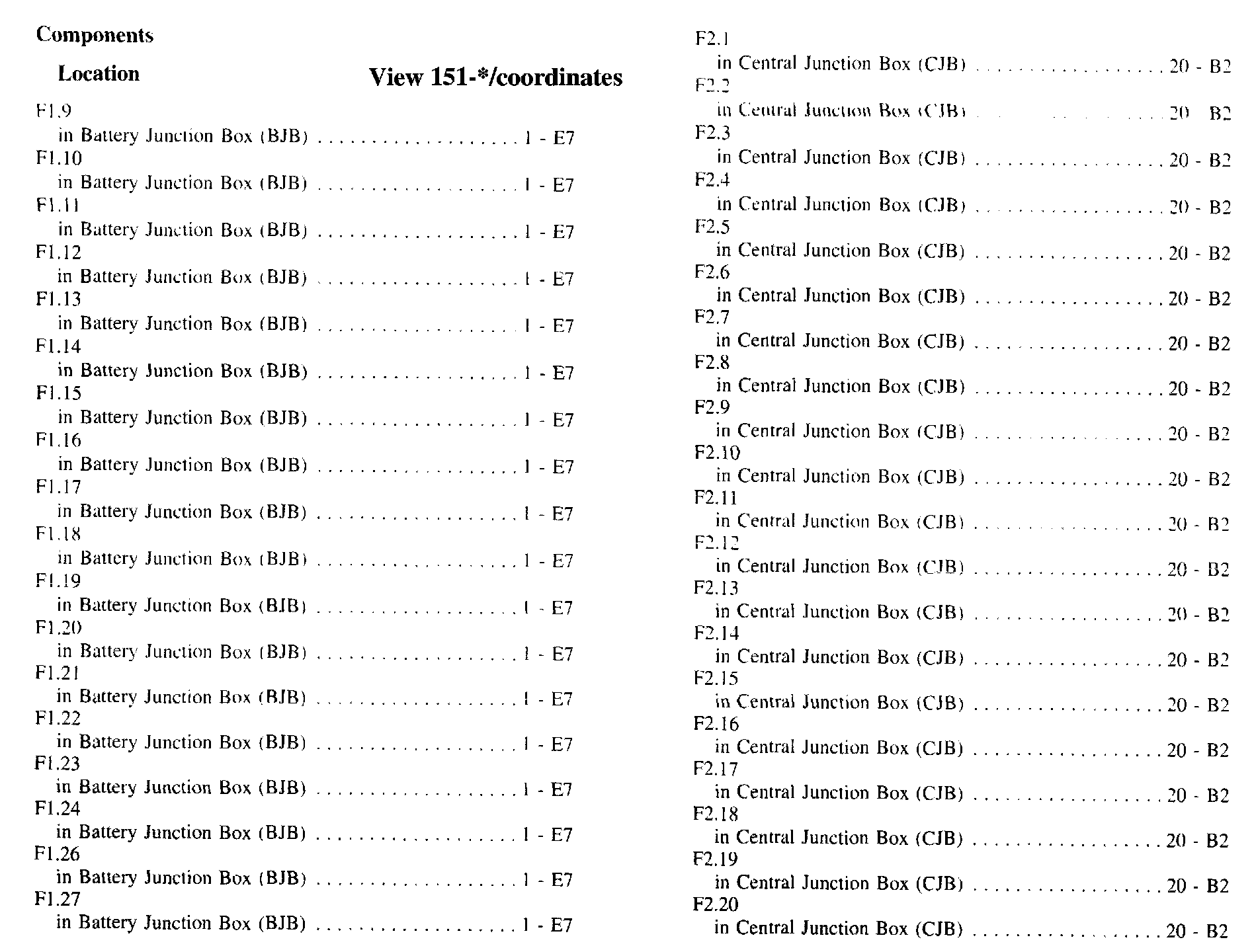

F1.9-F2.20:
F2.21-Fu:

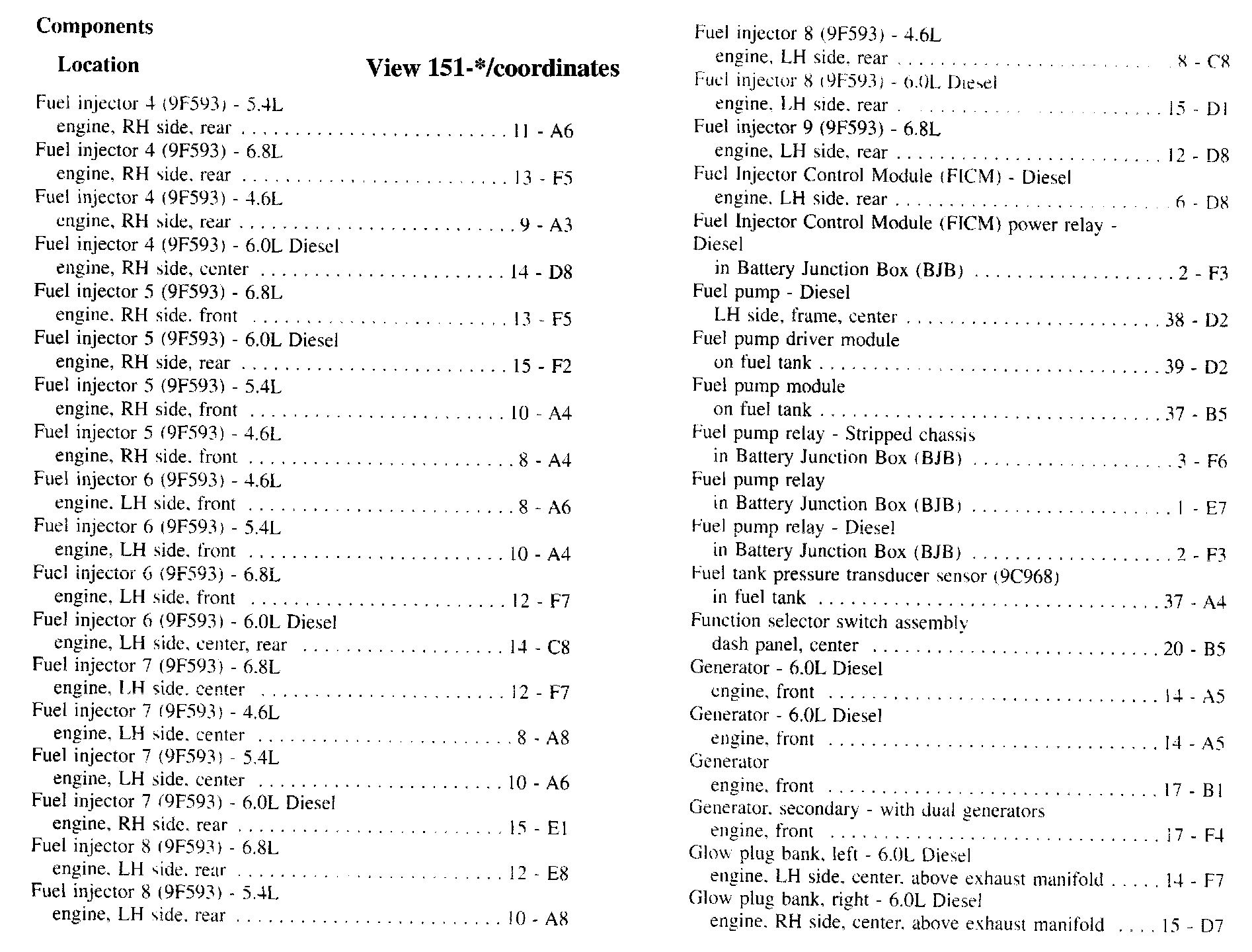

Fu-Gl:

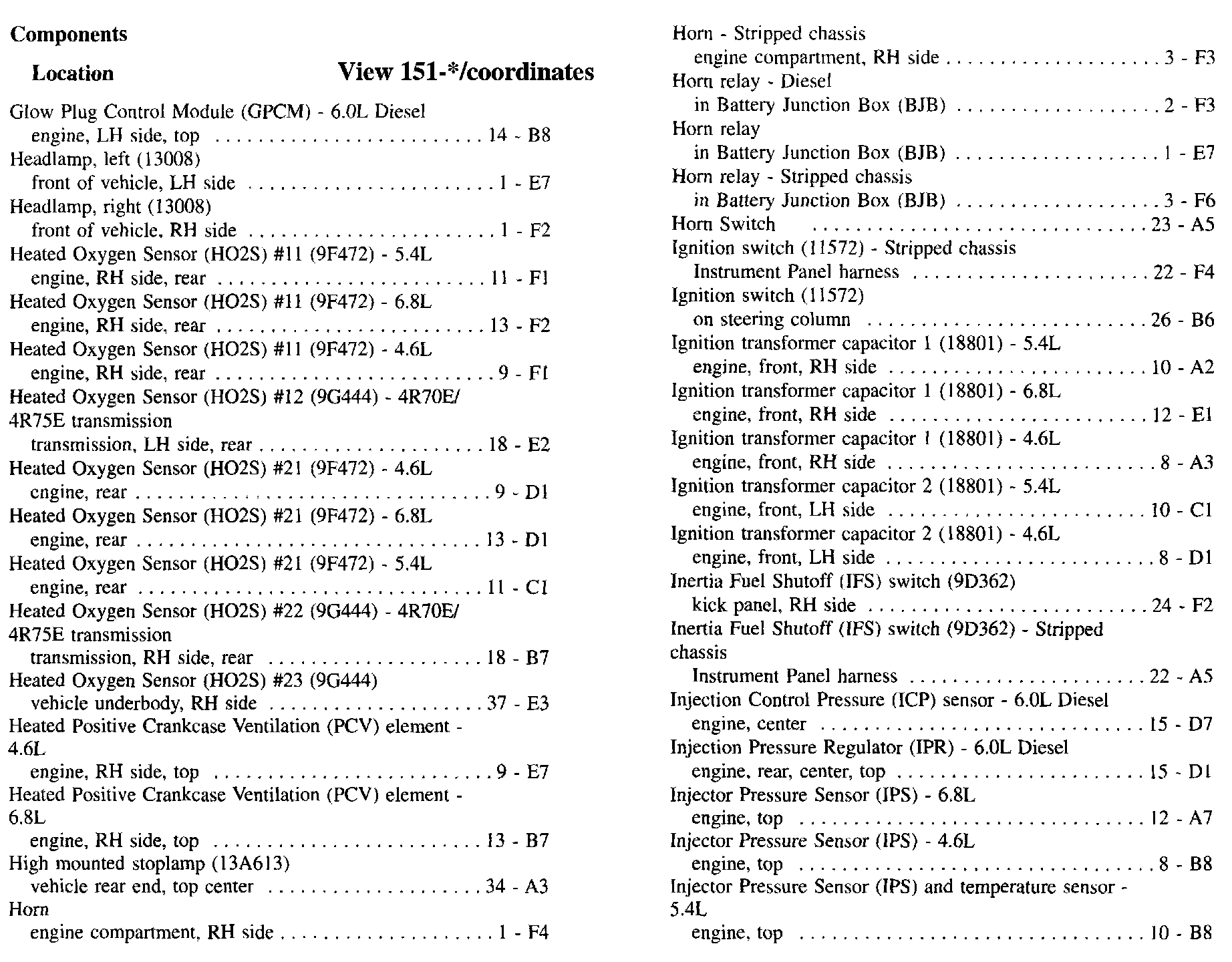

Gl-In:

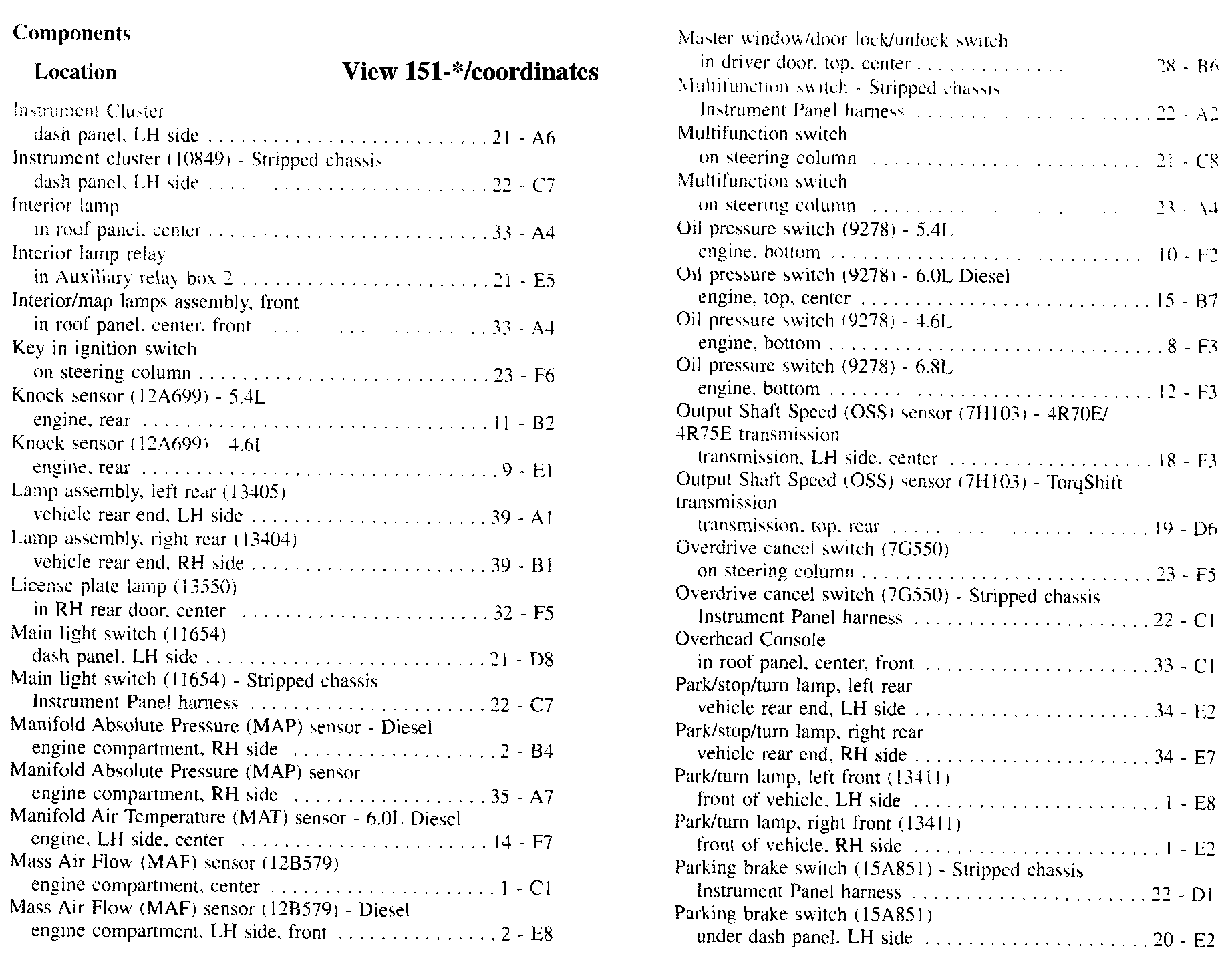

In-Pa:
Pa-Sp:

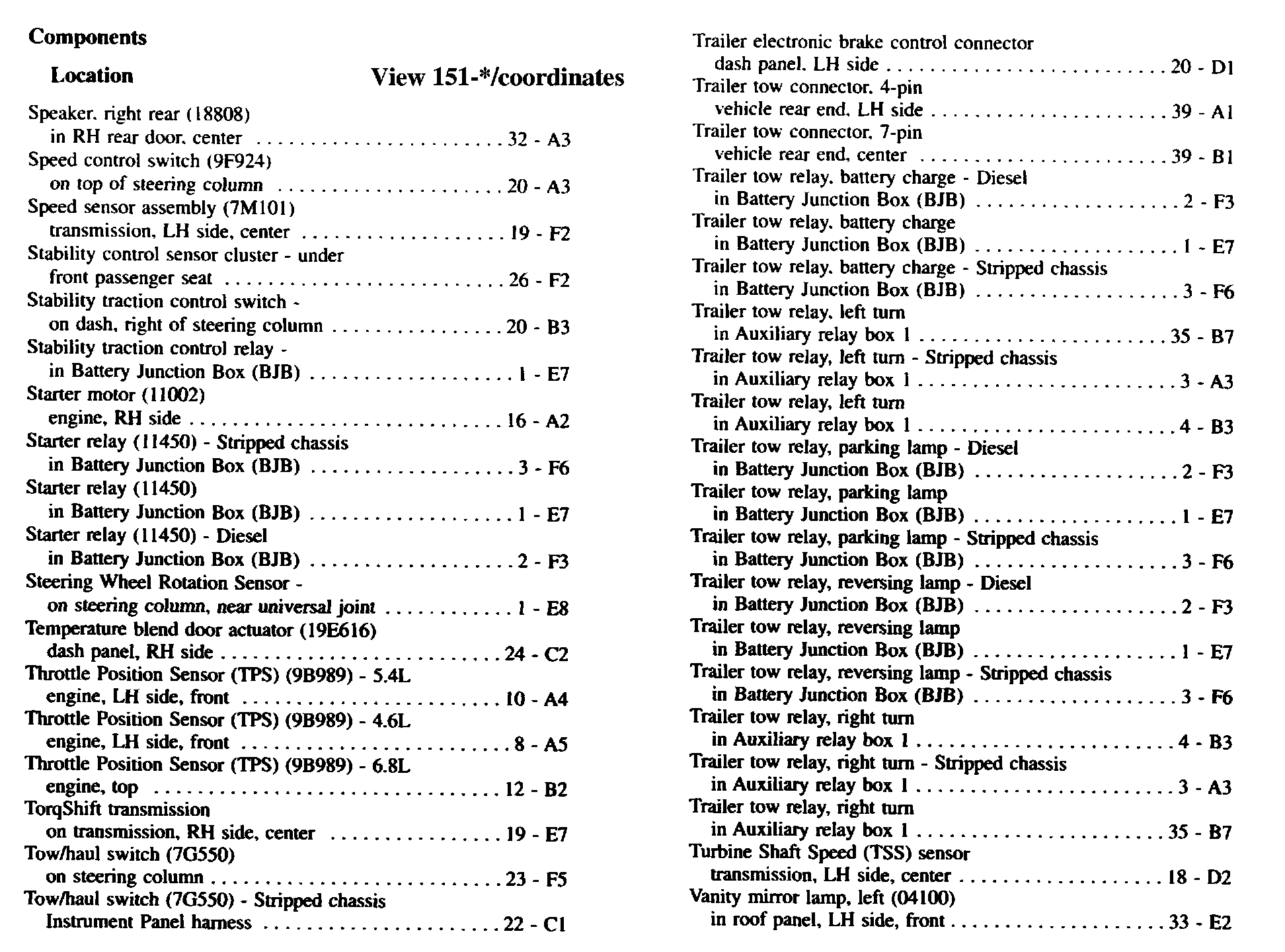

Sp-Va:
Va-Wi:
