Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE SMART JUNCTION BOX (SJB)

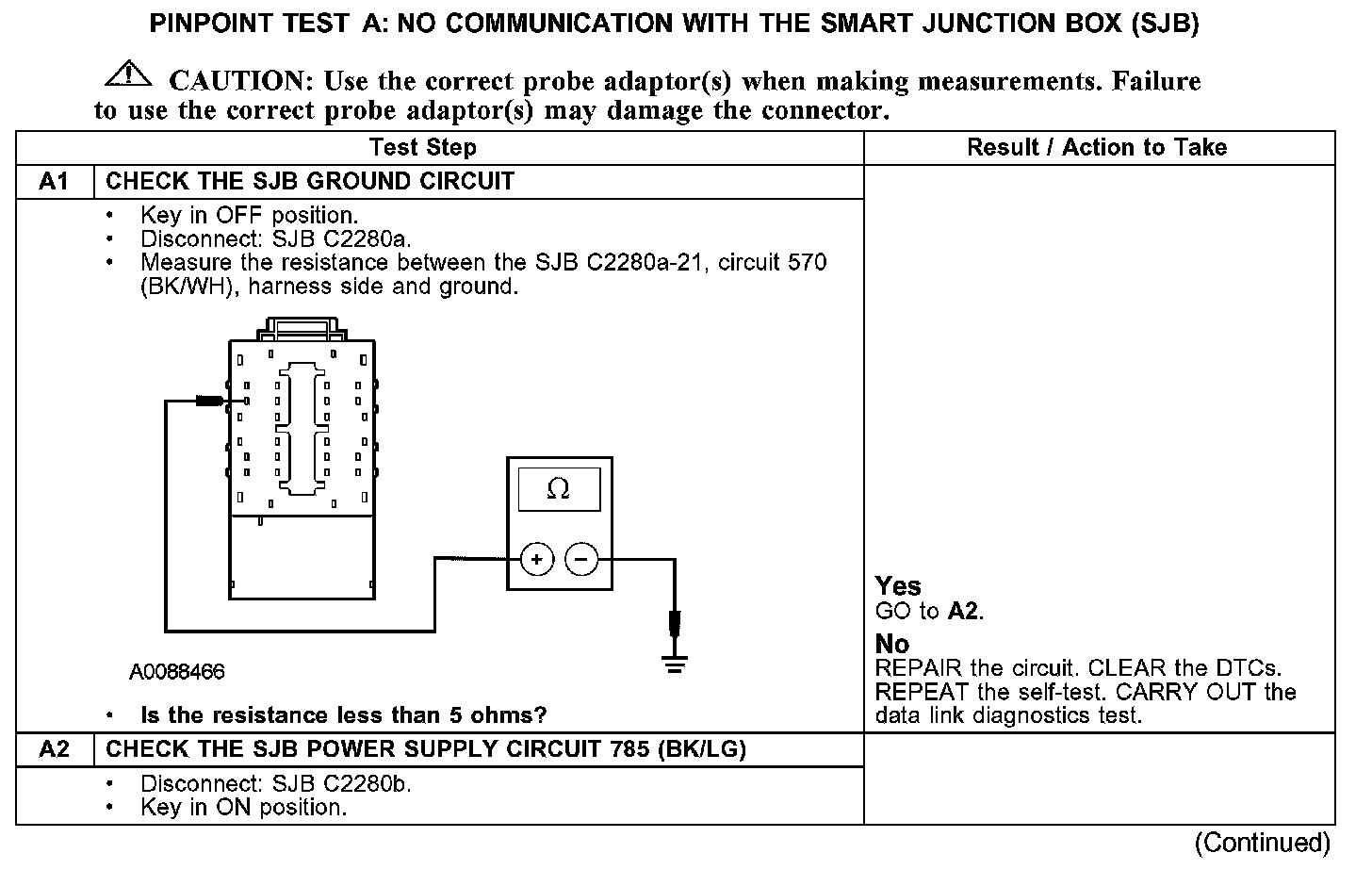

A1-A2:

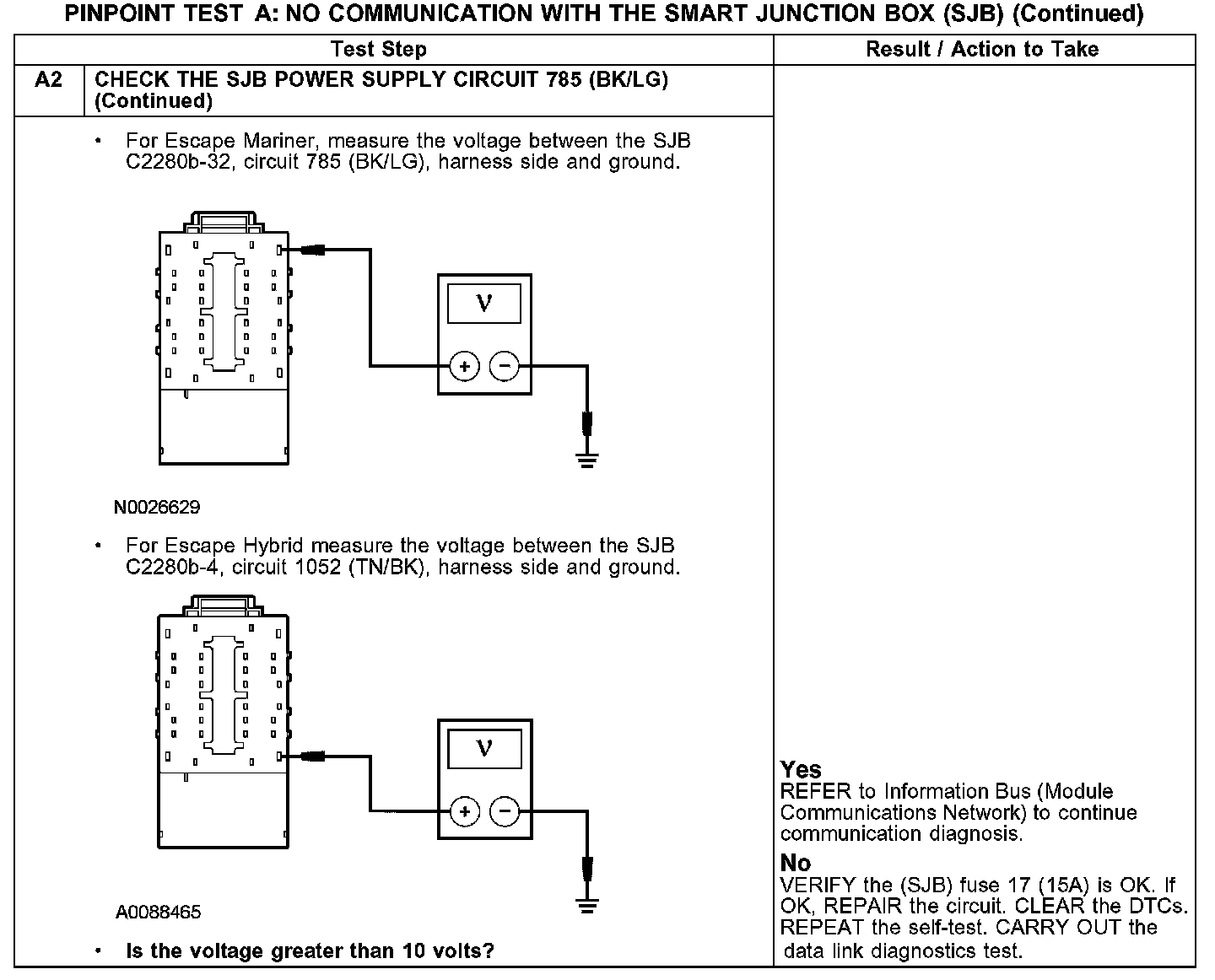

A2 Continued:

Normal Operation
The SJB receives power on circuit 785 (BK/LG) or circuit 1052 (TN/BK) on the Escape Hybrid. The SJB receives the ground on circuit 570 (BK/WH).

Possible Causes
- fuse
- circuit 570 (BK/WH) open
- circuit 785 (BK/LG) open
- circuit 1052 (TN/BK) open
- SJB
