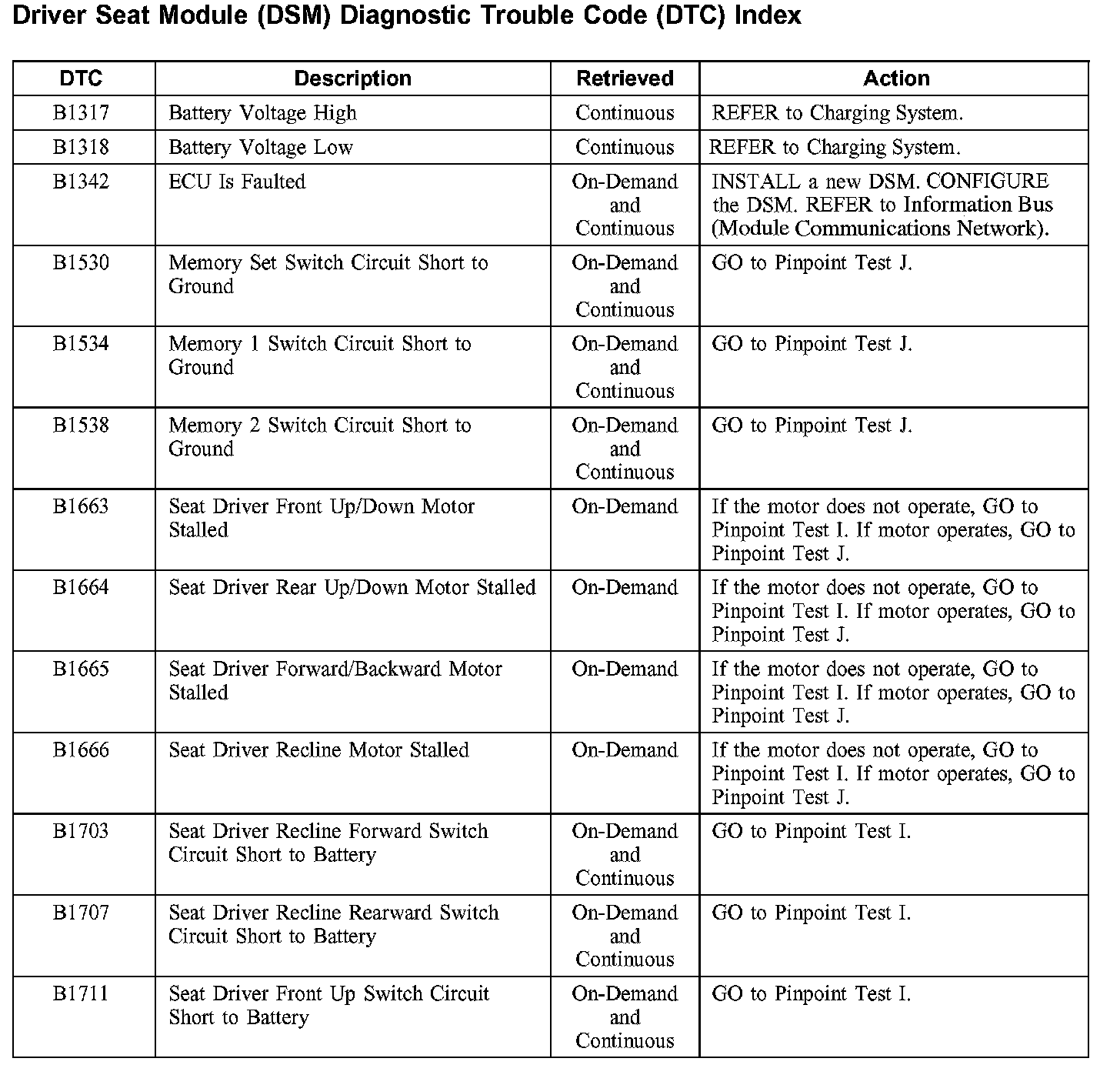

Driver Seat Module (DSM) Diagnostic Trouble Code (DTC) Index
B1317-B1711:

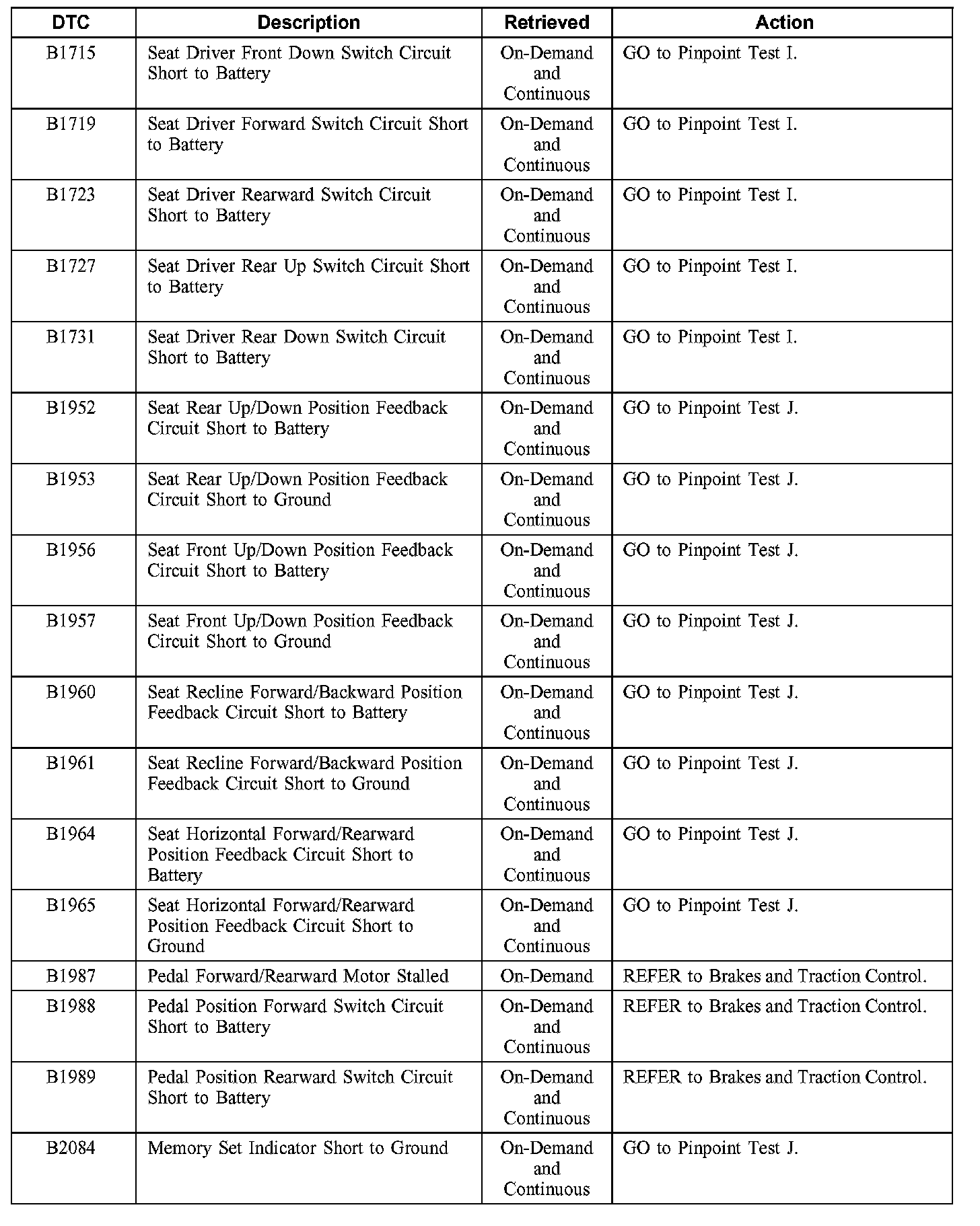

B1715-B2084:

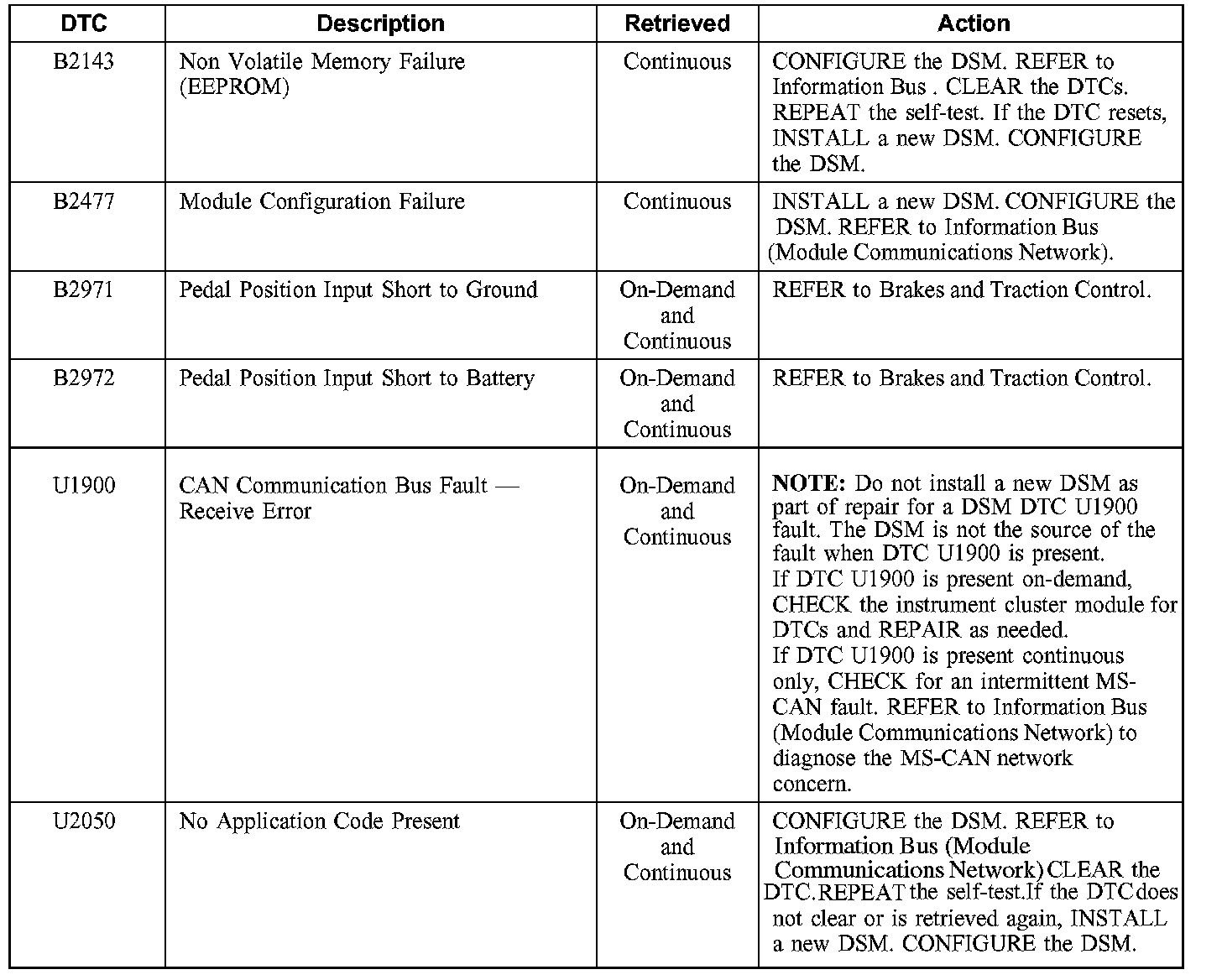

B2143-B2972 / U1900-U2050:
