Explorer 4WD V8-4.6L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>
Wheel Speed Sensor, Right Rear
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

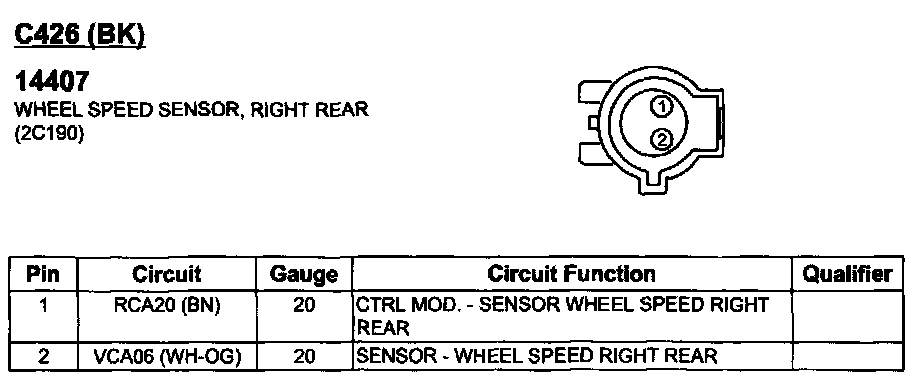

Wheel Speed Sensor, Right Rear
C426:
