Final Drive: Assembly

NOTE: If excessive wobble or rotational binding or damage is found, a new final drive planet and carrier will need to be installed.

Inspect the differential pinion and side gears for looseness, discoloration, cracks or excessive gear wear.
1. Inspect the final drive planet gears.
2. Inspect the pinion shaft bores.

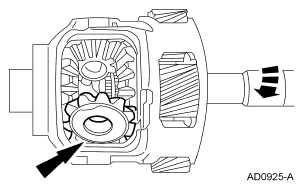

  Fig 1: Identifying Differential Pinion And Side Gears
  Courtesy of FORD MOTOR CO.
Install the differential side gear and differential side gear thrust washer.
1. Install the differential side gear and differential side gear thrust washer.
2. Install the output shaft.
3. Install the retaining ring.

  Fig 2: Locating Differential Side Gear And Differential Side Gear Thrust Washer
  Courtesy of FORD MOTOR CO.
Install the differential side gear and differential side gear thrust washer.

Fig 3: Locating Differential Side Gear And Differential Side Gear Thrust Washer
Courtesy of FORD MOTOR CO.
Install the differential pinion gears and differential pinion thrust washers.

Fig 4: Installing Differential Pinion Gears And Differential Pinion Thrust Washers
Courtesy of FORD MOTOR CO.
Install the differential pinion shaft.

Fig 5: Locating Differential Pinion Shaft
Courtesy of FORD MOTOR CO.
Install the differential pinion shaft roll pin.

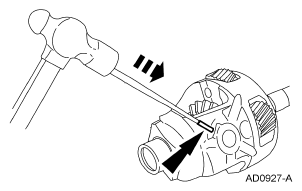

Fig 6: Locating Differential Pinion Shaft Roll Pin
Courtesy of FORD MOTOR CO.
Install the final drive sun gear and deflector assembly.

Fig 7: Locating Final Drive Sun Gear And Deflector Assembly
Courtesy of FORD MOTOR CO.
Install the park gear.

Fig 8: Locating Park Gear
Courtesy of FORD MOTOR CO.
Install the No. 16 final drive gear front thrust bearing.

Fig 9: Locating Final Drive Gear Front Thrust Bearing
Courtesy of FORD MOTOR CO.
Install new retaining circle clips.

Fig 10: Locating Retaining Circle Clips
Courtesy of FORD MOTOR CO.
Install the low intermediate clutch piston and rear planet support.

Fig 11: Locating Intermediate Clutch Piston And Rear Planet Support
Courtesy of FORD MOTOR CO.
