Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index

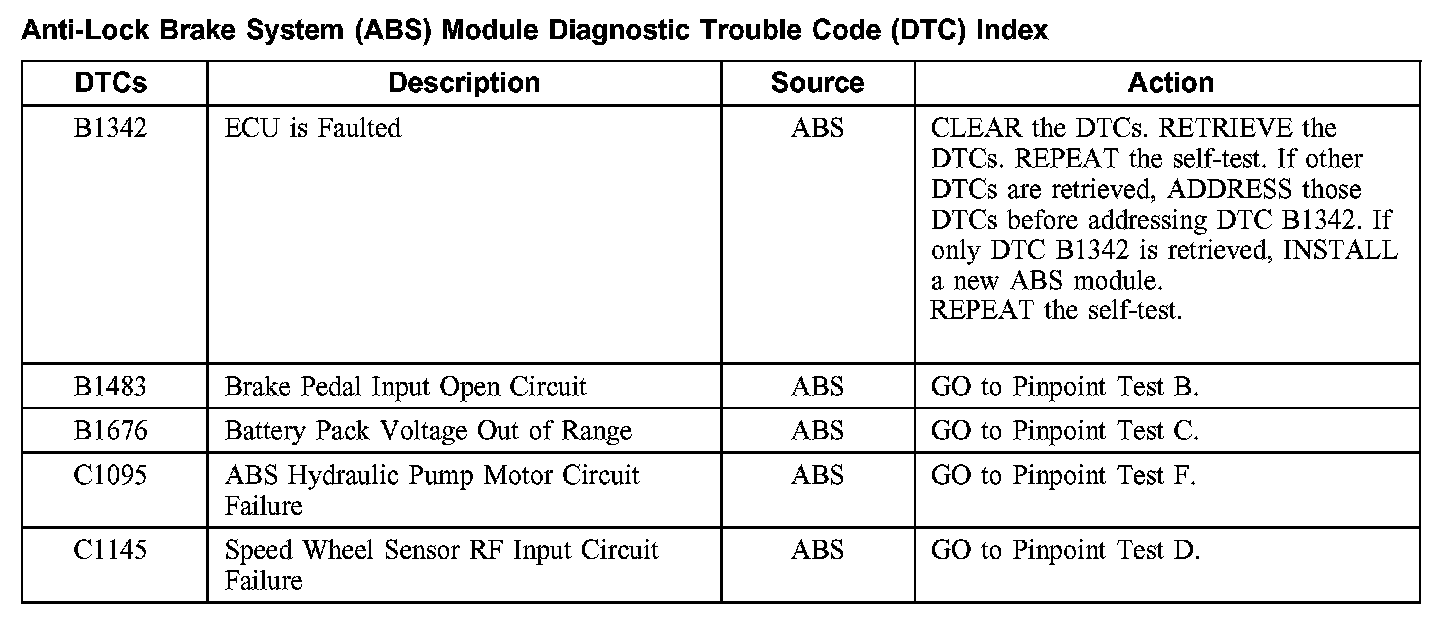

B1342-C1145:

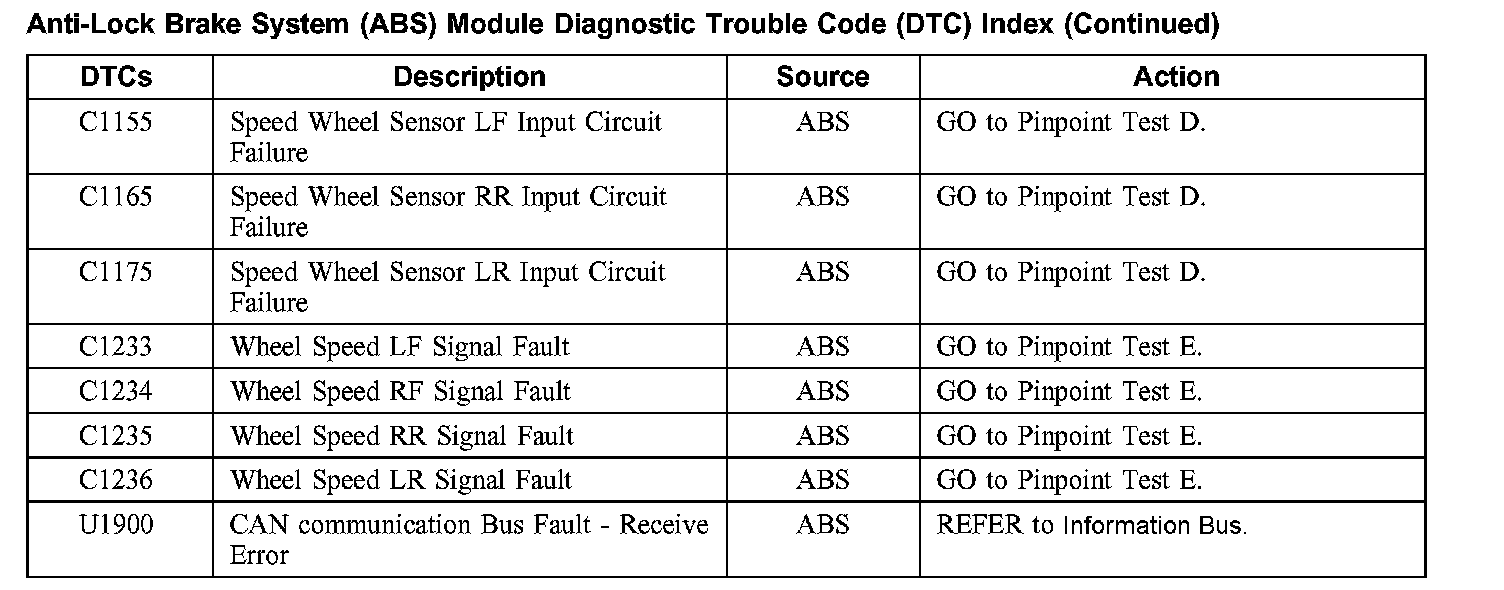

C1155-U1900:





For a complete master list of ABS DTCs, refer to Body Control Systems (Multifunction Electronic Control Module).
