Engine Ignition Components - Exploded View

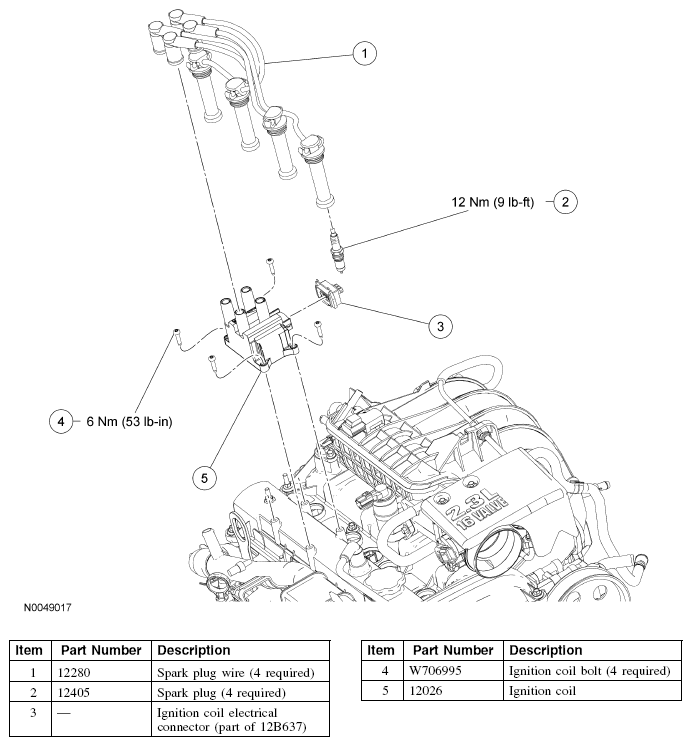

Fig 1: Engine Ignition Components - Exploded View With Torque Specifications
G04701612Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
