Drive Belt

Front End Accessory Drive (FEAD) - Exploded View

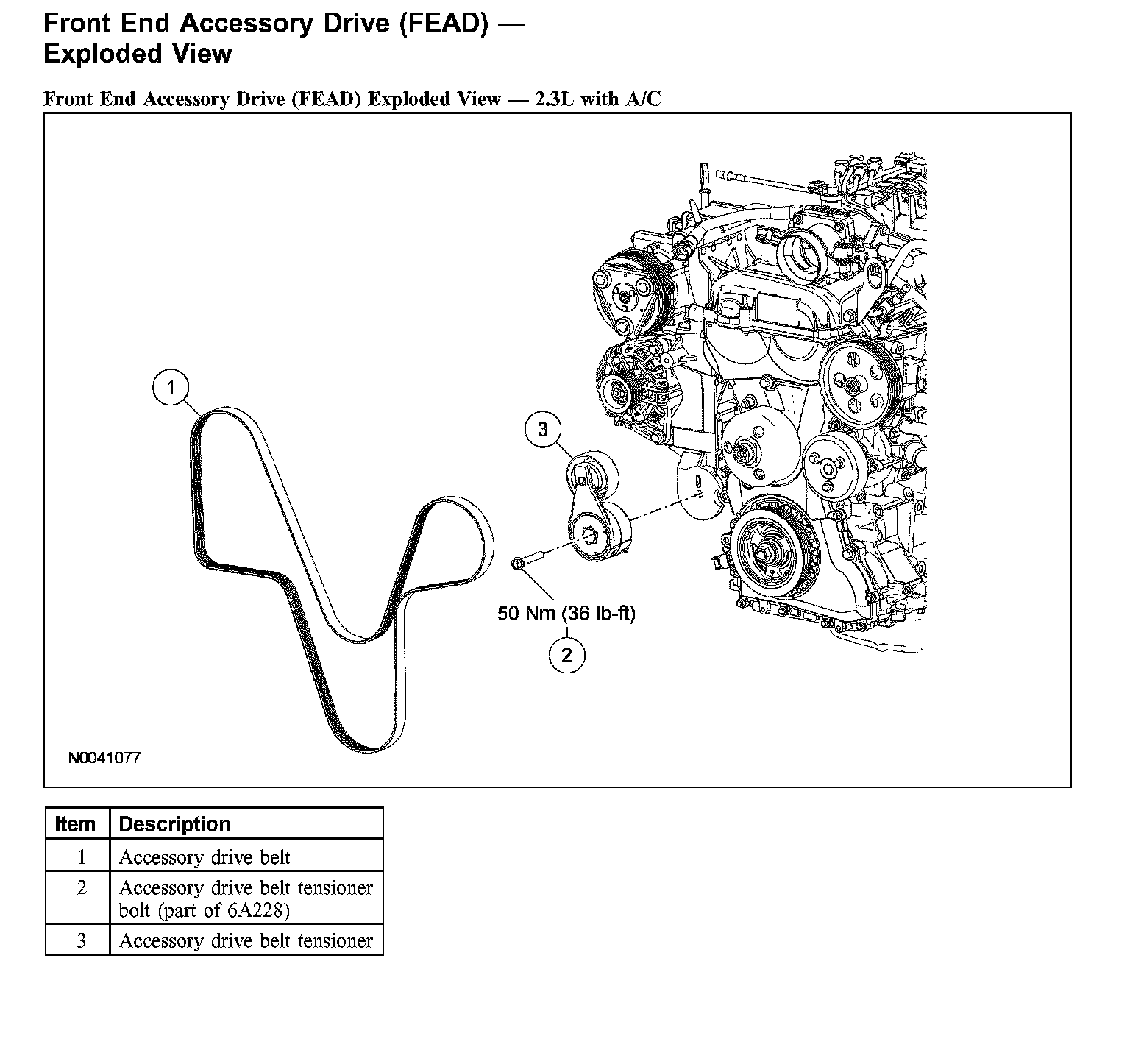

Front End Accessory Drive (FEAD) Exploded View - 2.3L With A/C:

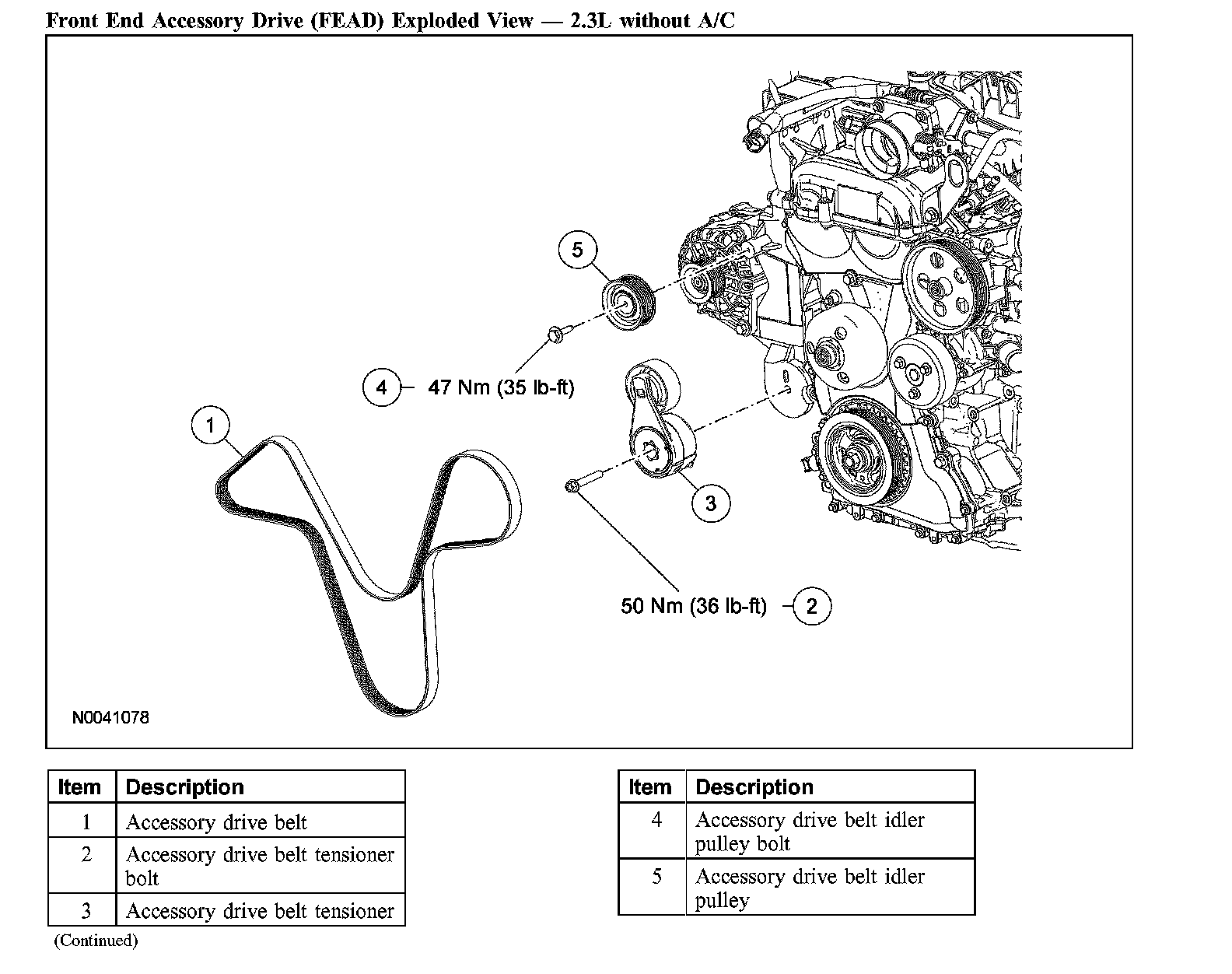

Front End Accessory Drive (FEAD) Exploded View - 2.3L Without A/C:

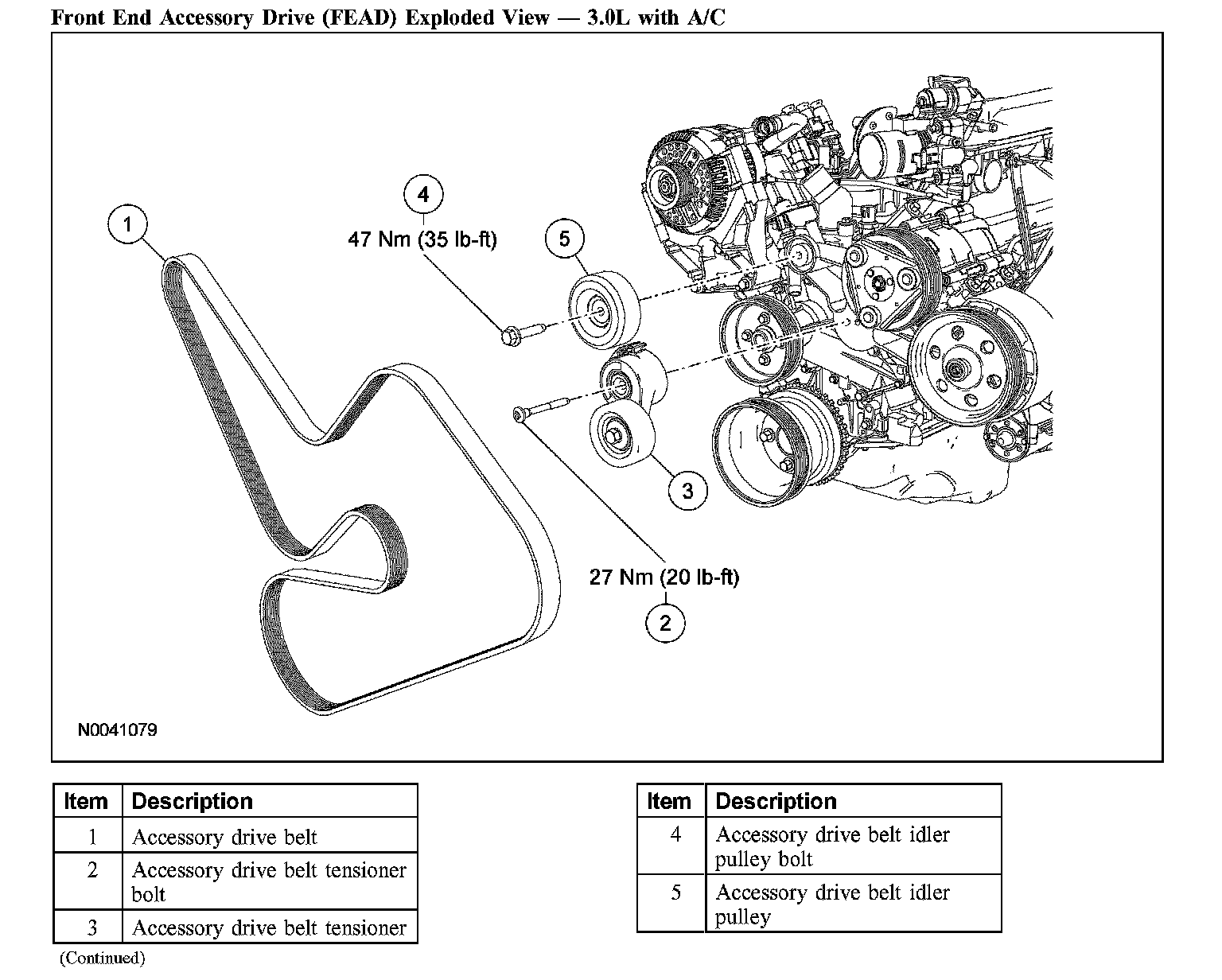

Front End Accessory Drive (FEAD) Exploded View - 3.0L With A/C:

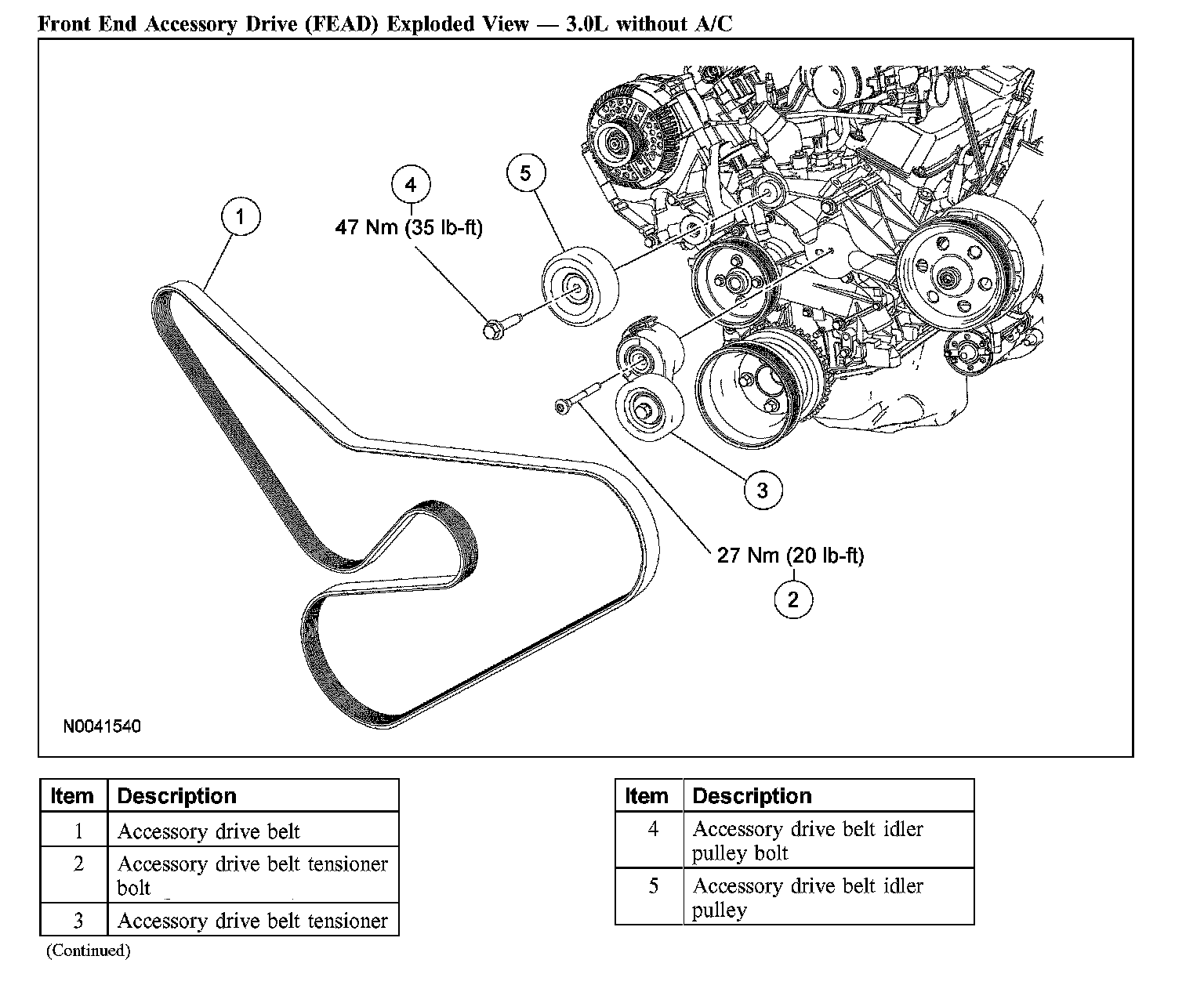

Front End Accessory Drive (FEAD) Exploded View - 3.0L Without A/C:

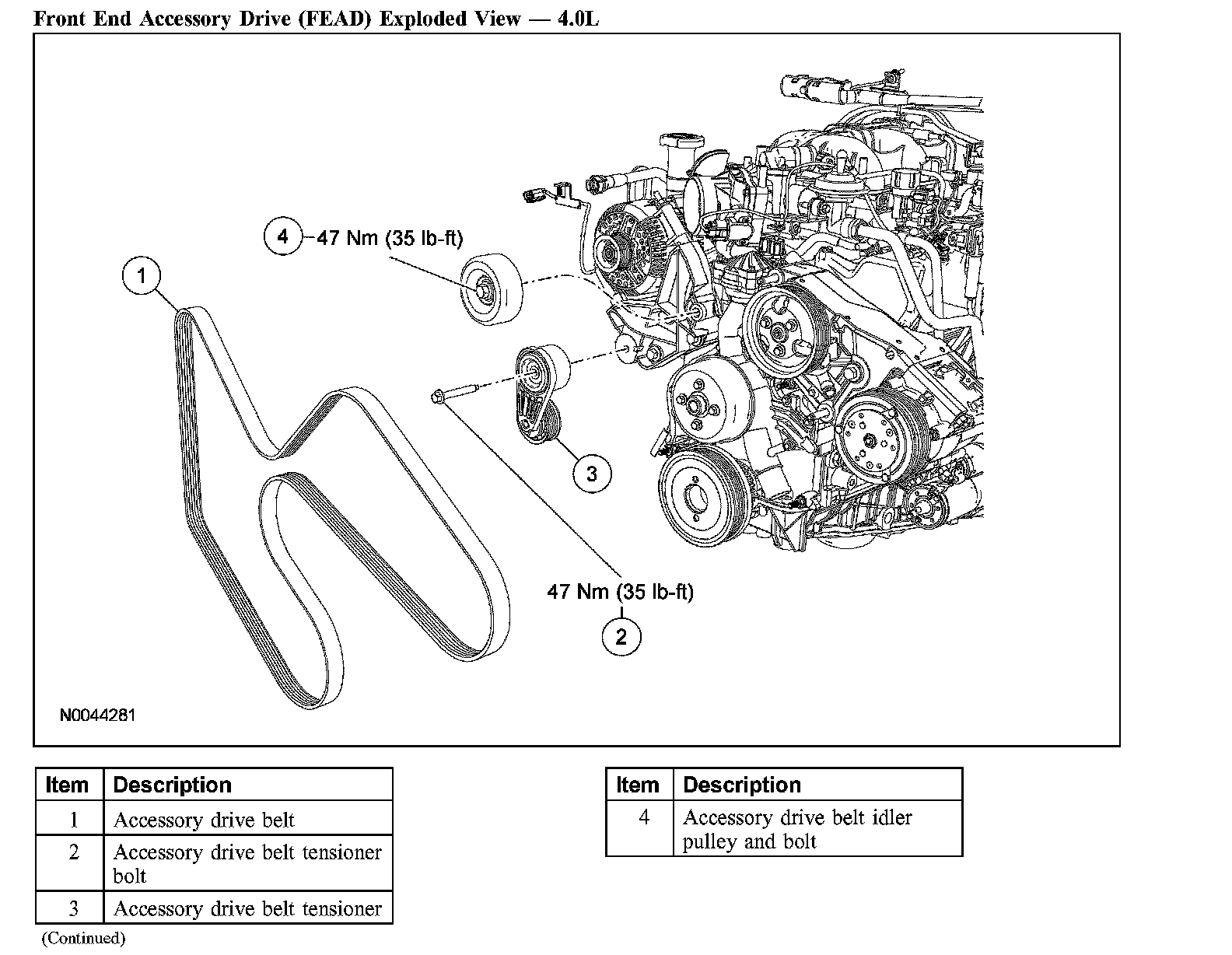

Front End Accessory Drive (FEAD) Exploded View - 4.0L:
