Spark Plug: Service and Repair

SPARK PLUGS

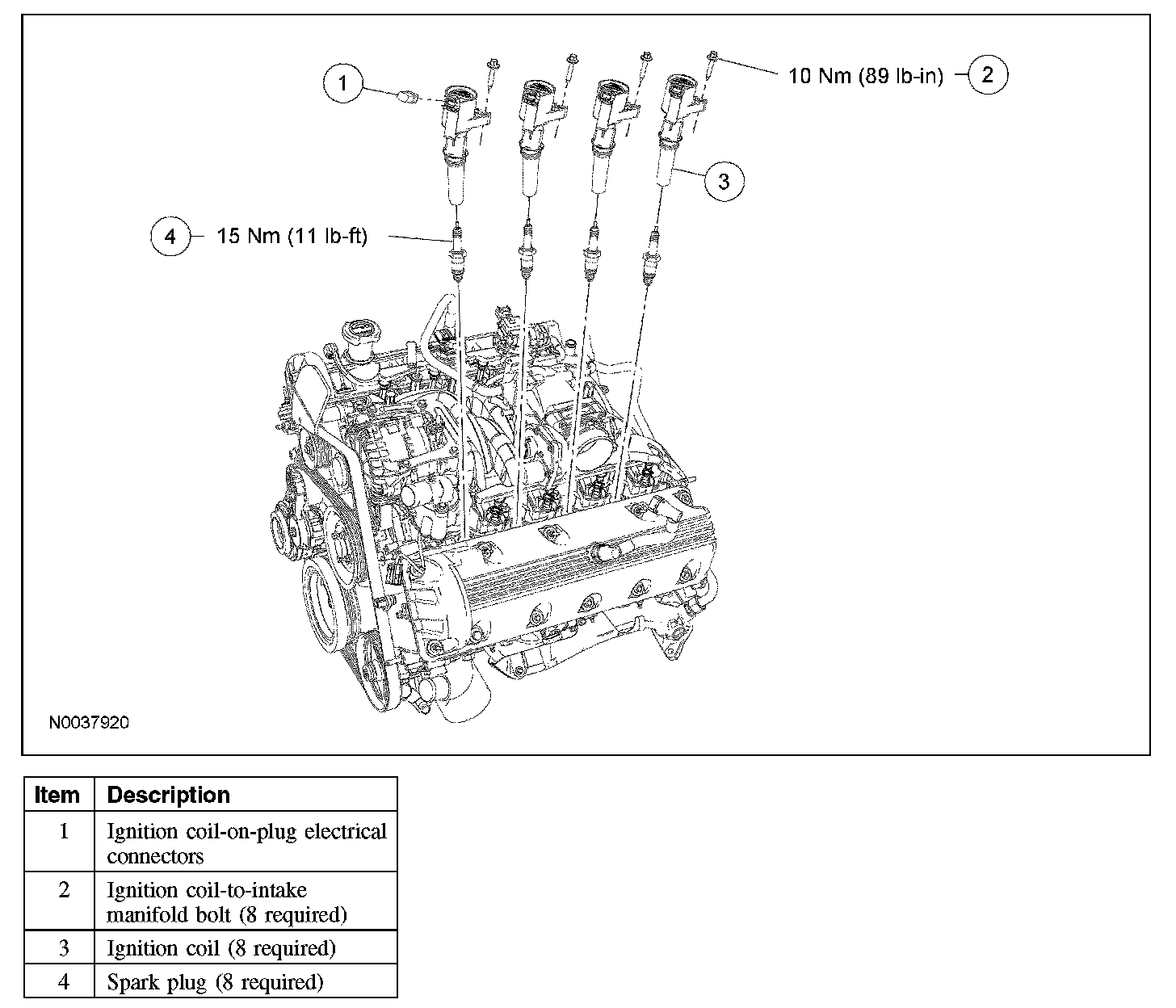

Exploded View

Removal and Installation
1. Remove the ignition coil-on-plugs.

2. NOTE: Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

Remove the spark plugs.
- To install, tighten to 15 Nm (11 lb-ft).

3. Inspect the spark plugs.







4. To install, reverse the removal procedure.
- Adjust the spark plug gap as required.
