Exhaust System - Exploded View

NOTE: 5.4L Shown, 4.6L and 6.8L similar.

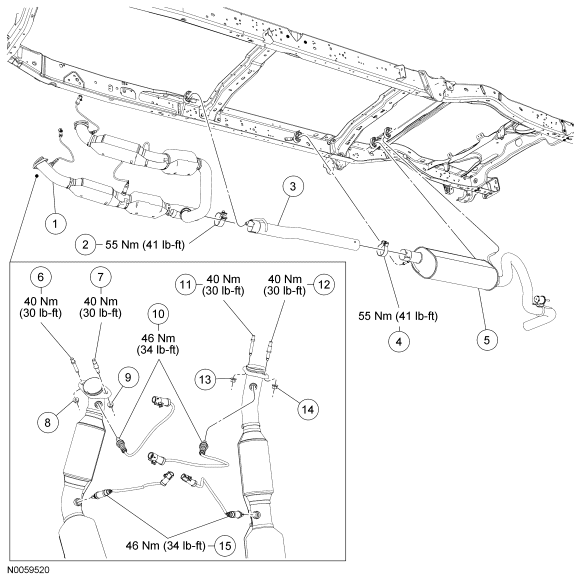

Fig 1: Exploded View Of Exhaust System - Gasoline Van/Wagon With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5F250	Exhaust Y-pipe
2	5A281	Torca® clamp
3	5A212	Exhaust intermediate pipe
4	5A281	Torca® clamp
5	5230	Muffler and tailpipe assembly
6	W705374	Exhaust manifold stud
7	W712670	Exhaust manifold stud
8	W705443	Exhaust manifold-to-exhaust Y-pipe nut
9	W705443	Exhaust manifold-to-exhaust Y-pipe nut
10	9F472	Heated oxygen sensors (2 required)
11	W705374	Exhaust manifold stud
12	W712670	Exhaust manifold stud
13	W705443	Exhaust manifold-to-exhaust Y-pipe nut
14	W705443	Exhaust manifold-to-exhaust Y-pipe nut
15	9G444	Catalyst monitor sensors (2 required)

NOTE: 5.4L shown, 6.8L similar.

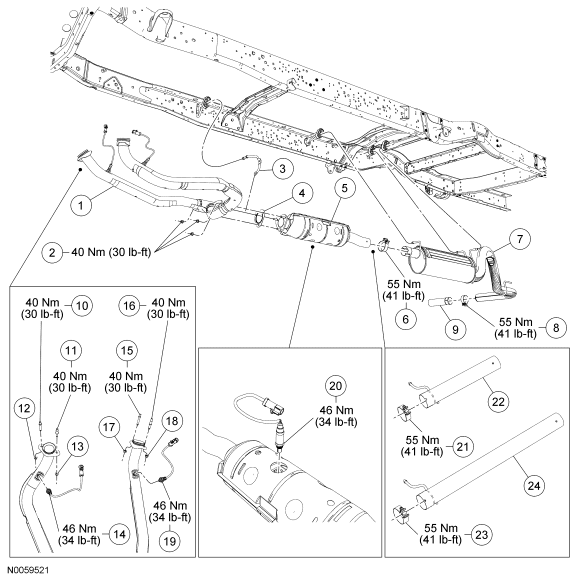

Fig 2: Exploded View Of Exhaust System - Gasoline Stripped Chassis With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5246	Exhaust Y-pipe
2	W705443	Exhaust Y-pipe-to-catalytic converter nuts (3 required)
3	5D217	Exhaust Y-pipe-to-catalytic converter support bracket
4	5C226	Exhaust Y-pipe-to-converter gasket
5	5E212	Catalytic converter
6	5A281	Torca® clamp
7	5230	Muffler and tailpipe assembly
8	5A281	Torca® clamp
9	5202	Tailpipe extension (if equipped)
10	W705374	Exhaust manifold-to-exhaust Y-pipe stud
11	W712670	Exhaust manifold-to-exhaust Y-pipe stud
12	W705443	Exhaust manifold-to-exhaust Y-pipe nut
13	W705443	Exhaust manifold-to-exhaust Y-pipe nut
14	9F472	Heated oxygen sensor
15	W705374	Exhaust manifold-to-exhaust Y-pipe stud
16	W712670	Exhaust manifold-to-exhaust Y-pipe stud
17	W705443	Exhaust manifold-to-exhaust Y-pipe nut
18	W705443	Exhaust manifold-to-exhaust Y-pipe nut
19	9F472	Heated oxygen sensor
20	9G444	Catalyst monitor sensor
21	5A281	Torca® clamp
22	5A212	Extension pipe (158-inch wheelbase)
23	5A281	Torca® clamp
24	5A212	Extension pipe (176-inch wheelbase)

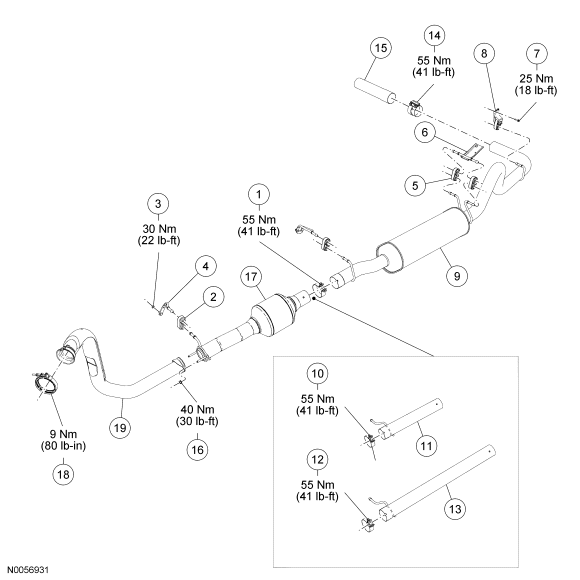

Fig 3: Exploded View Of Exhaust System - Diesel With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5A281	Torca® clamp
2	-	Exhaust system hanger isolator (2 required) (part of 5A242)
3	N620482	Exhaust system hanger retaining nut (6 required)
4	5A242	Exhaust system hanger (2 required)
5	-	Exhaust system hanger isolator (2 required) (part of 5A246)
6	5A246	Exhaust system hanger
7	390657	Exhaust system hanger retaining bolt
8	5261	Exhaust system hanger
9	5230	Muffler and tailpipe assembly
10	5A281	Torca® clamp
11	5A212	Extension pipe (158-inch wheelbase)
12	5A281	Torca® clamp
13	5A212	Extension pipe (176-inch wheelbase)
14	5A281	Torca® clamp
15	5202	Tailpipe extension (if equipped)
16	N620482	Exhaust downpipe-to-converter nut (2 required)
17	5E212	Catalytic converter
18	5A231	Turbocharger-to-exhaust downpipe clamp
19	6N646	Exhaust downpipe
