Tests QE: Electronic Throttle Control (ETC) System
PINPOINT TEST QE: ELECTRONIC THROTTLE CONTROL (ETC) SYSTEM

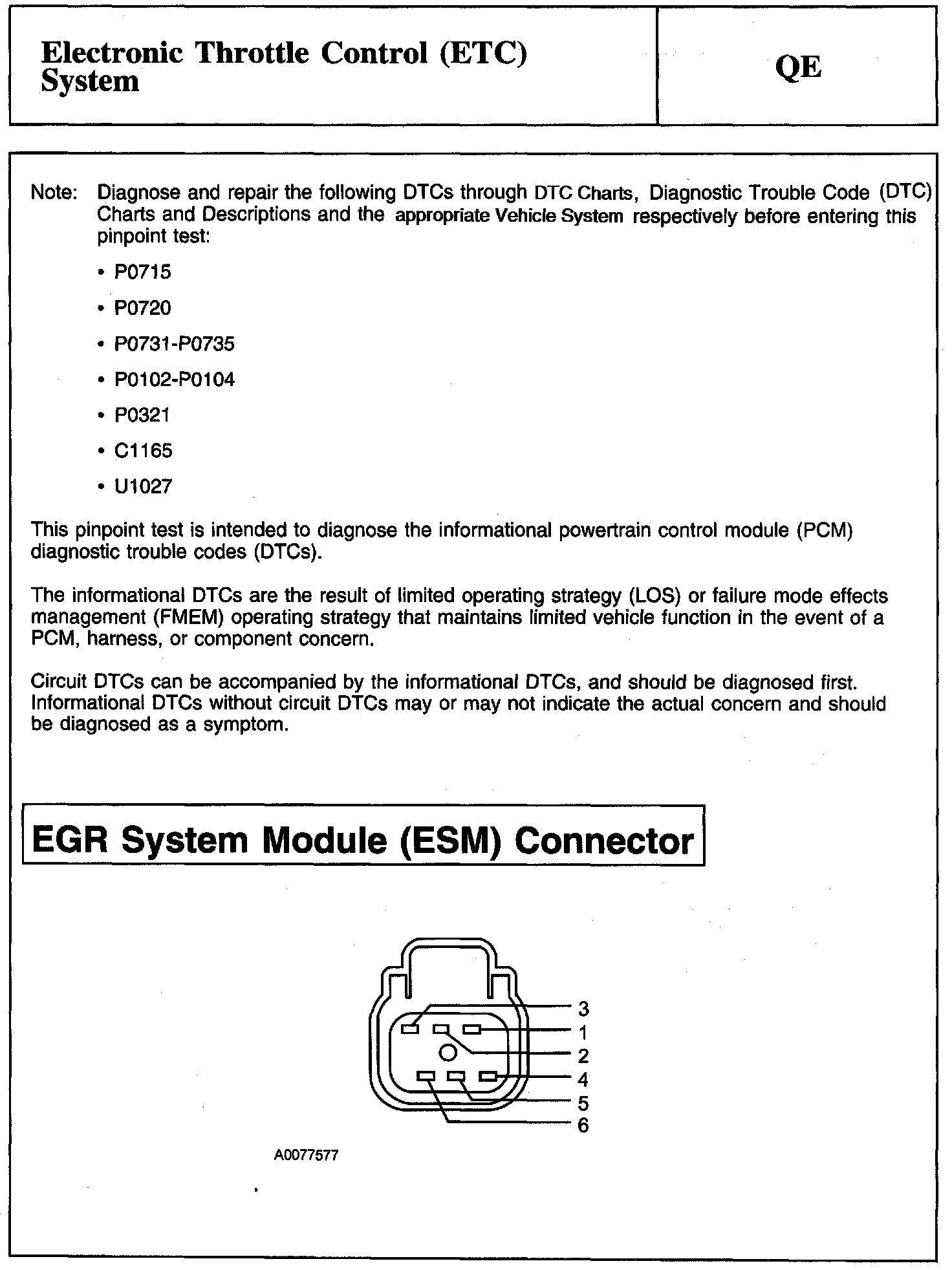

Note And EGR System Module (ESM) Connector:

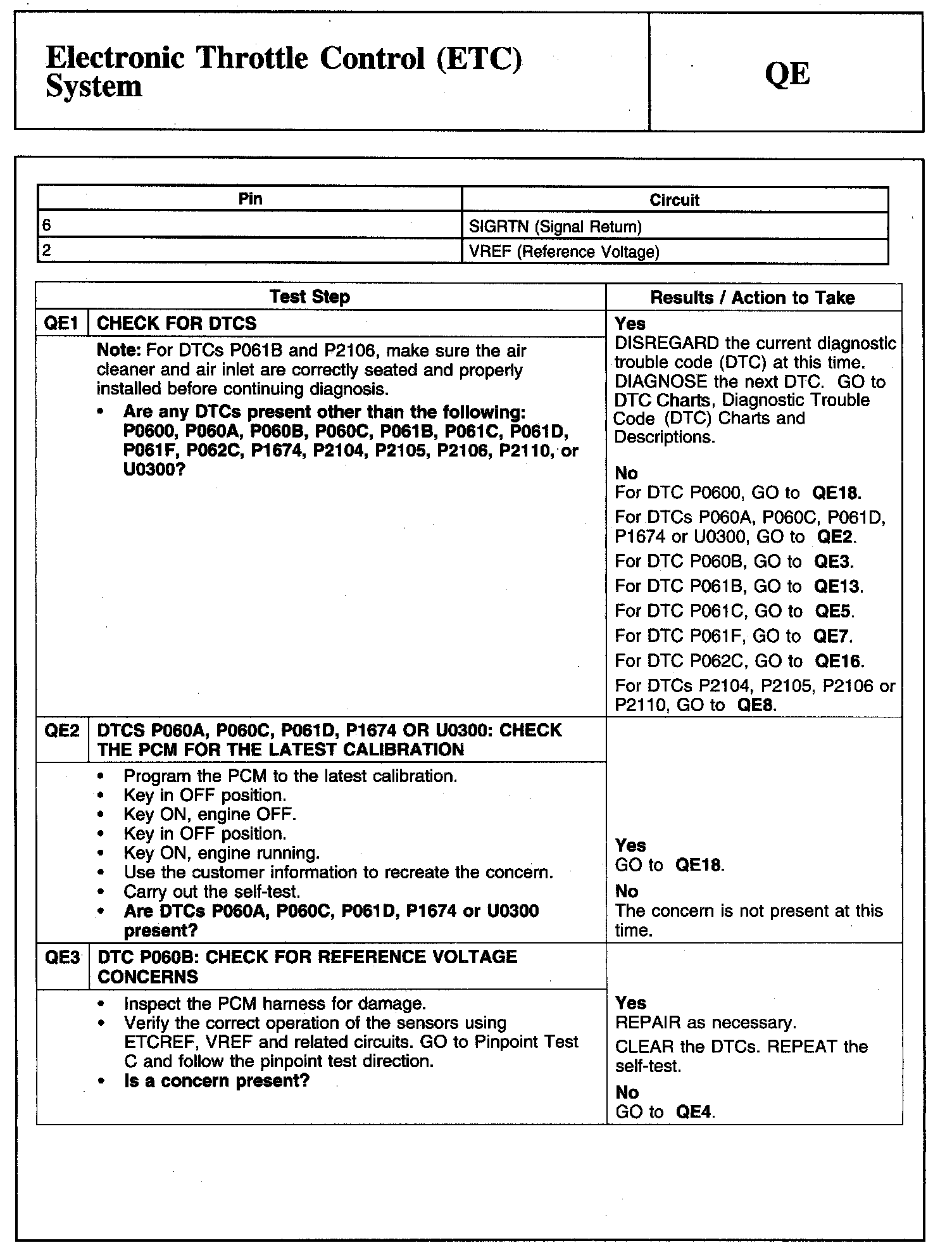

QE1-QE3:

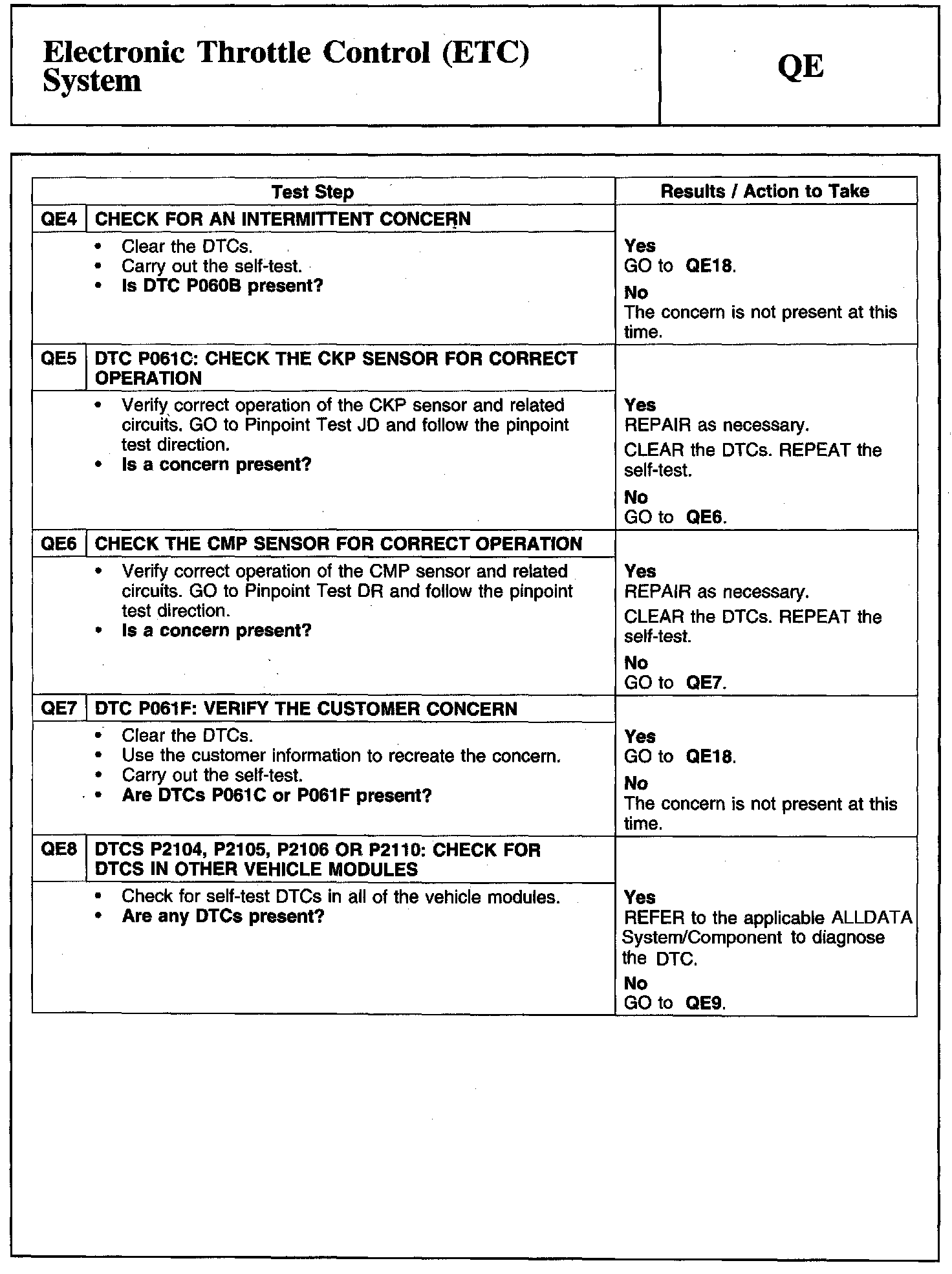

QE4-QE8:

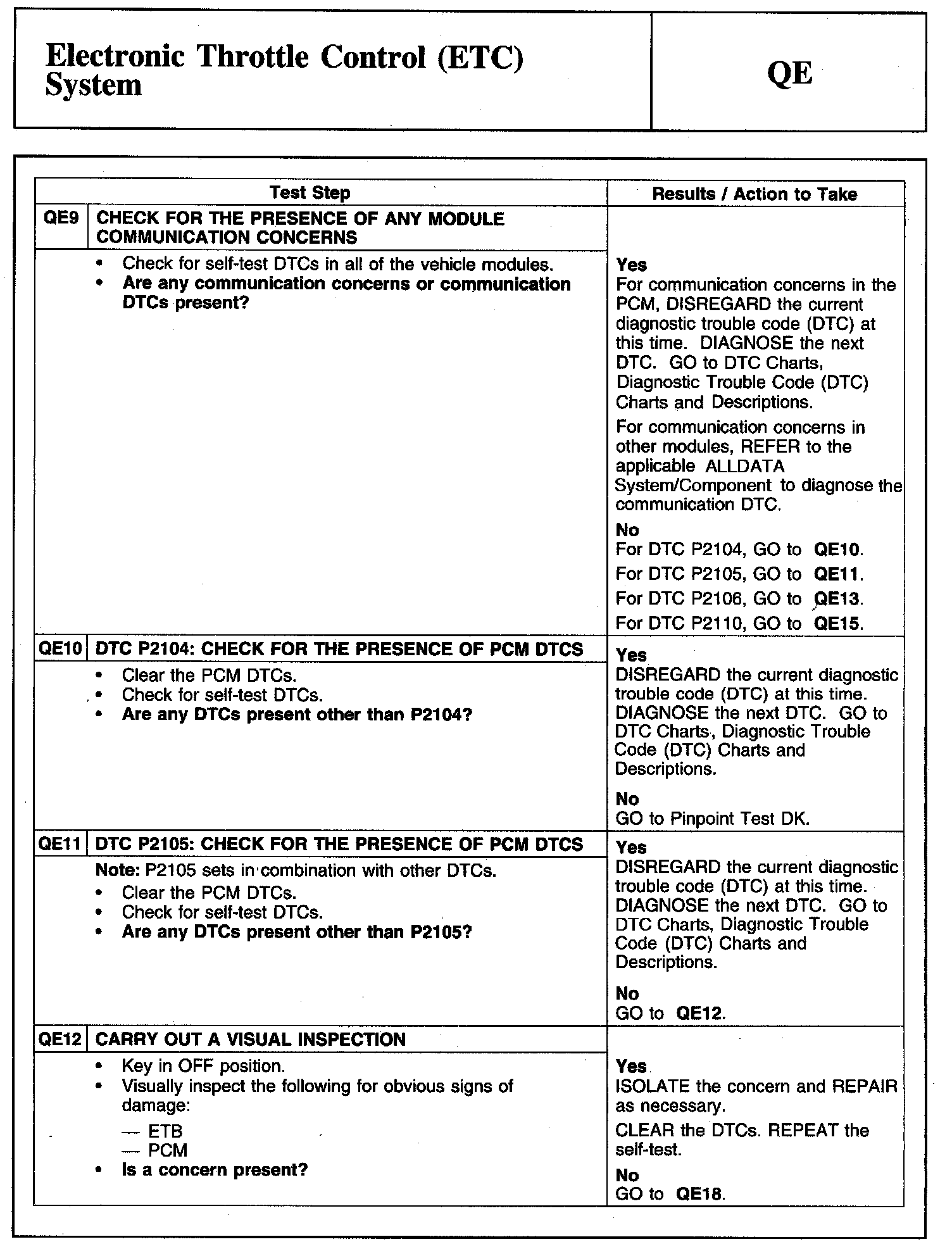

QE9-QE12:

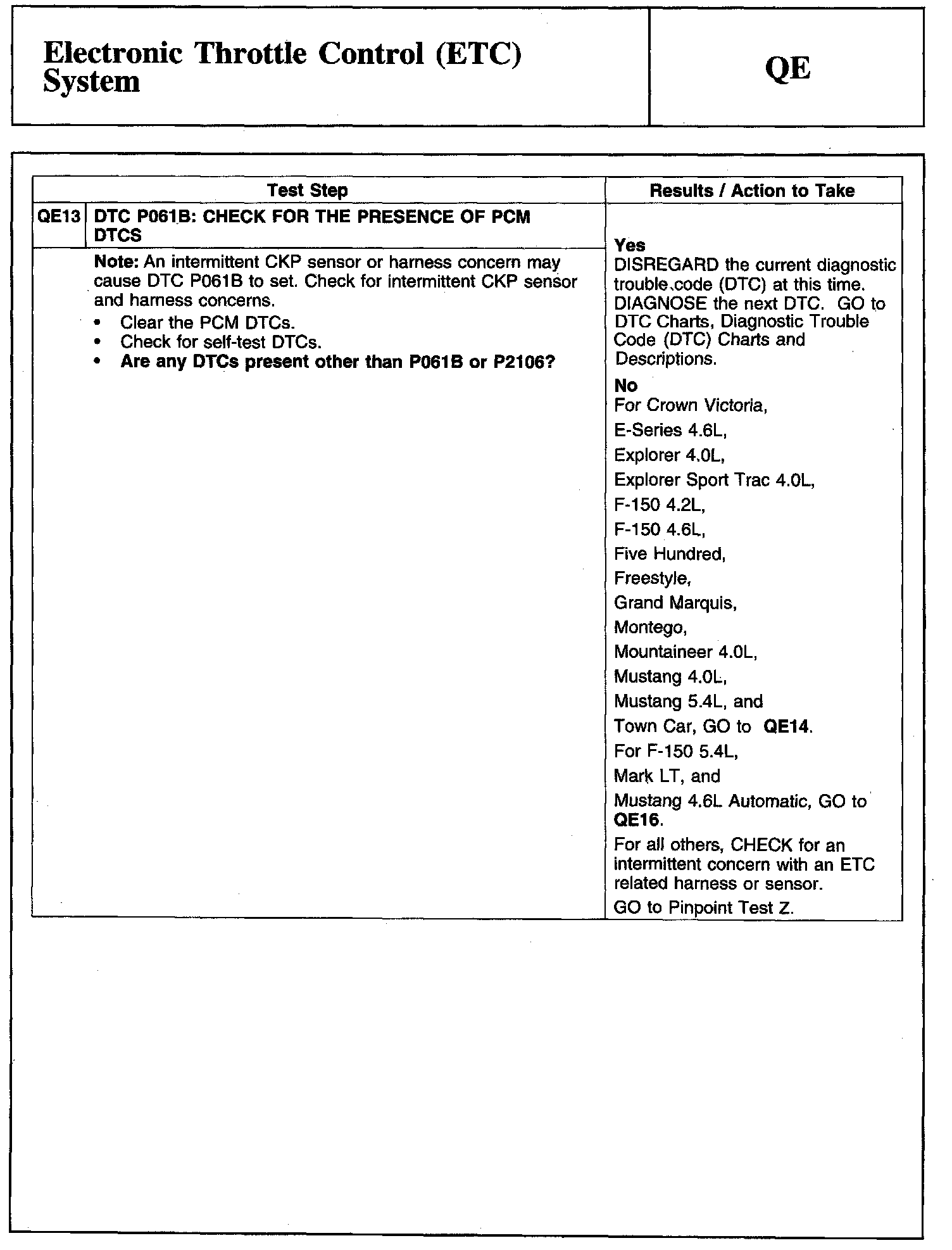

QE13:

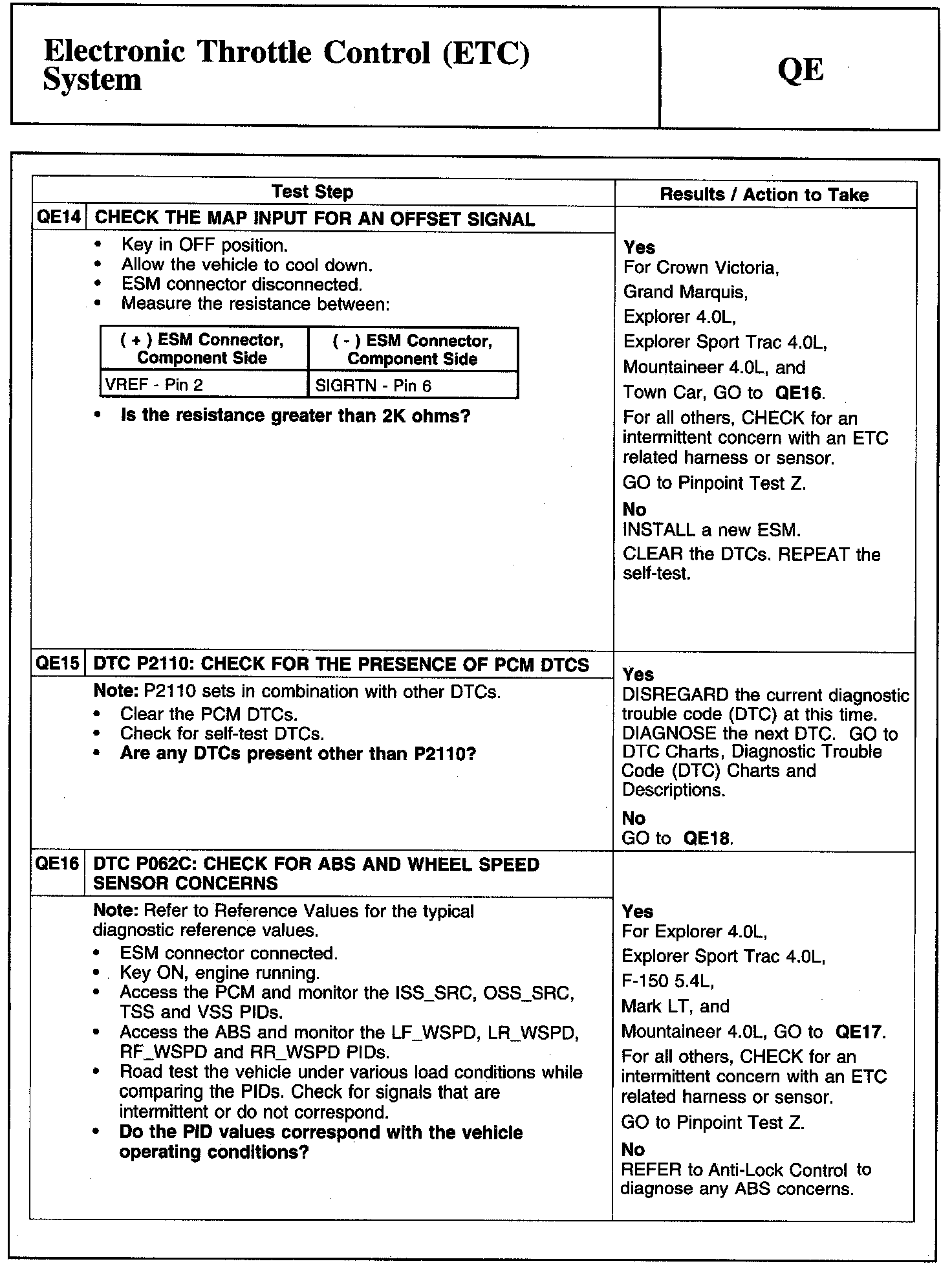

QE14-QE16:

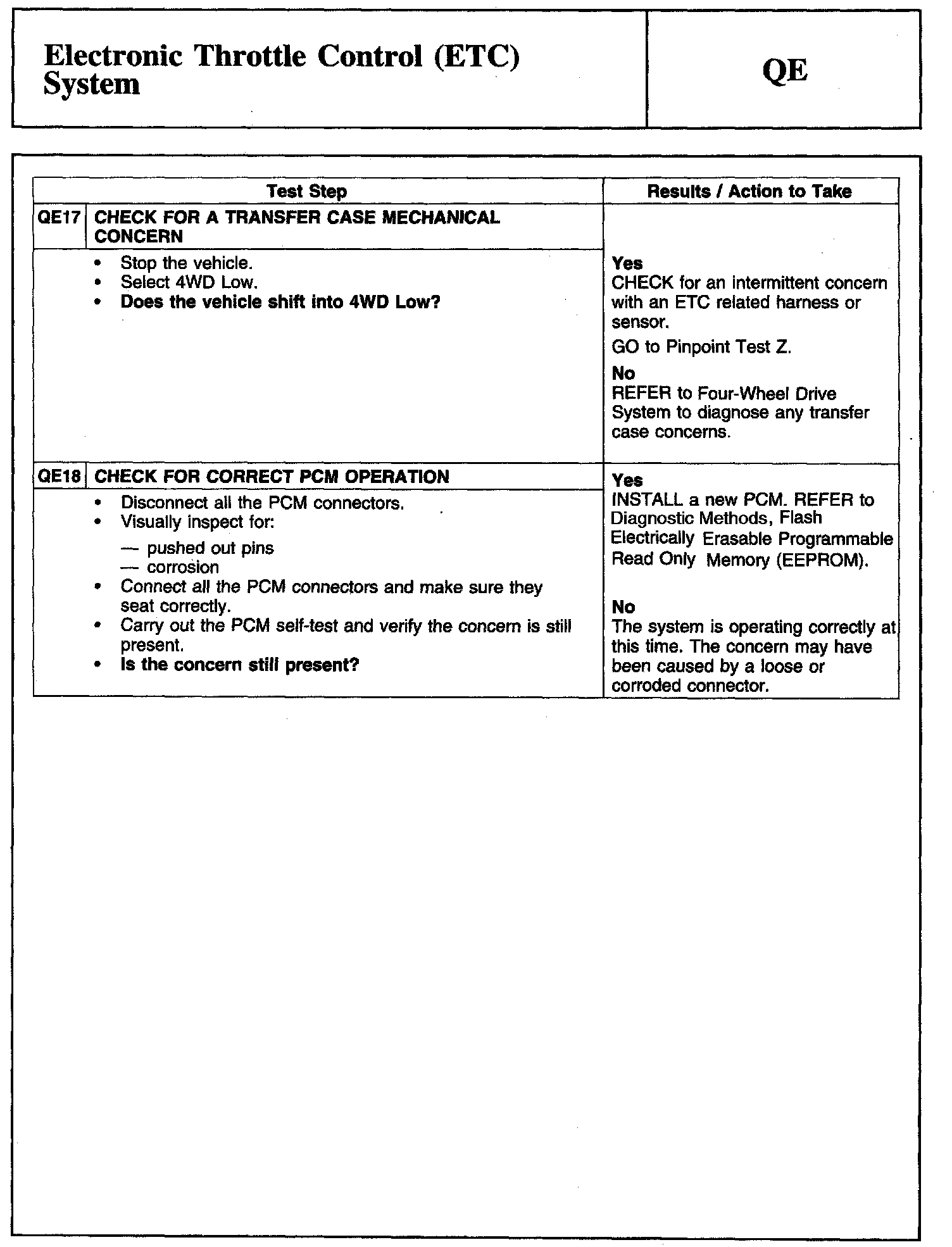

QE17-QE18:
