Engine Ignition Components - Exploded View

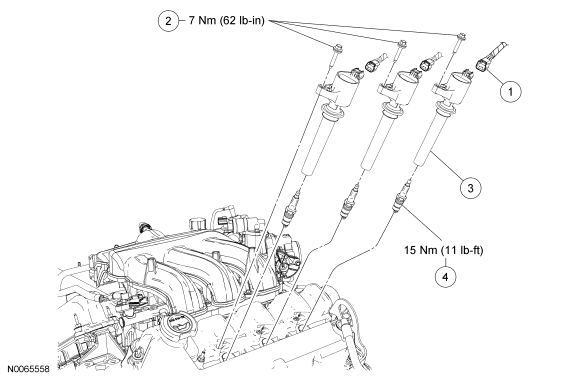

Fig 1: Exploded View Of Engine Ignition - RH With Torque Specifications
GF0024478Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 RH ignition coil-on-plug electrical connector (3 required)
2 W708833 RH ignition coil-to-valve cover bolts (3 required)
3 12029 RH ignition coil (3 required)
4 12405 RH spark plug (3 required)

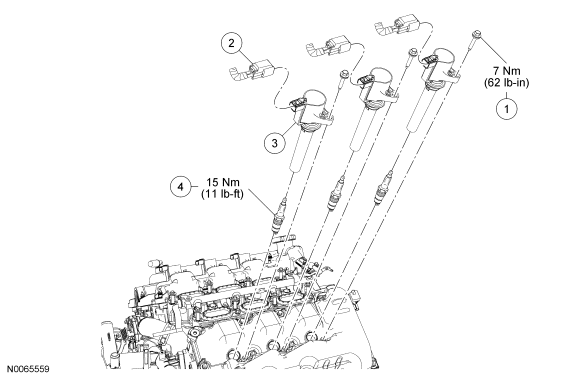

Fig 2: Exploded View Of Engine Ignition - LH With Torque Specifications
GF0024479Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708833 LH ignition coil-to-valve cover bolt (3 required)
2 14A464 LH ignition coil-on-plug electrical connector (3 required)
3 12029 LH ignition coil (3 required)
4 12405 LH spark plug (3 required)
  1. For additional information, refer to the following procedures.
