Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL







Removal and Installation
1. Remove the passive anti-theft system (PATS) transceiver.

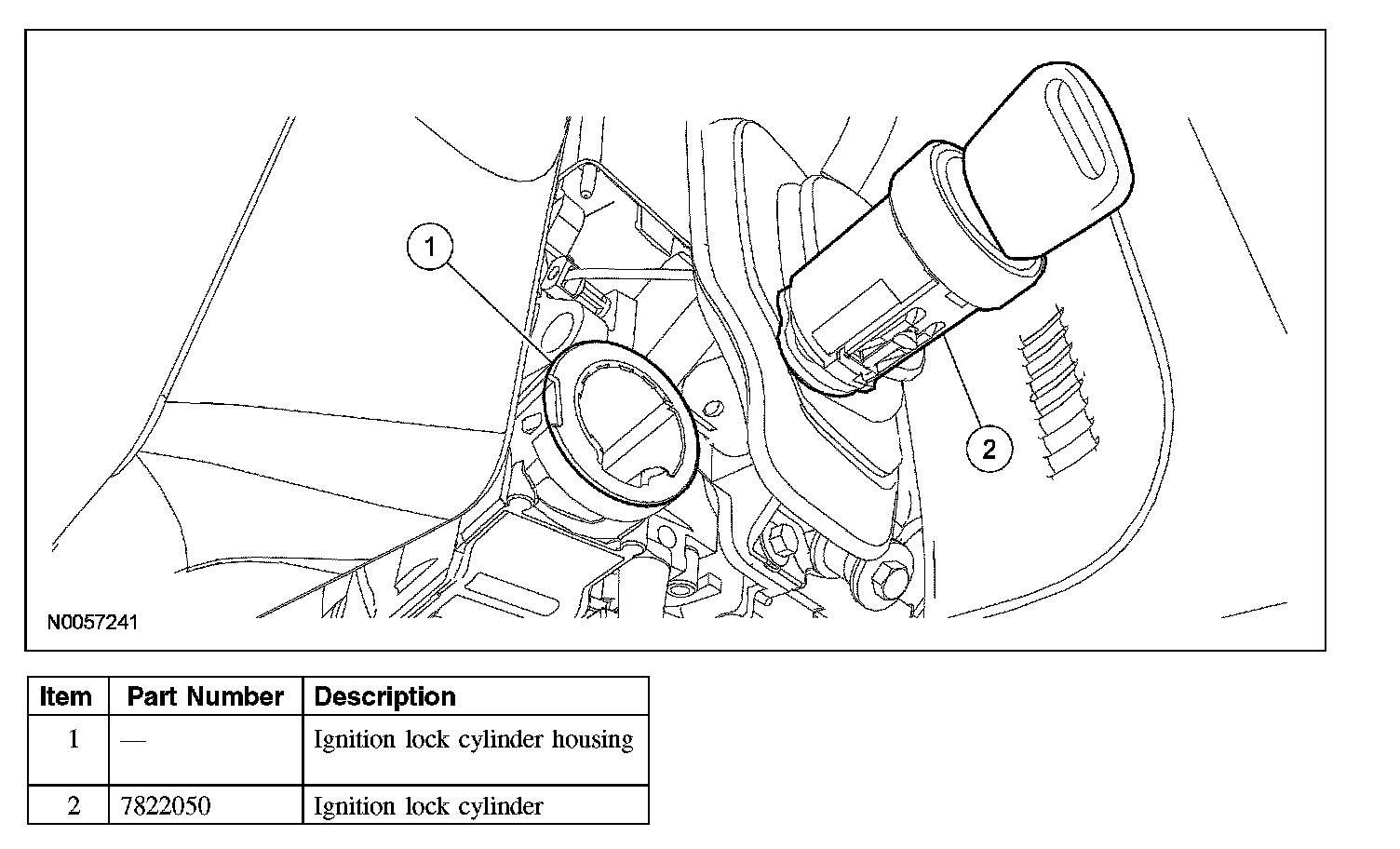

2. NOTE: The ignition lock cylinder must be in the RUN position.

Using a suitable tool, press the release pin and remove the ignition lock cylinder.

3. To install, reverse the removal procedure.
- Verify the ignition lock cylinder operation.
