Variable Valve Timing Solenoid: Service and Repair

VARIABLE CAMSHAFT TIMING (VCT) OIL CONTROL SOLENOID







Removal and Installation
1. Remove the valve cover.

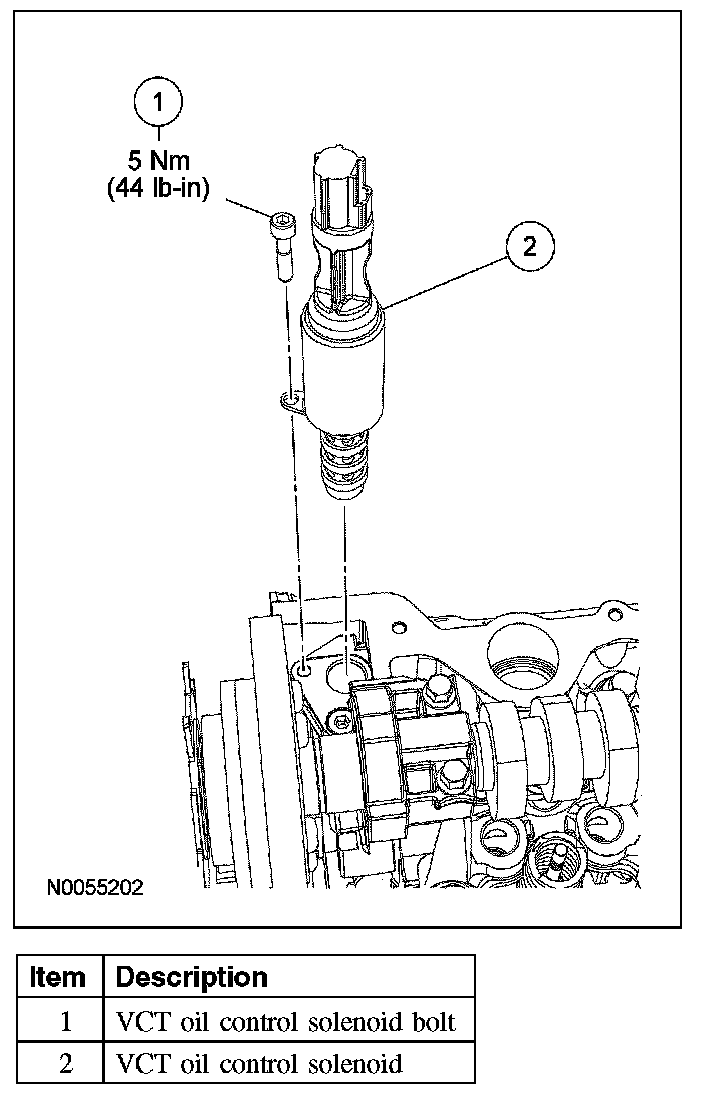

2. Remove the bolt and the VCT oil control solenoid.
- To install, tighten to 5 Nm (44 lb-in).

3. To install, reverse the removal procedure.
