Engine Lubrication

Engine Lubrication Components - Exploded View

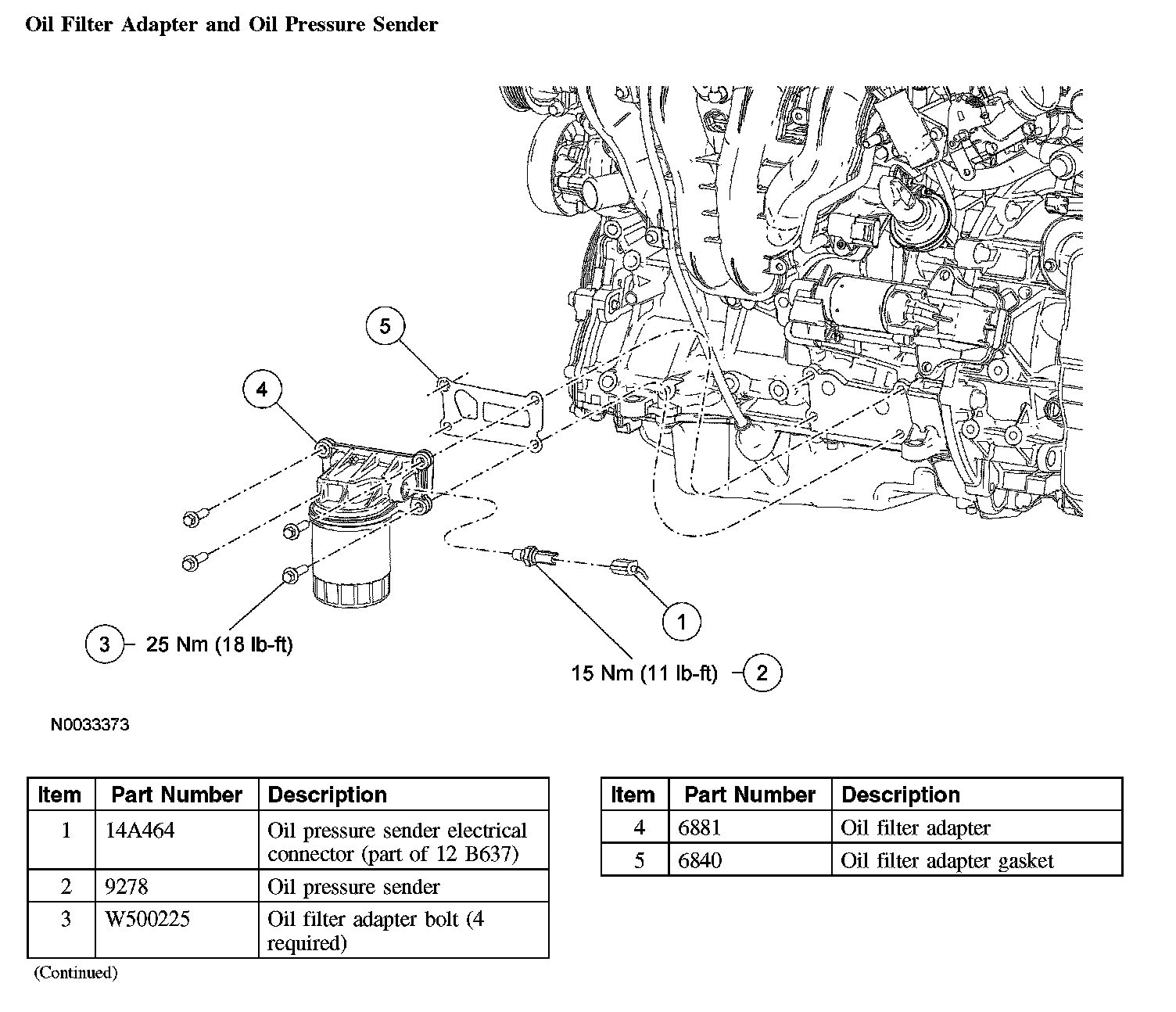

Oil Filter Adapter and Oil Pressure Sender:

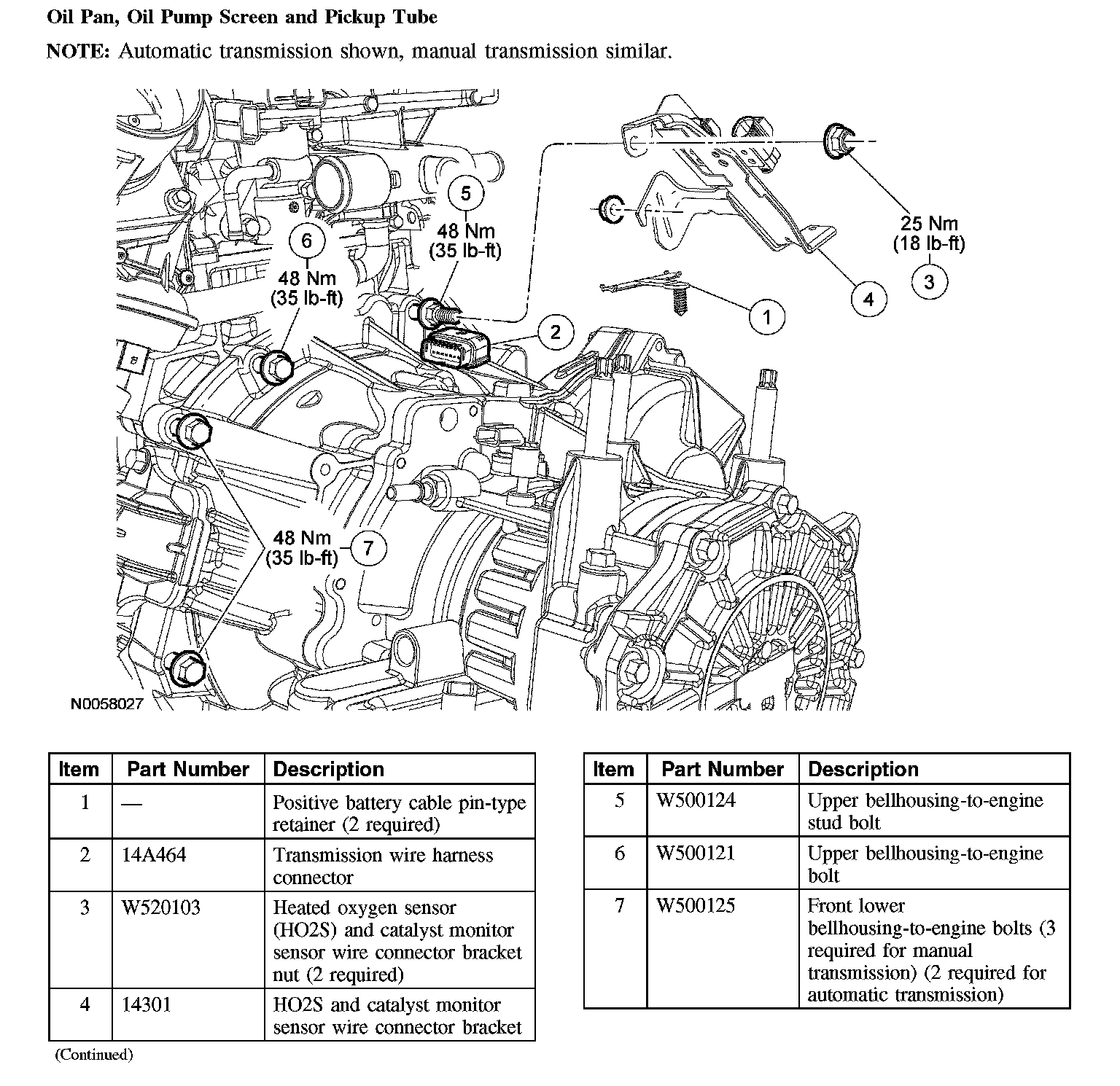

Oil Pan, Oil Pump Screen and Pickup Tube (Part 1):

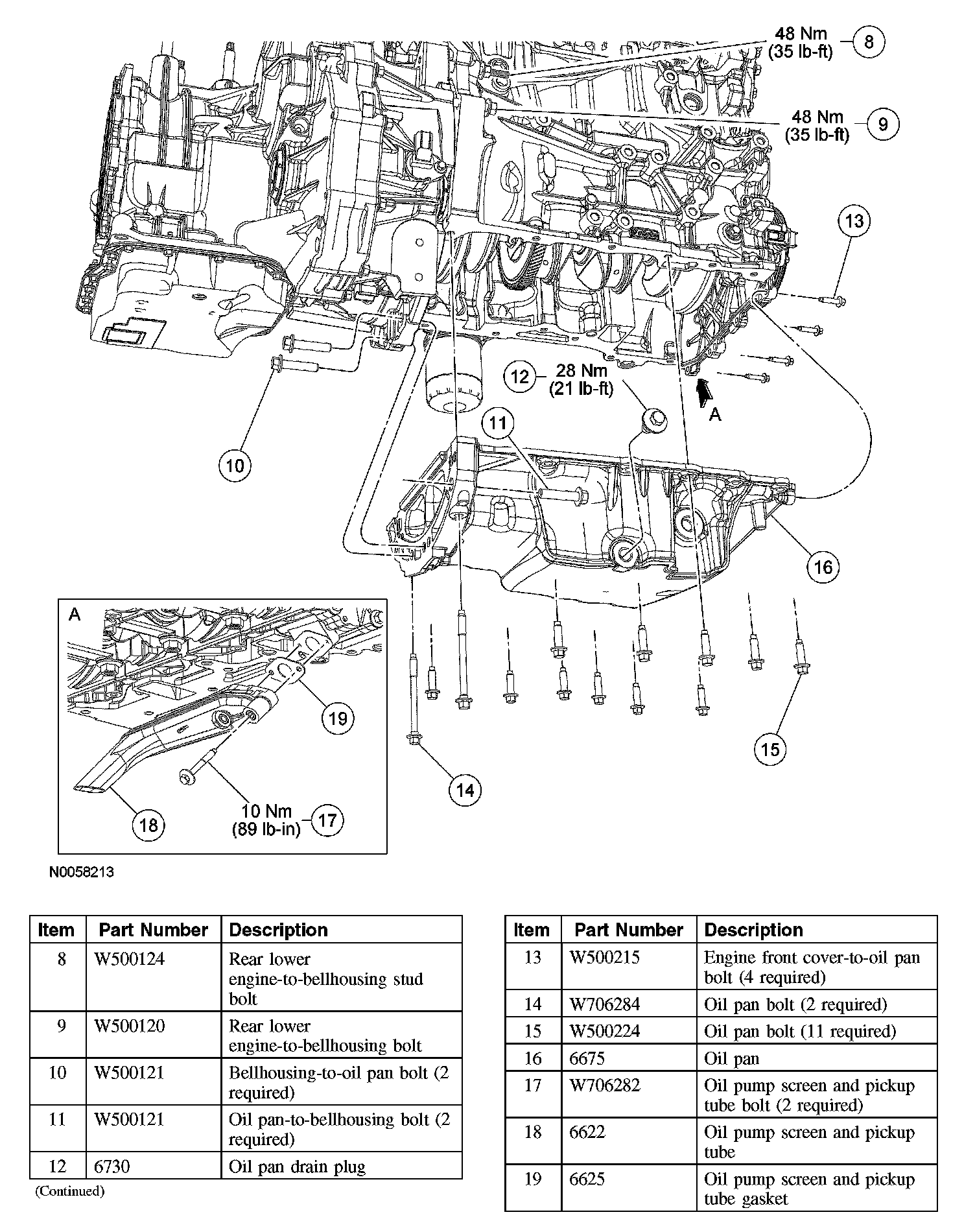

Oil Pan, Oil Pump Screen and Pickup Tube (Part 2):
