Cargo Space Lamp Connector

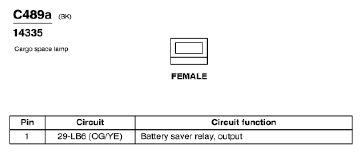

Fig 1: Cargo Space Lamp Connector End View (C489a)
G07850442Courtesy of FORD MOTOR CO.

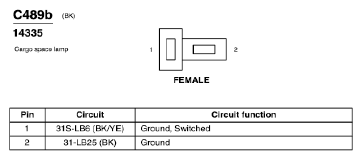

Fig 2: Cargo Space Lamp Connector End View (C489b)
G07850443Courtesy of FORD MOTOR CO.
