Clutch Pedal Position Switch Connector

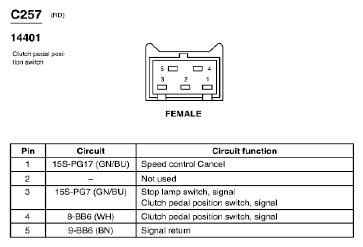

Fig 1: Clutch Pedal Position Switch Connector End View (C257)
G07850392Courtesy of FORD MOTOR CO.
