Power Steering Pressure Switch Connector

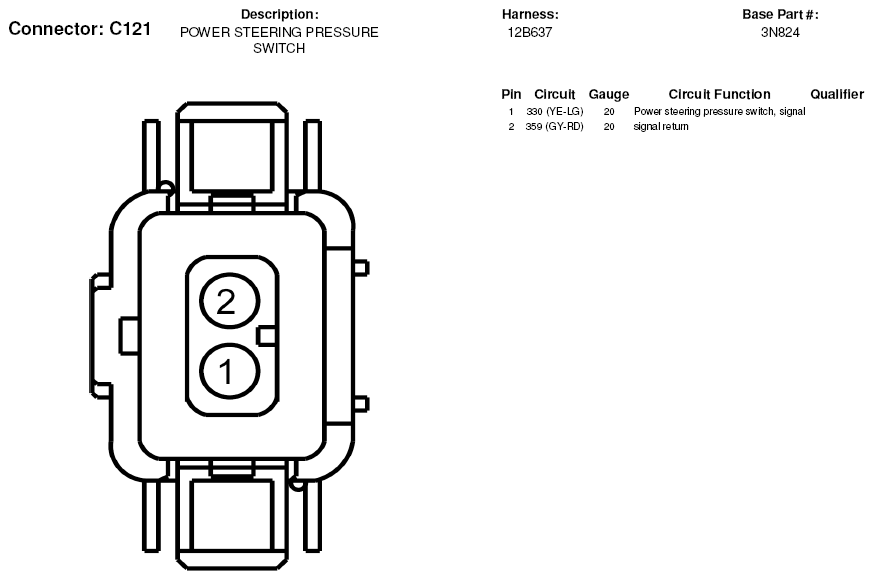

Fig 1: Power Steering Pressure Switch Connector End View (C121)
G05181444Courtesy of FORD MOTOR CO.
