Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

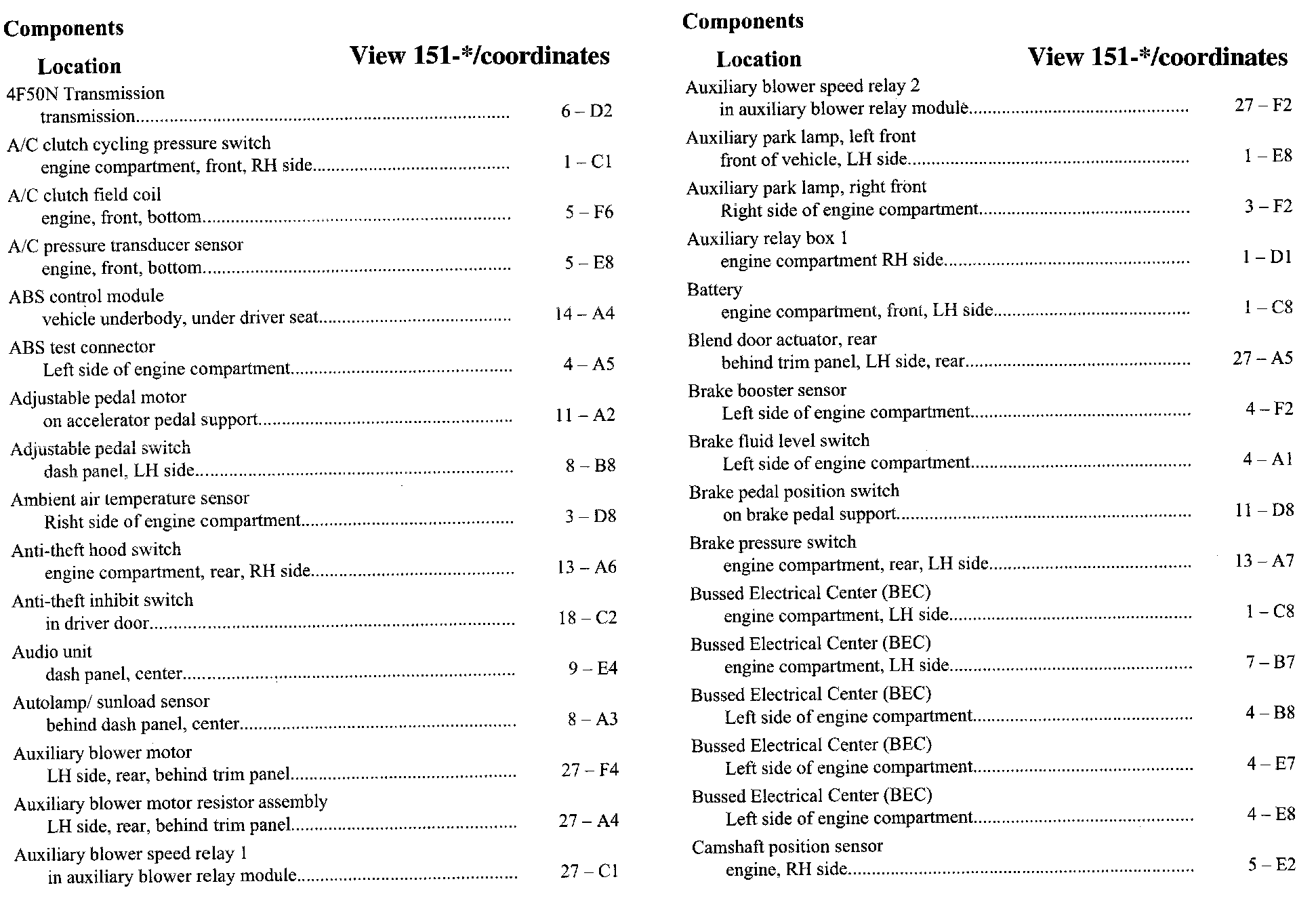

4F50N-Ca:

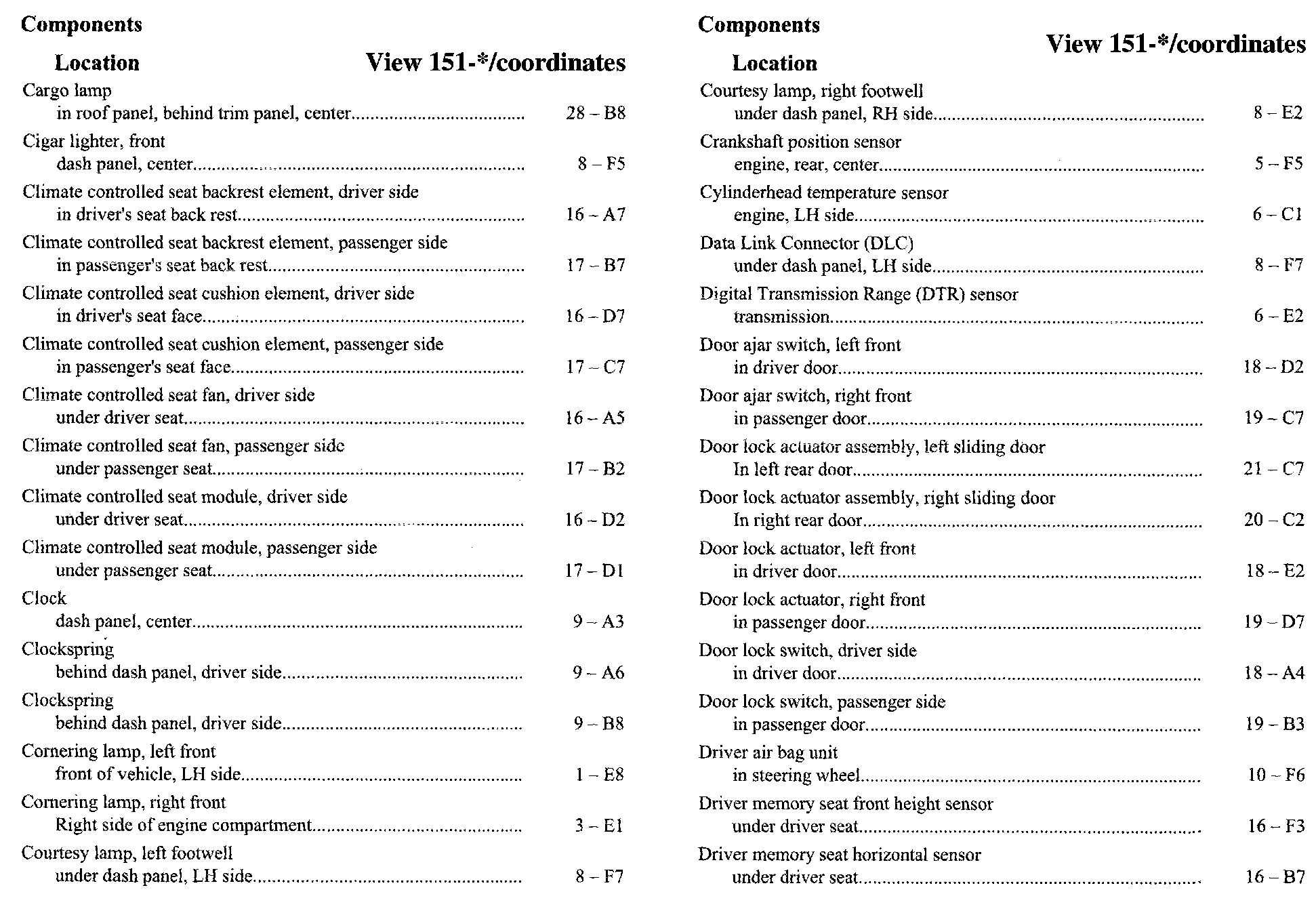

Ca-Dr:

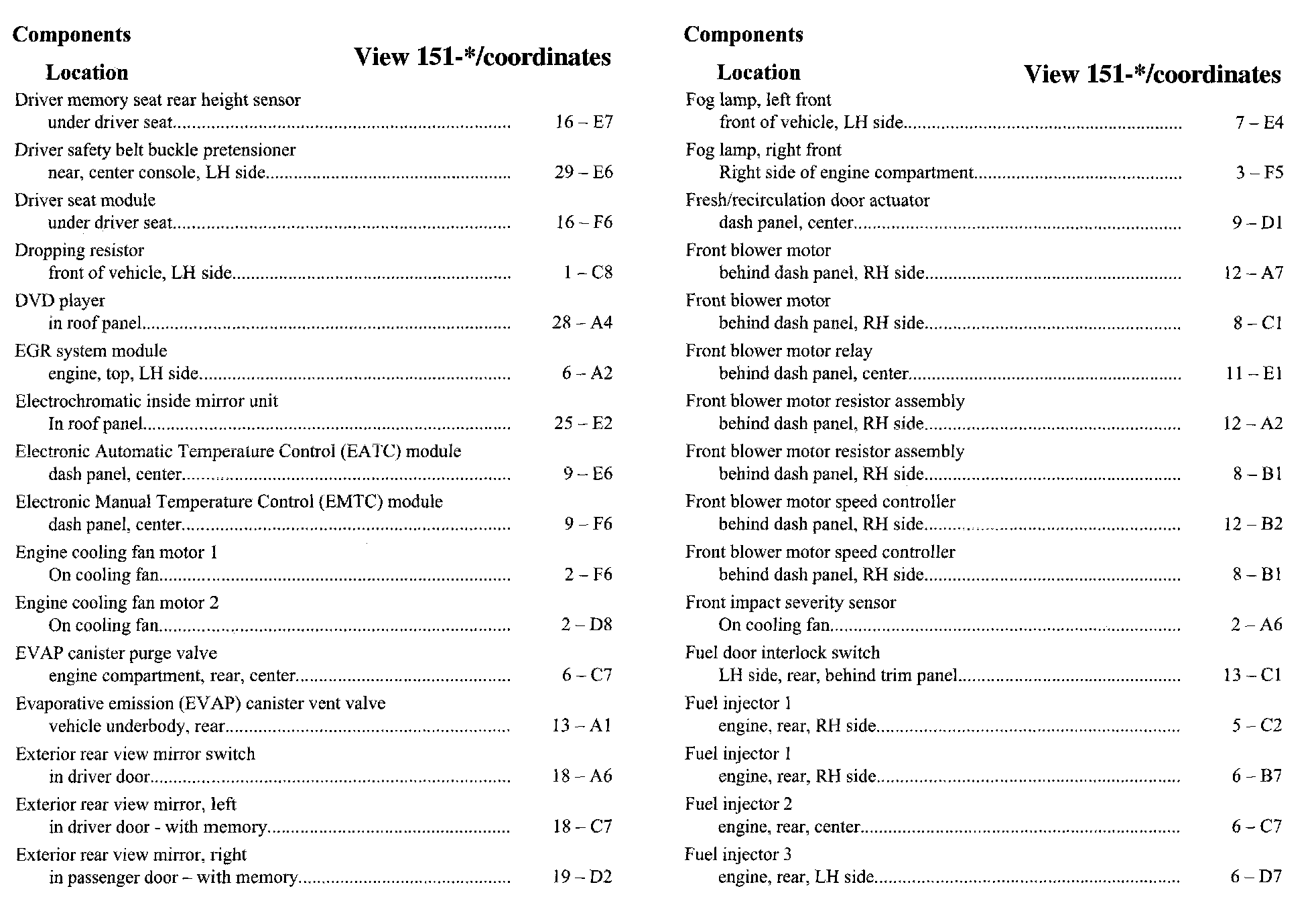

Dr-Fu:

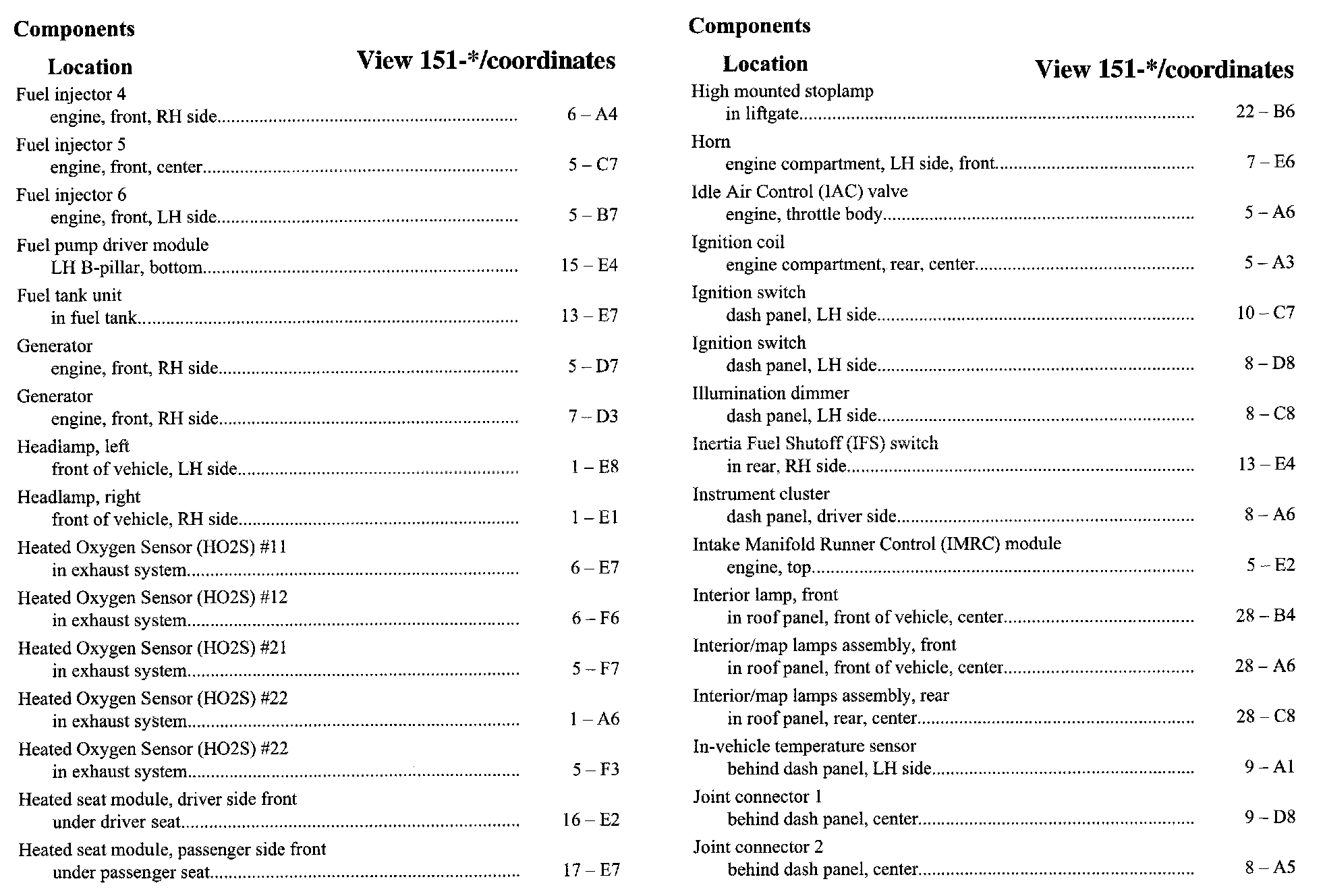

Fu-Jo:

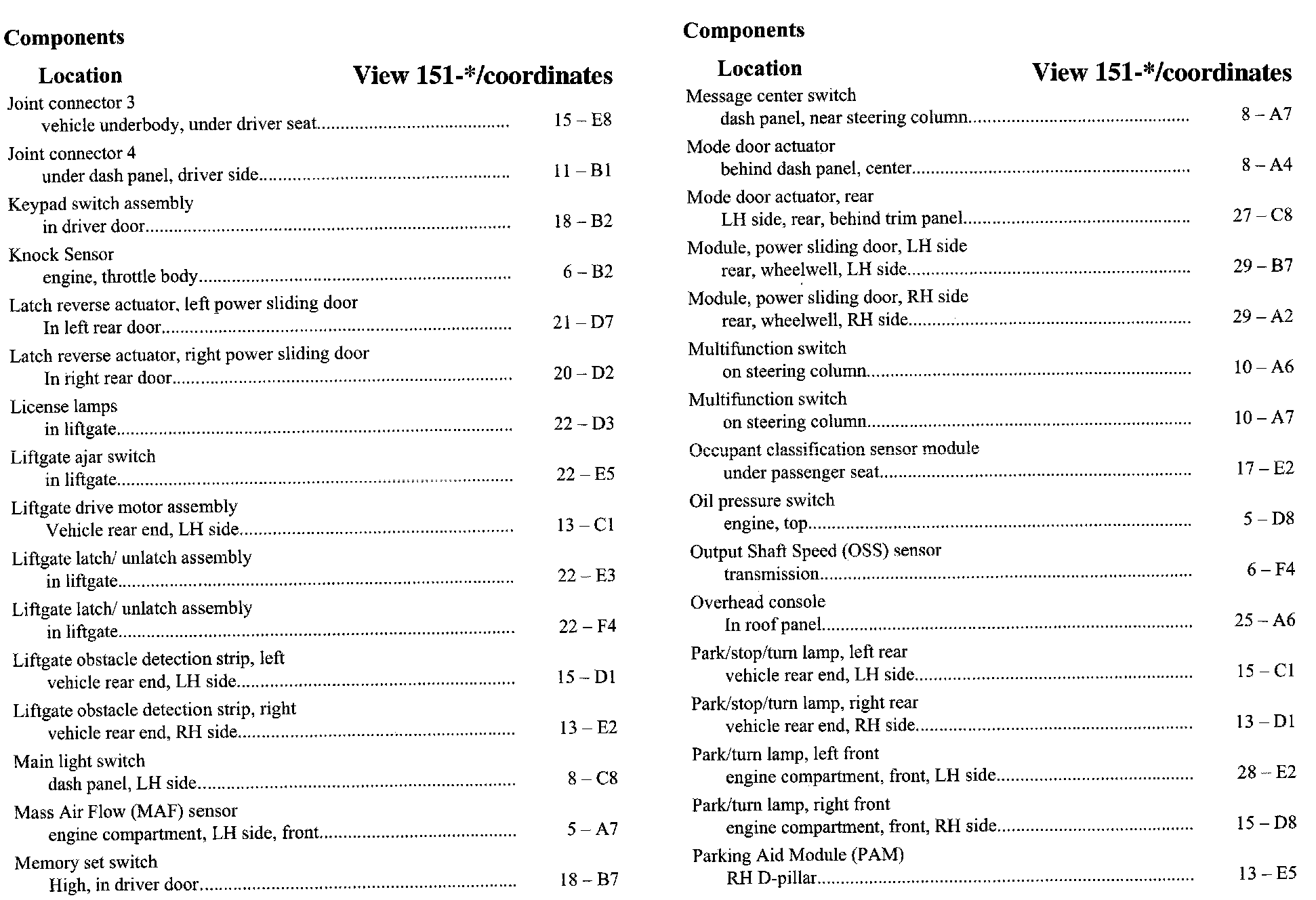

Jo-Pa:

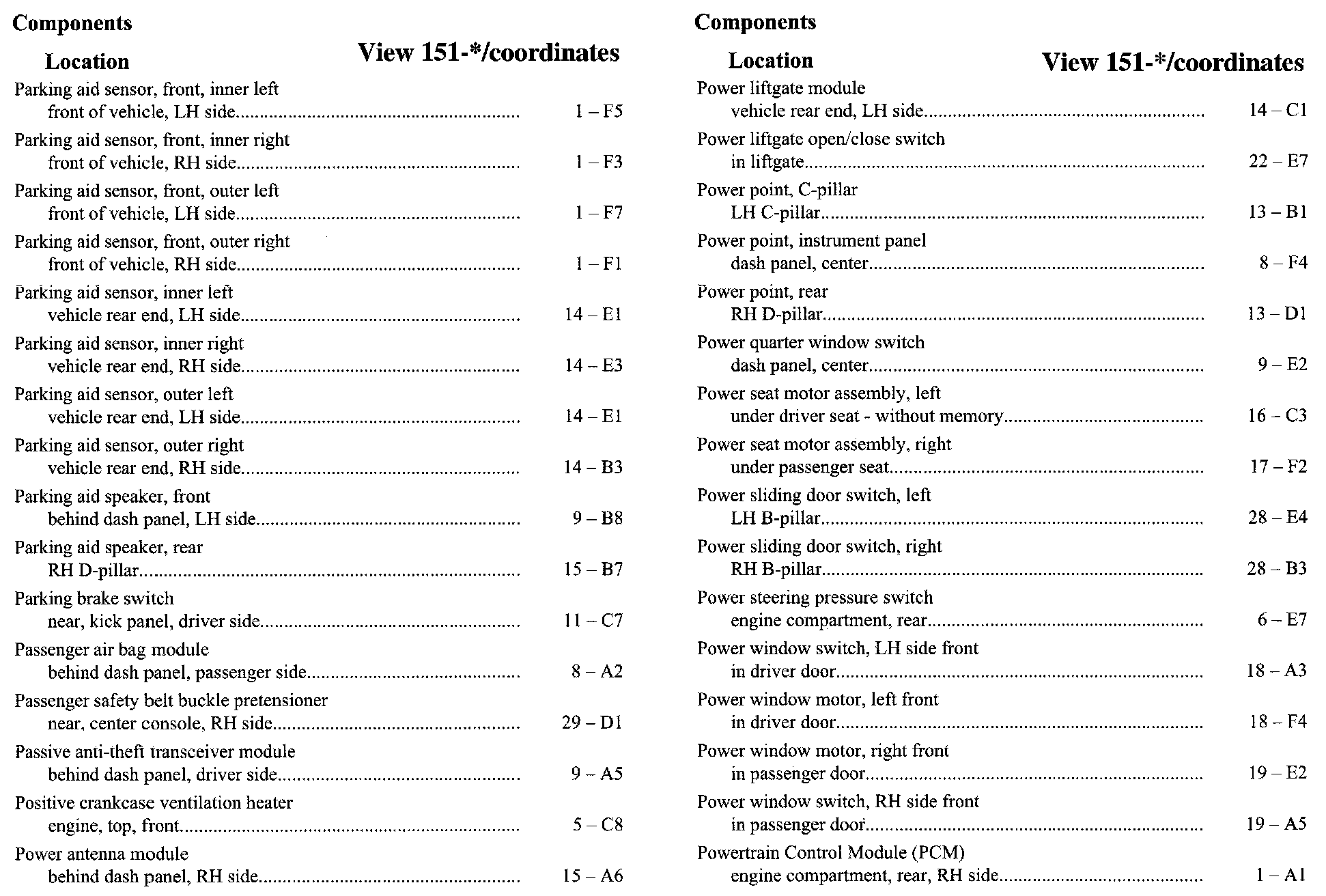

Pa-Po:

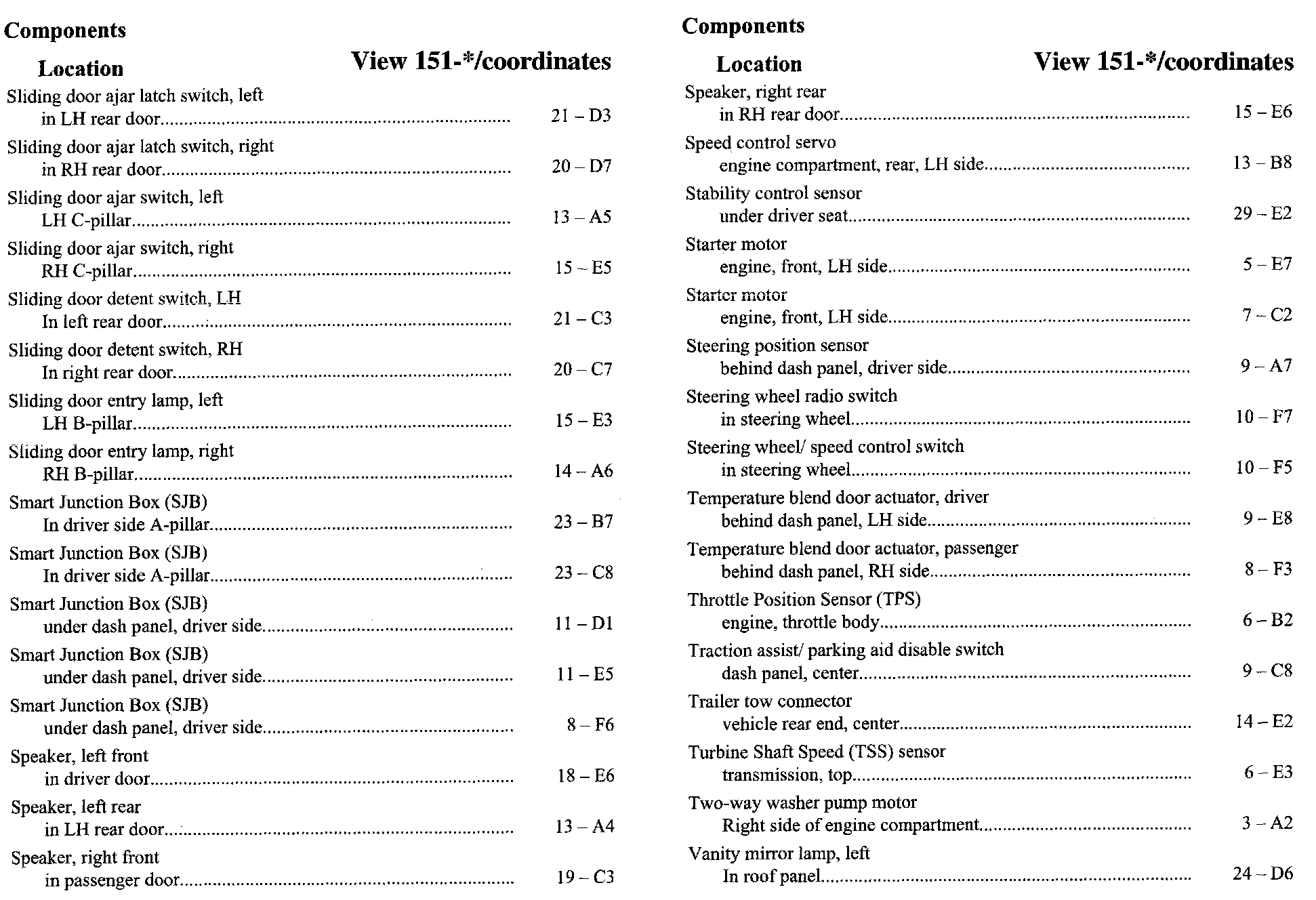

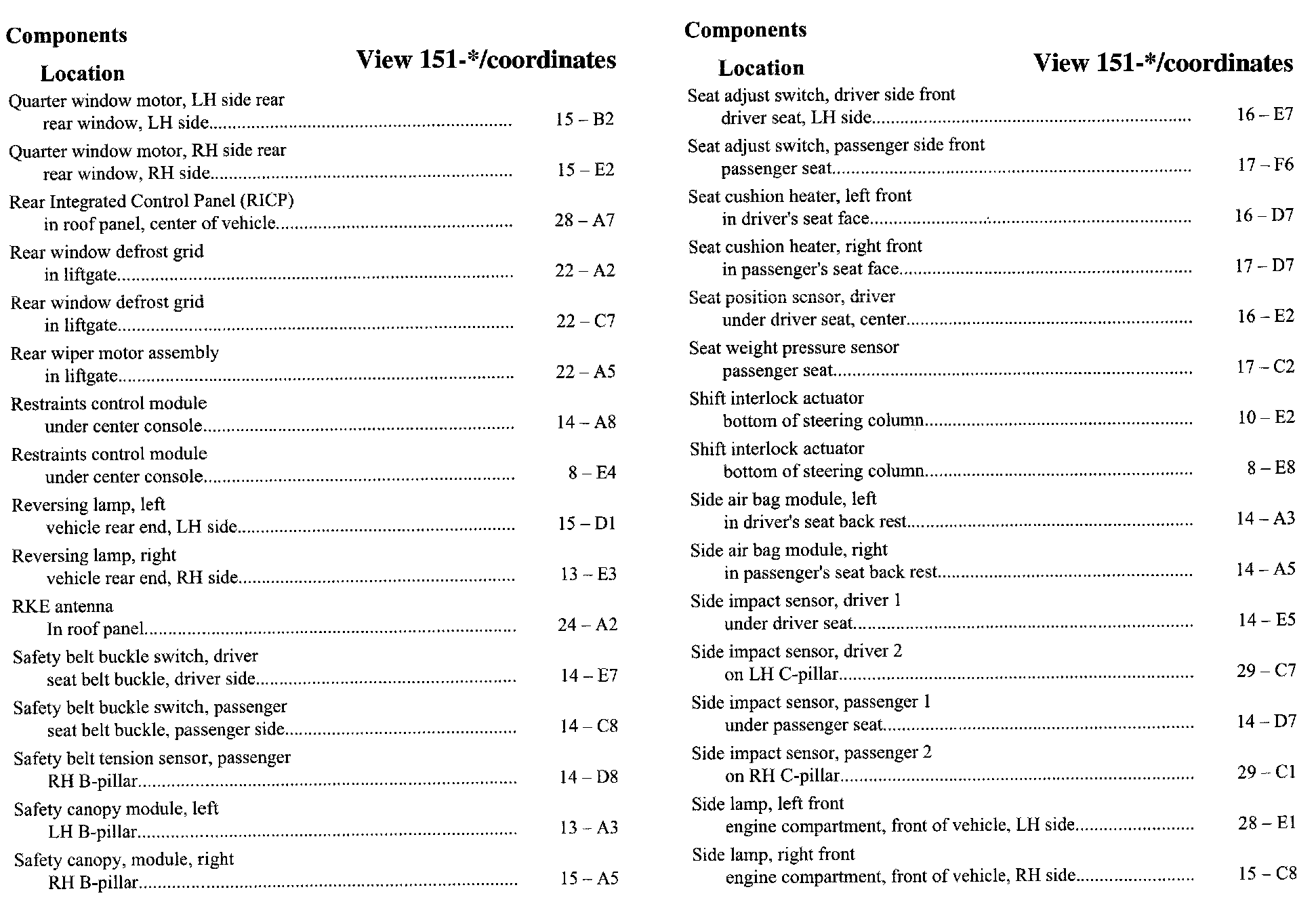

Qu-Si:

Si-Va:

Va-Wi:
