Air Injection Control Valve: Service and Repair

SECONDARY AIR VALVE

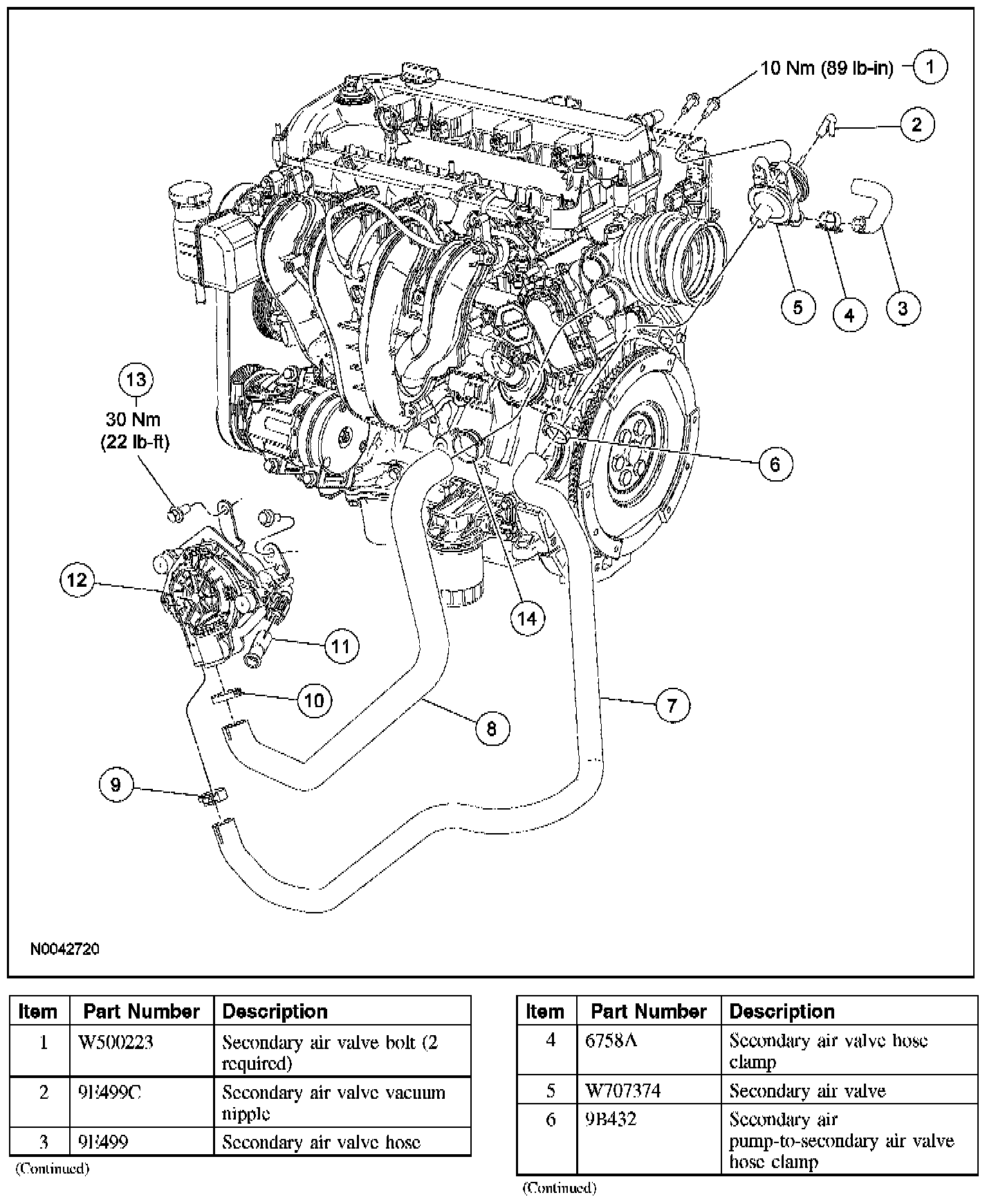

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Remove the vacuum tube from the secondary air valve.
2. Release the clamp and remove the secondary air pump-to-secondary air valve hose.
3. Remove the 2 bolts and the secondary air valve.
- To install, tighten to 10 Nm (89 lb-in).

4. Release the clamp and remove the secondary air valve-to-manifold hose.
5. To install, reverse the removal procedure.
