Charge Motion Control Valve (CMCV) - 4.6L (3V): Notes

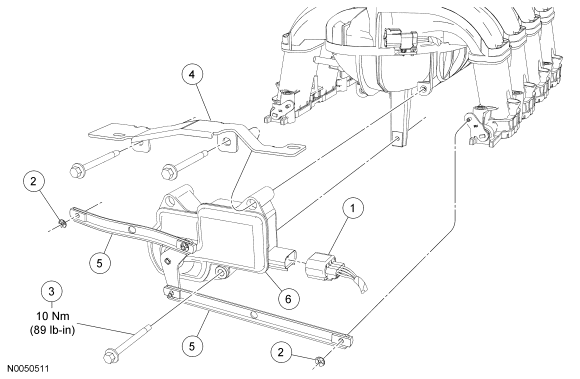

Fig 1: Charge Motion Control Valve (CMCV) With Torque Specification - 4.6L (3V)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Charge motion control valve (CMCV) electrical connector
2	W710420	E-clips (2 required)
3	W708165	CMCV bolt (3 required)
4	-	CMCV bracket
5	9B841	CMCV linkages
6	9G730	CMCV
