Passive Anti-Theft System (PATS) Transceiver: Notes
WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Zephyr is shown, the Fusion and Milan are similar.

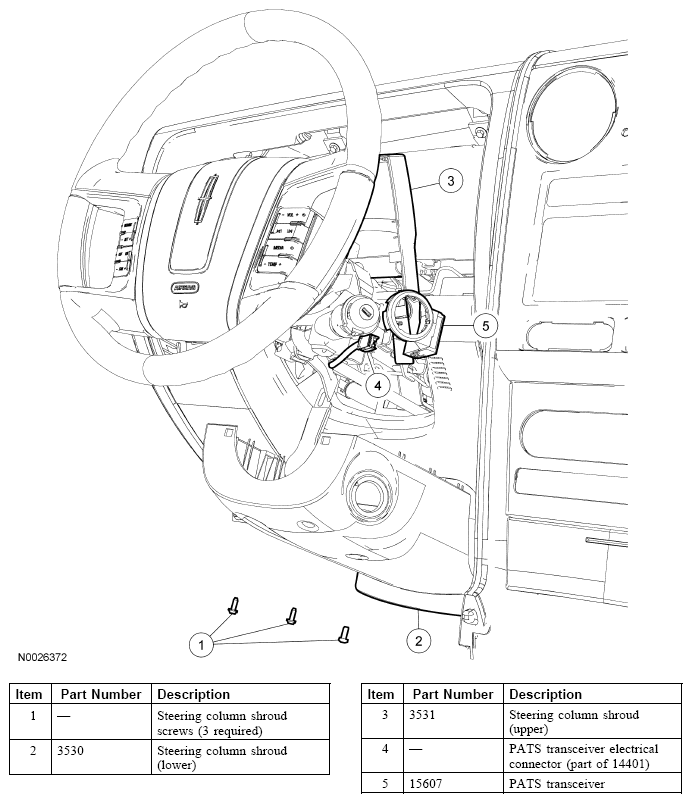

Fig 1: Identifying Passive Anti-Theft System (PATS) Transceiver Components
