Home >> Ford >> 2008 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Central Junction Box
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Central Junction Box

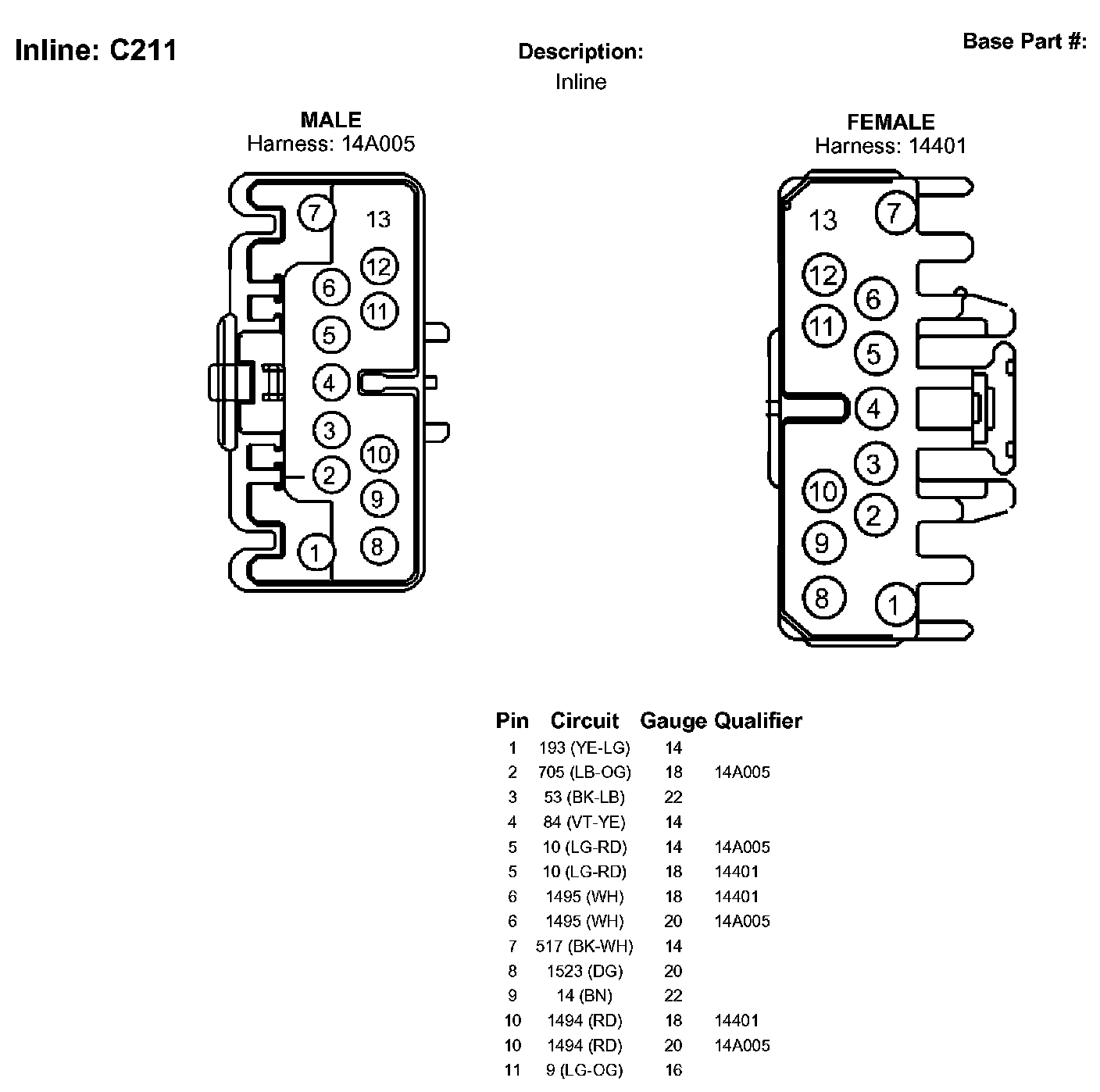

C211 (Part 1):



C211 (Part 2):
