Connector Locations

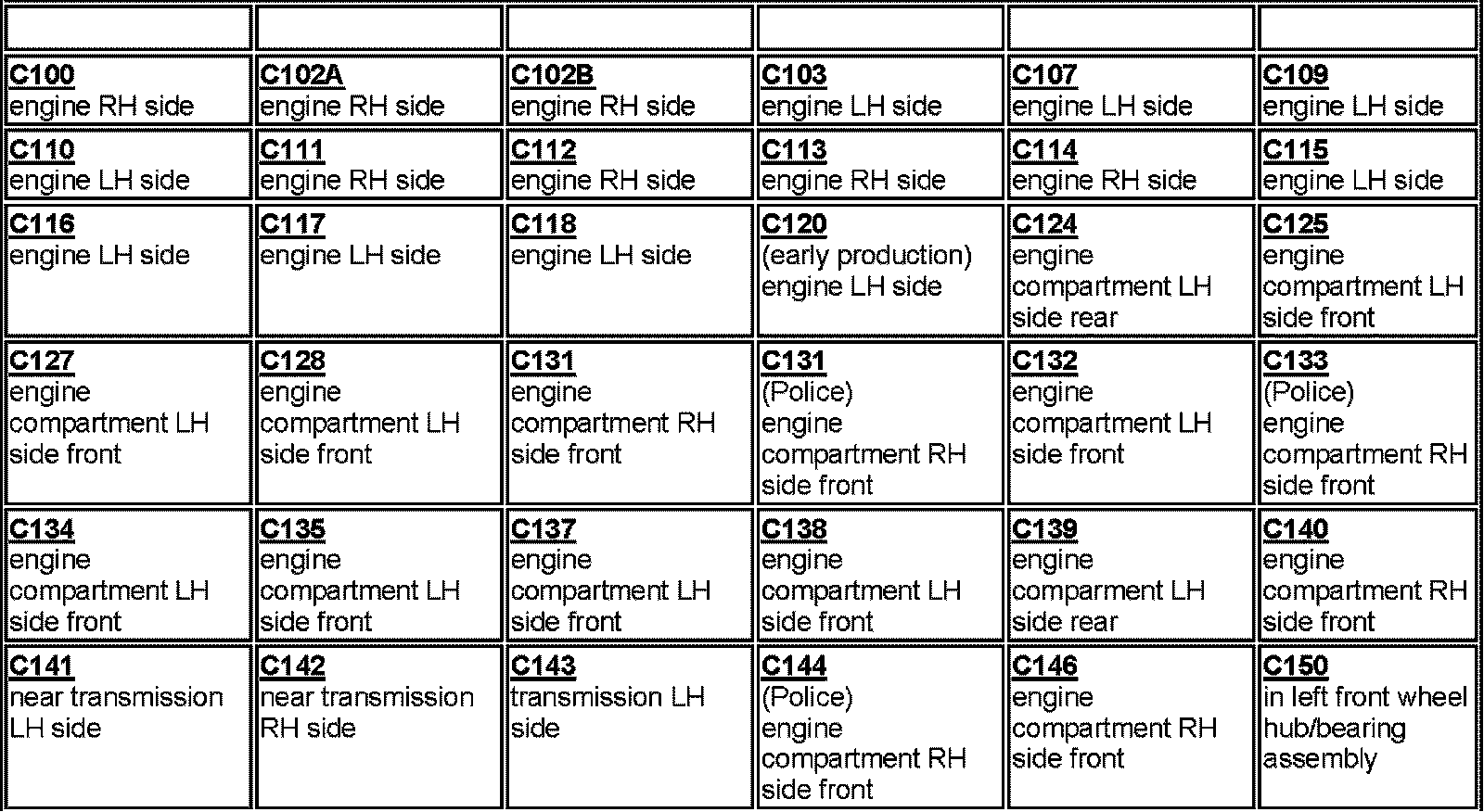

C100 - C150:

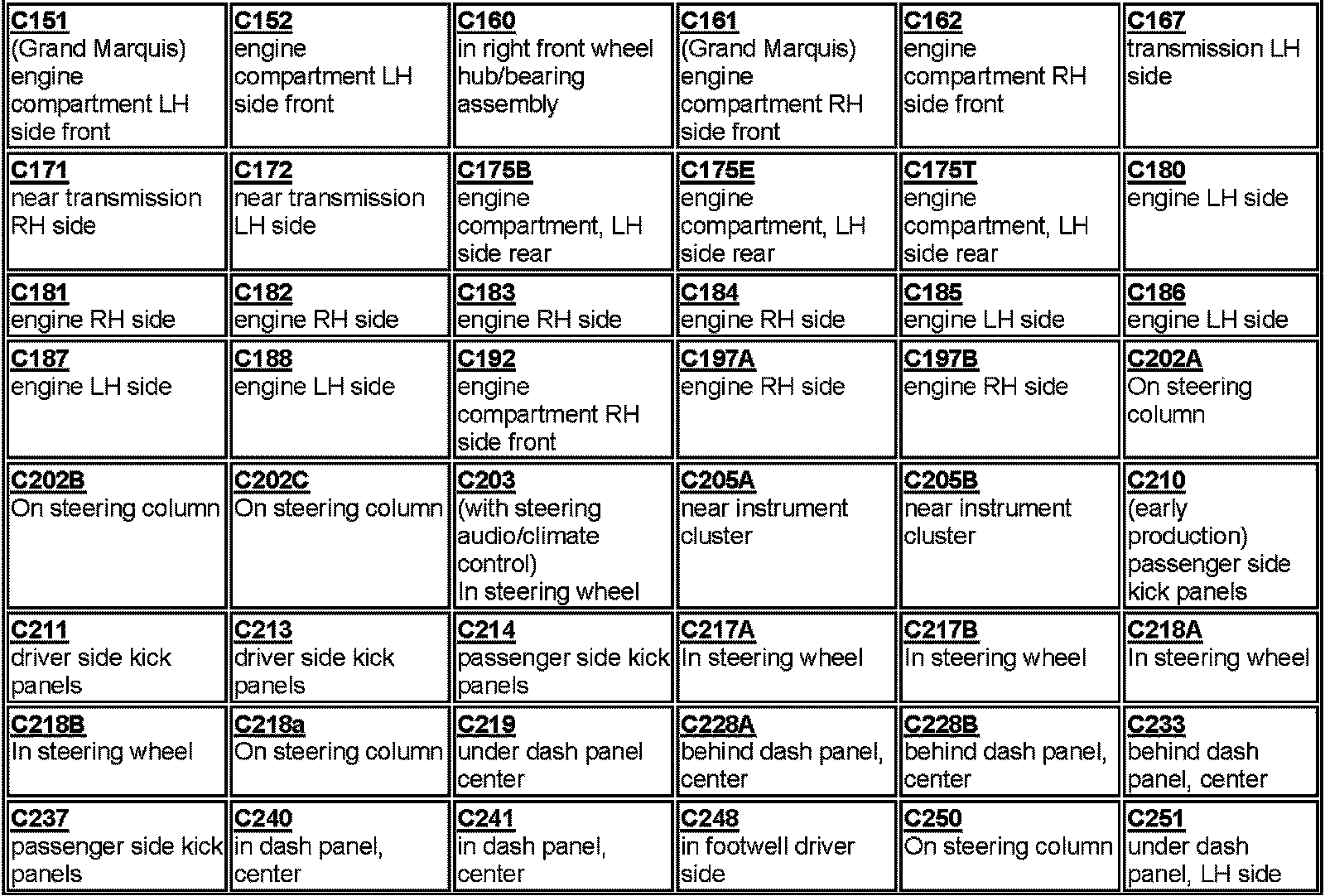

C151 - C251:

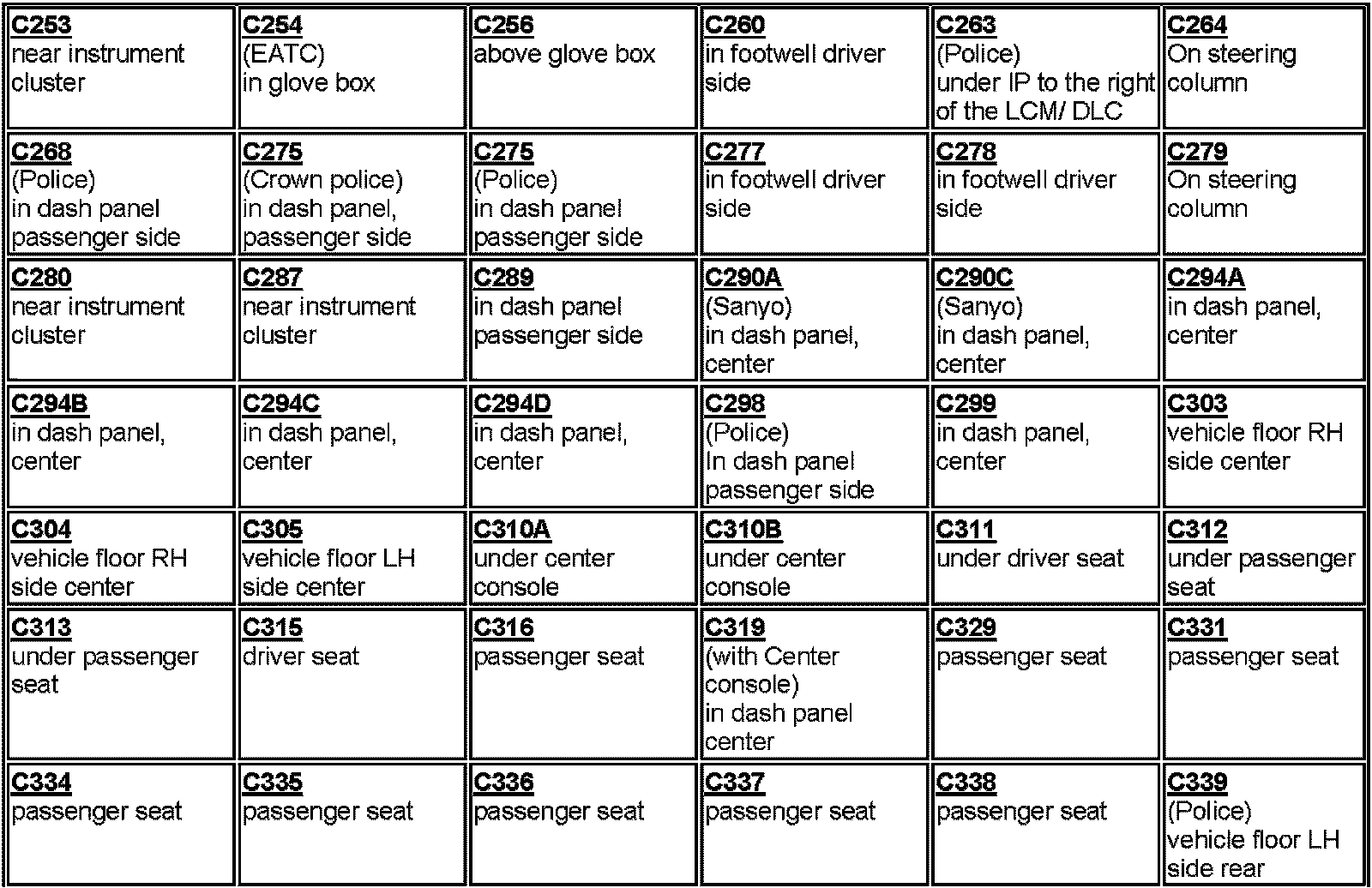

C253 - C339:

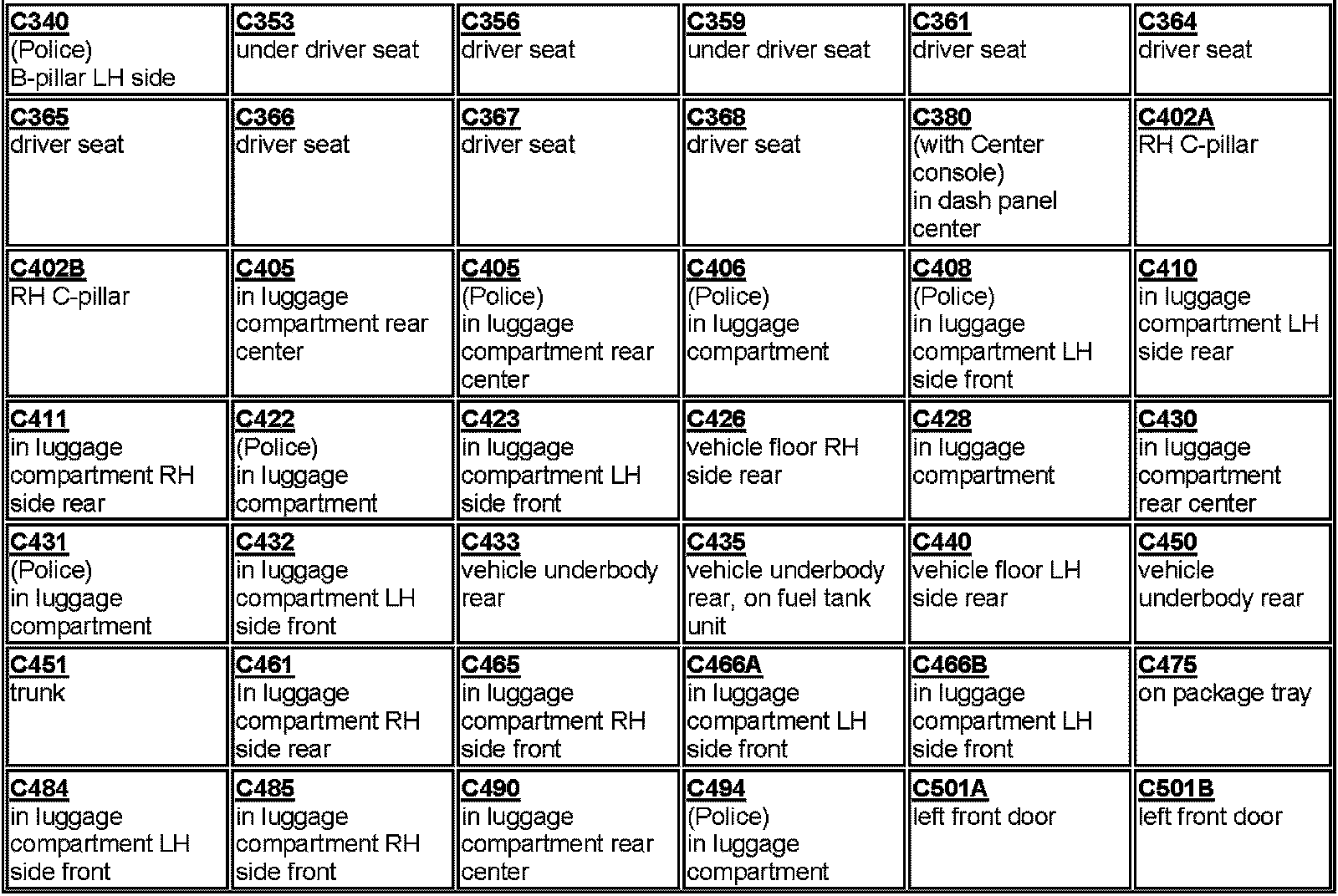

C340 - C501B:

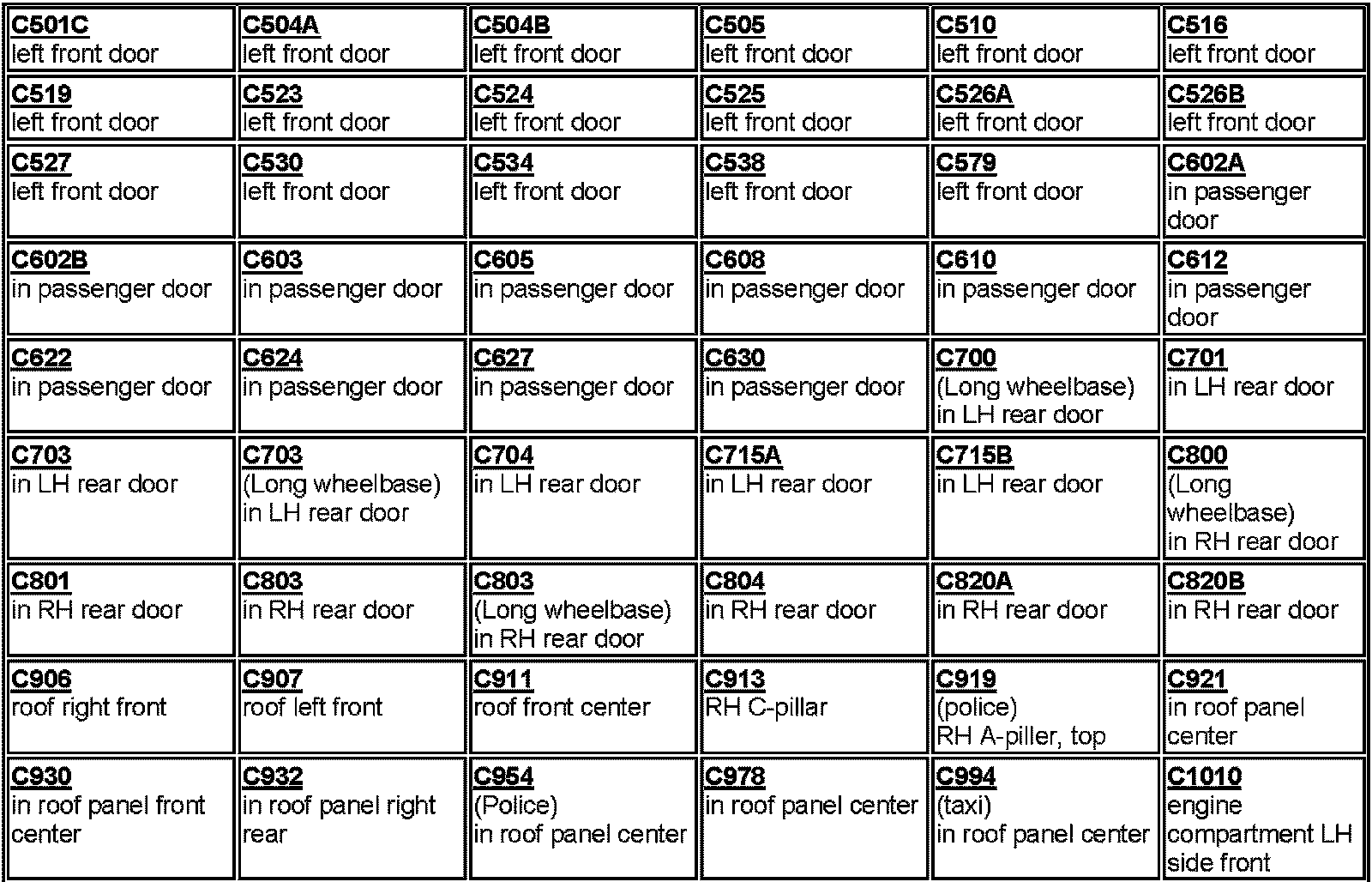

C501C - C1010:

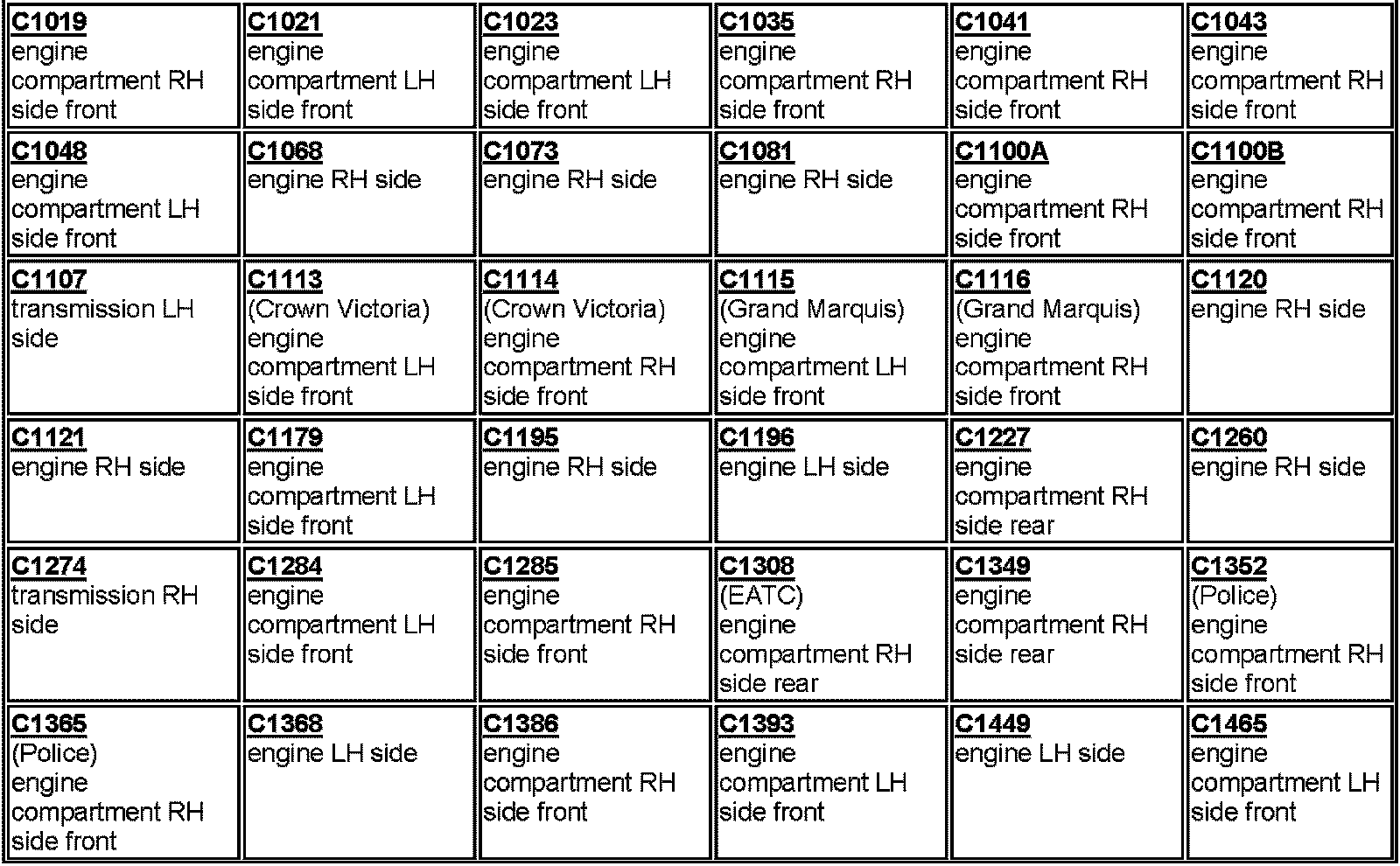

C1019 - C1465:

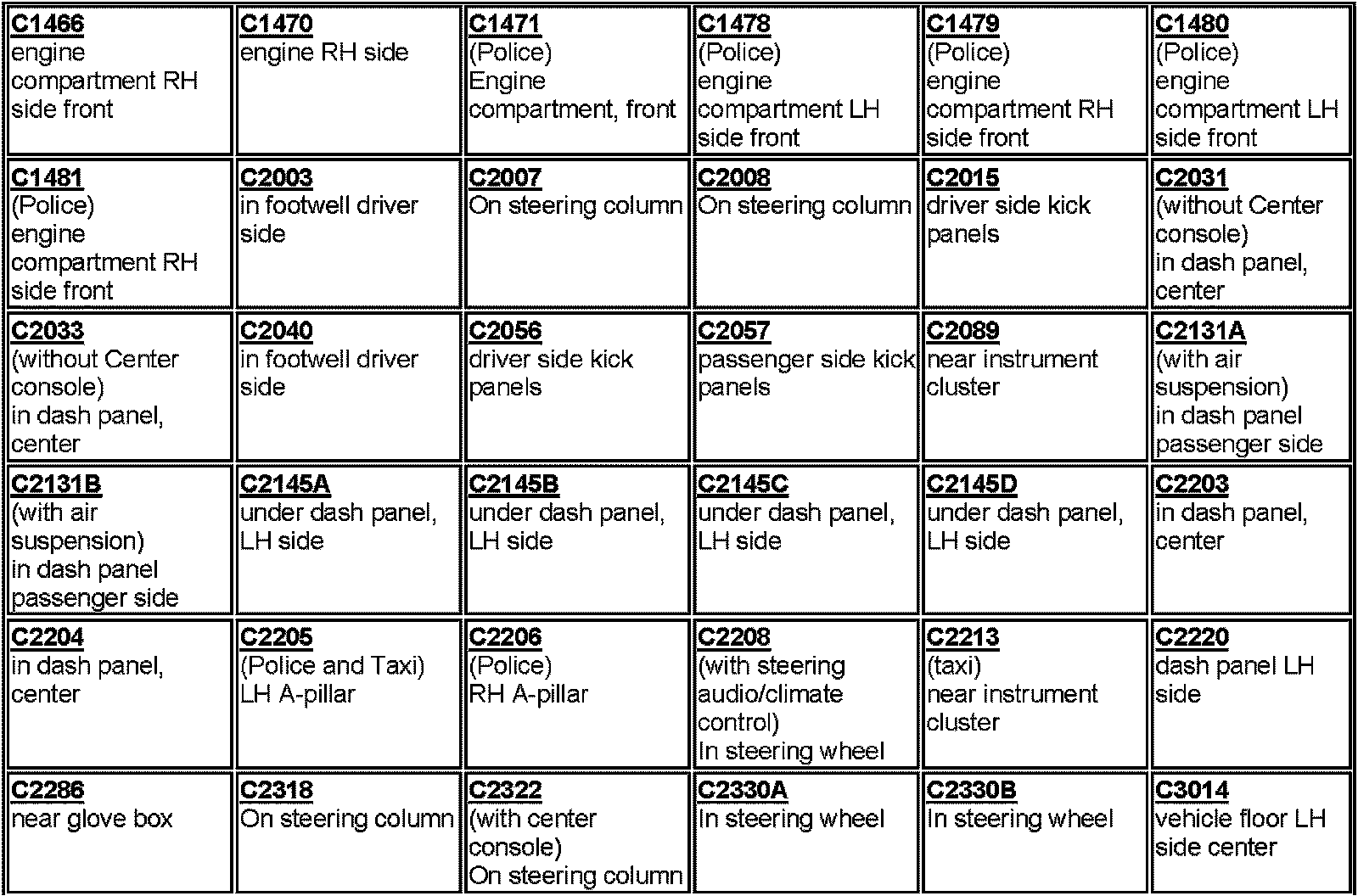

C1466 - C3014:

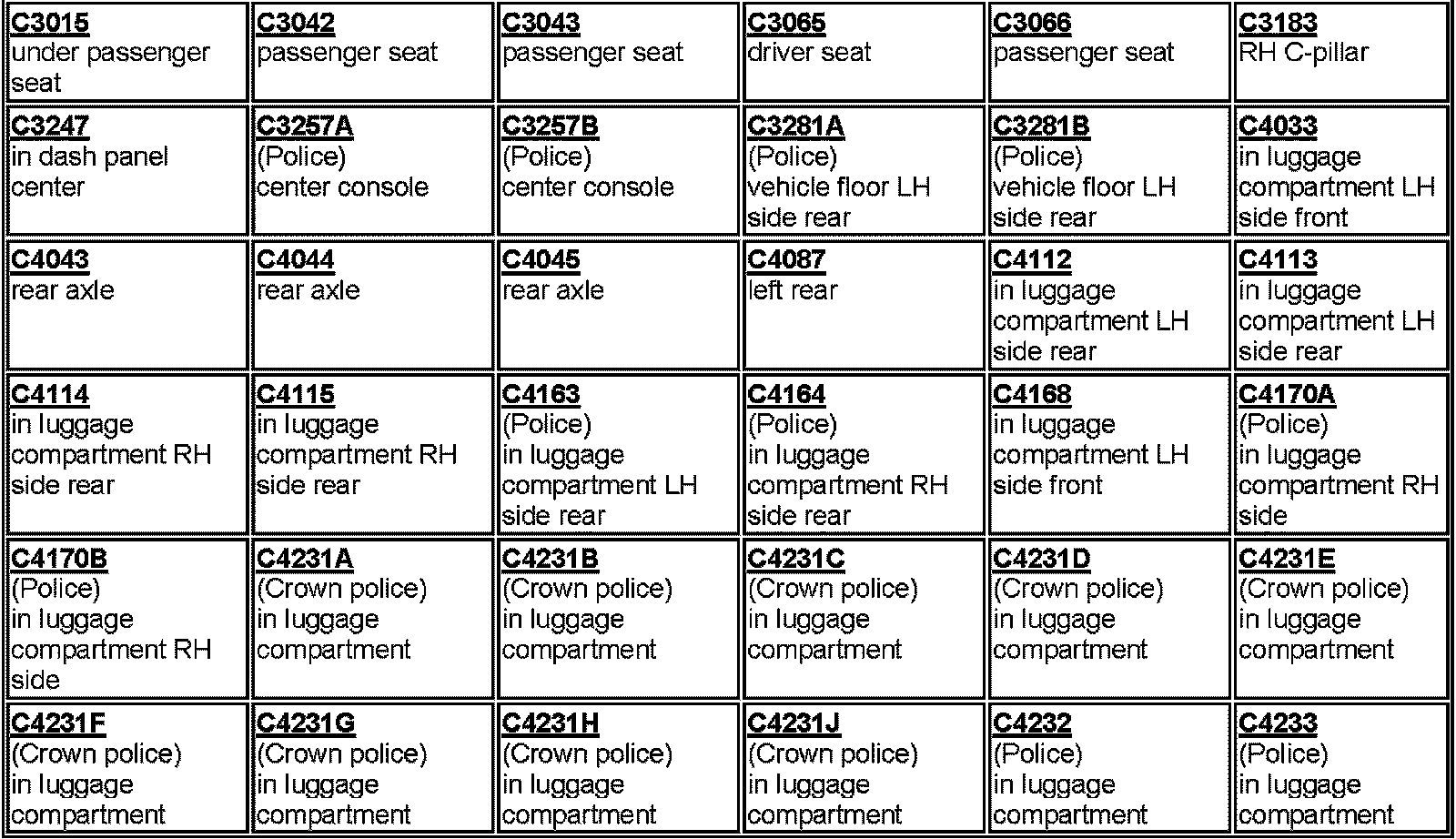

C3015 - C4233:

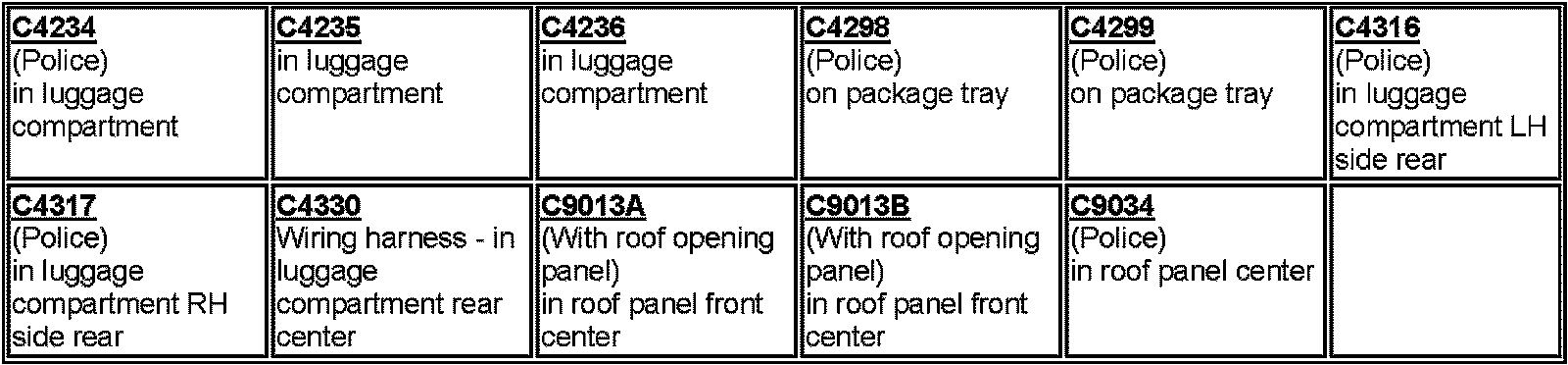

C4234 - C9034:
