Starter Relay: Service and Repair

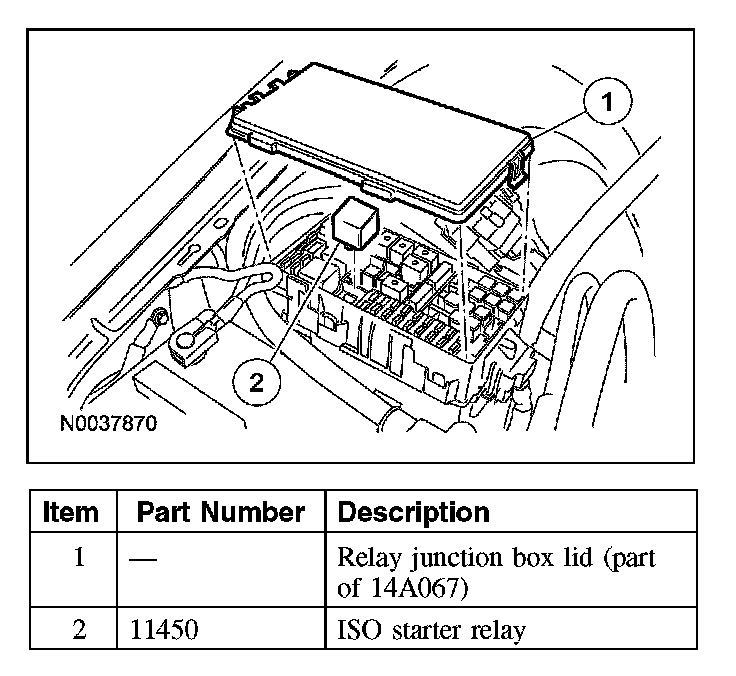

STARTER MOTOR SOLENOID RELAY - ISO MINI







Removal and Installation
1. Disconnect the battery ground cable.
2. Press the clips inward and open the relay junction box.







3. Remove the ISO starter relay.
4. To install, reverse the removal procedure.
