Anti-Lock Brake System (ABS) Module: Notes
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Air Cleaner (ACL) outlet clamp (part of 9F805) |
| 2 |
- |
Mass Air Flow (MAF) sensor electrical connector (part of 14A464) |
| 3 |
9661 |
ACL housing cover |
Courtesy of FORD MOTOR CO.

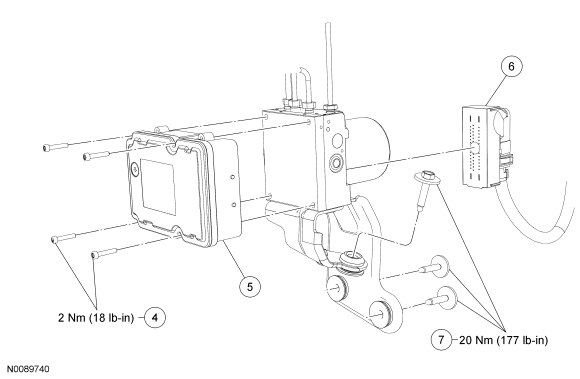

| Item |
Part Number |
Description |
| 4 |
W302577 |
ABS module bolts (4 required) |
| 5 |
2C219 |
ABS module |
| 6 |
- |
ABS module electrical connector (part of 14A464) |
| 7 |
W710309 |
Hydraulic Control Unit (HCU) bracket-to-frame bolts (3 required) |
