Test K: The Defrost System Does Not Shut Off Automatically - On At All Times, Front Windshield

PINPOINT TEST K: THE DEFROST SYSTEM DOES NOT SHUT OFF AUTOMATICALLY - ON AT ALL TIMES, FRONT WINDSHIELD

Normal Operation
Under normal operation, when the switch is ON, ground is supplied to the smart junction box (SJB) from the switch through circuit CRD08 (GN/OG). When the SJB commands the heated windshield ON, the SJB supples voltage to the RH and LH heated windshield relay coils and the heated windshield indicator through circuit CRD03 (BU/GN). When the relays are energized, voltage is provided from the relay to the heated windshield grids through circuits (LH) CRD10 (BN/WH) and (RH) CRD11 (YE/VT).

- DTC B2113 Heated Windshield Input Short to Ground - Short to ground.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Heated windshield relay
- Heated windshield switch
- SJB

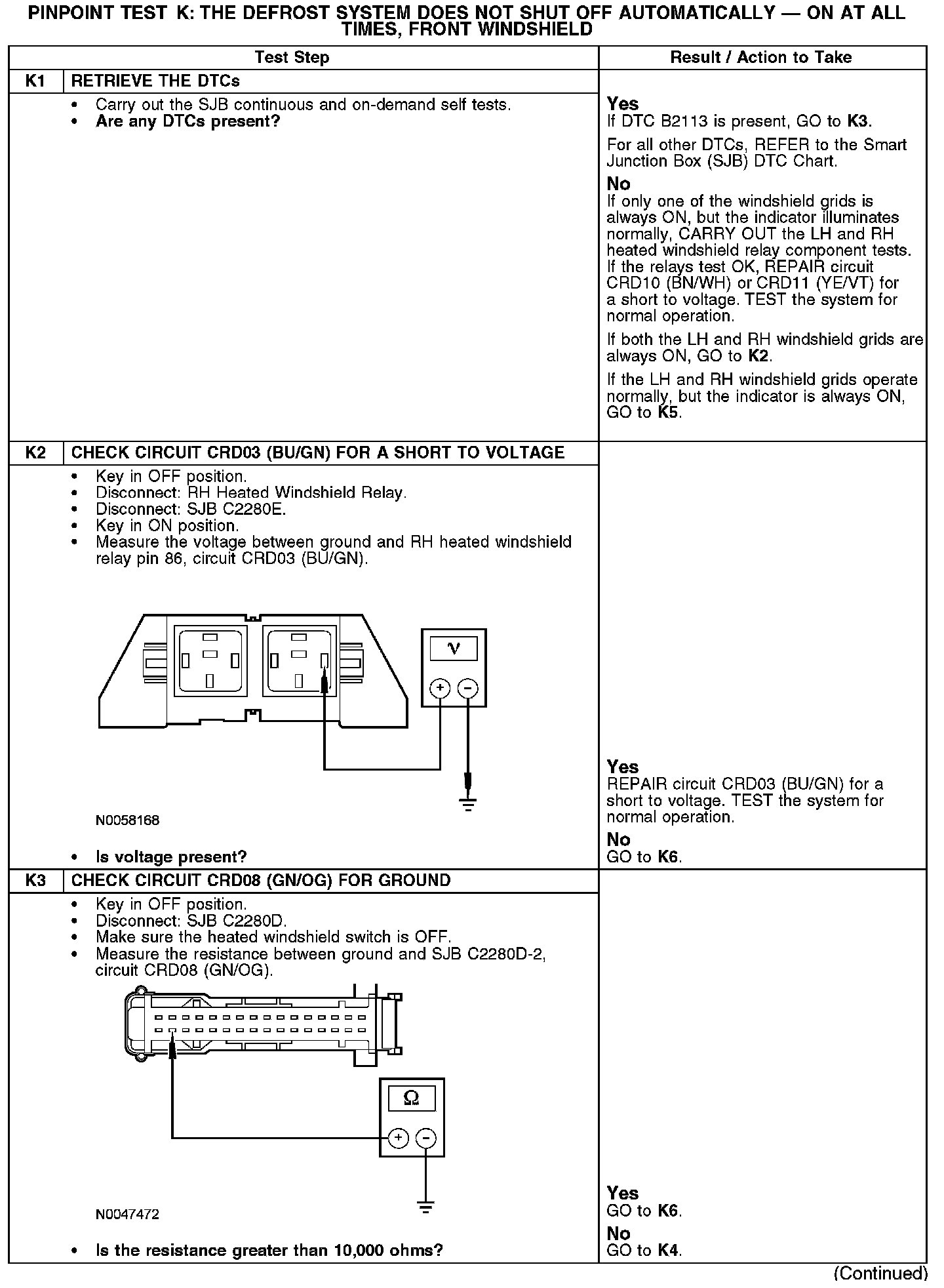

K1-K3:

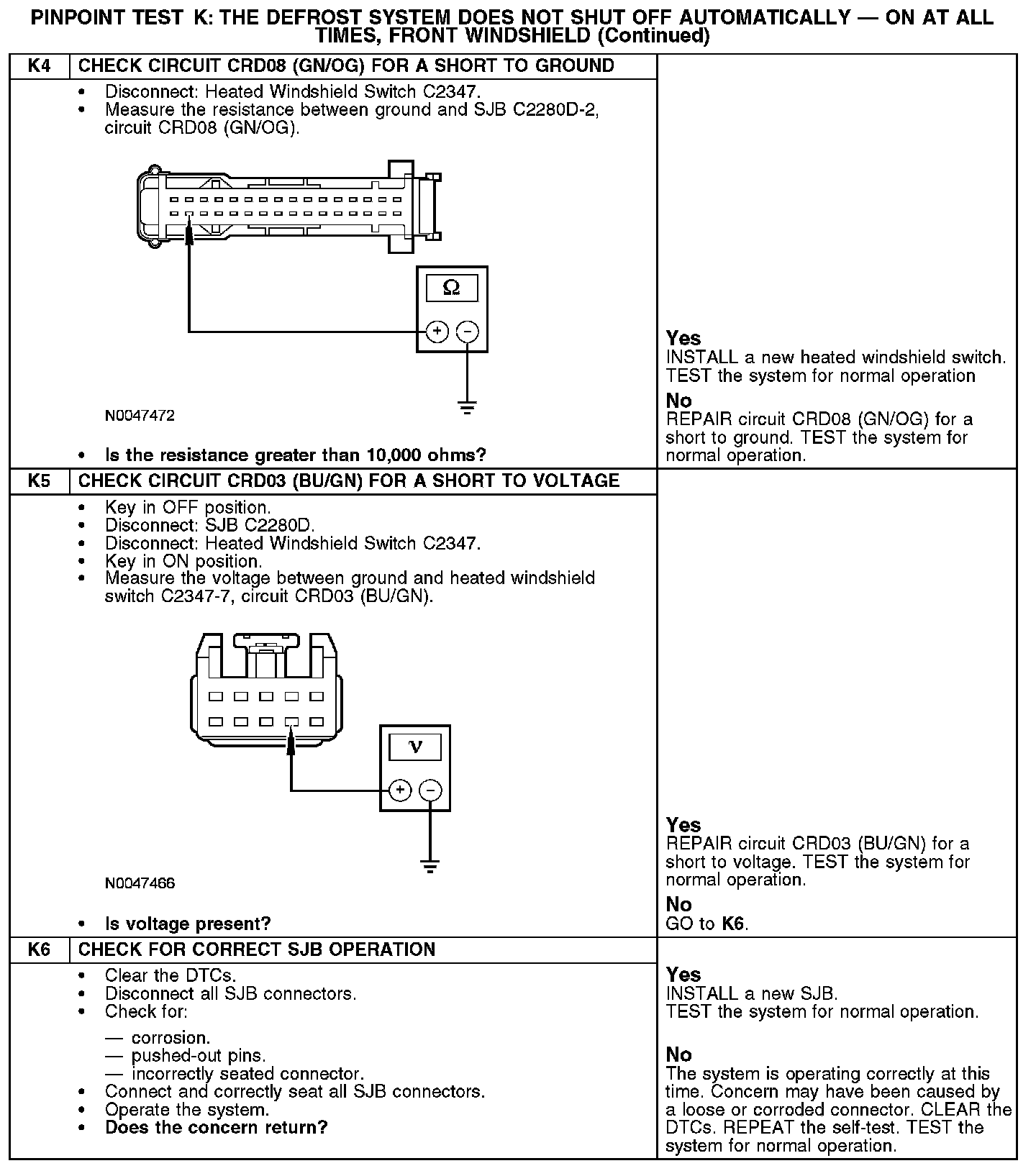

K4-K6:
