Torque Specifications

Torque Specifications

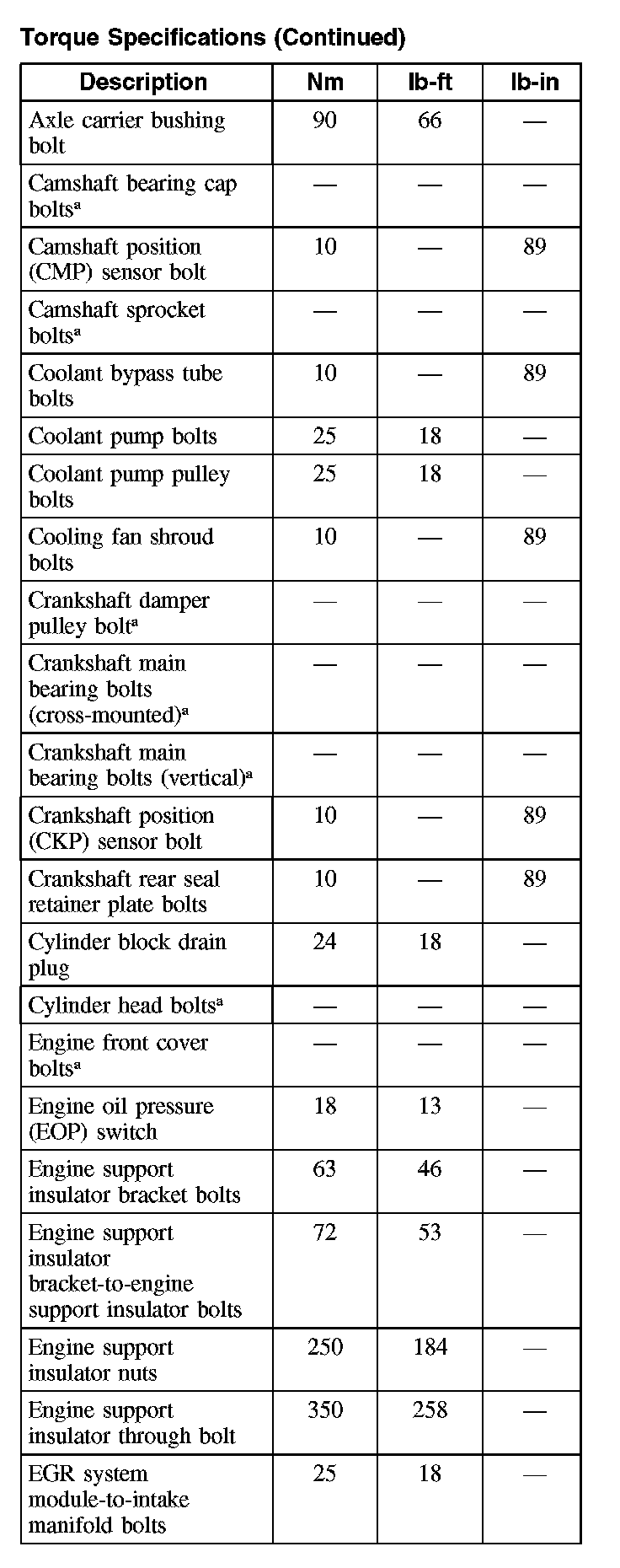

Torque Specifications (Part 1):

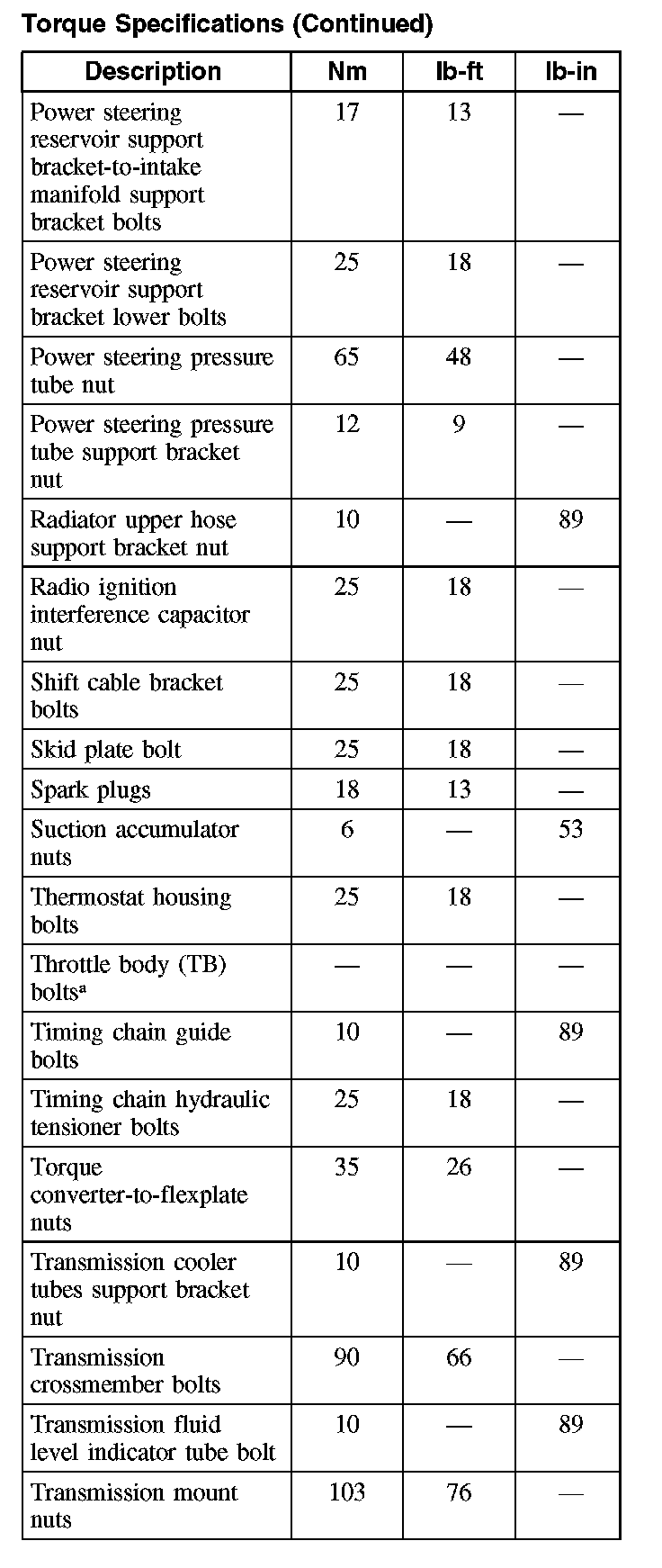

Torque Specifications (Part 2):

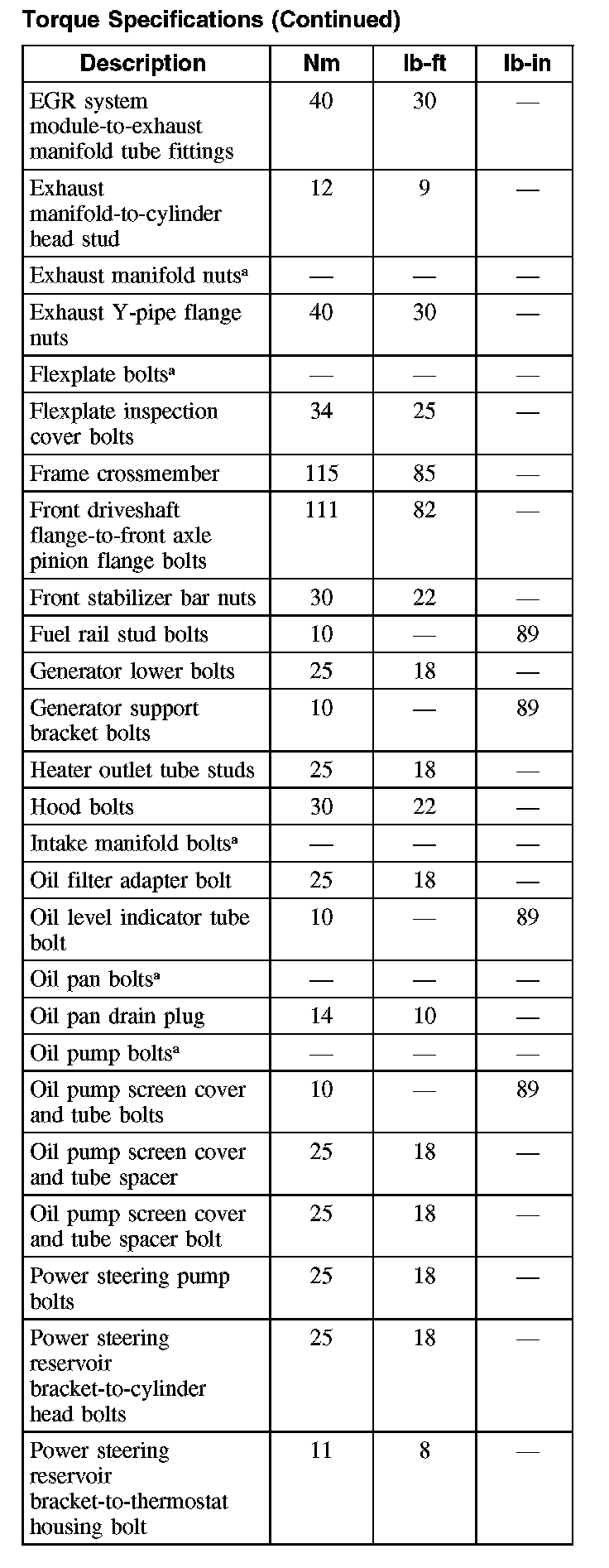

Torque Specifications (Part 3):




Torque Specifications (Part 4):




Torque Specifications (Part 5):





Cylinder Head Bolts

CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused. Failure to follow these instructions may result in engine damage.

Connecting Rod Cap Bolts
Discard the bolts.





First pass 43 Nm (32 lb-ft).
Final pass Tighten an additional 105°
