Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

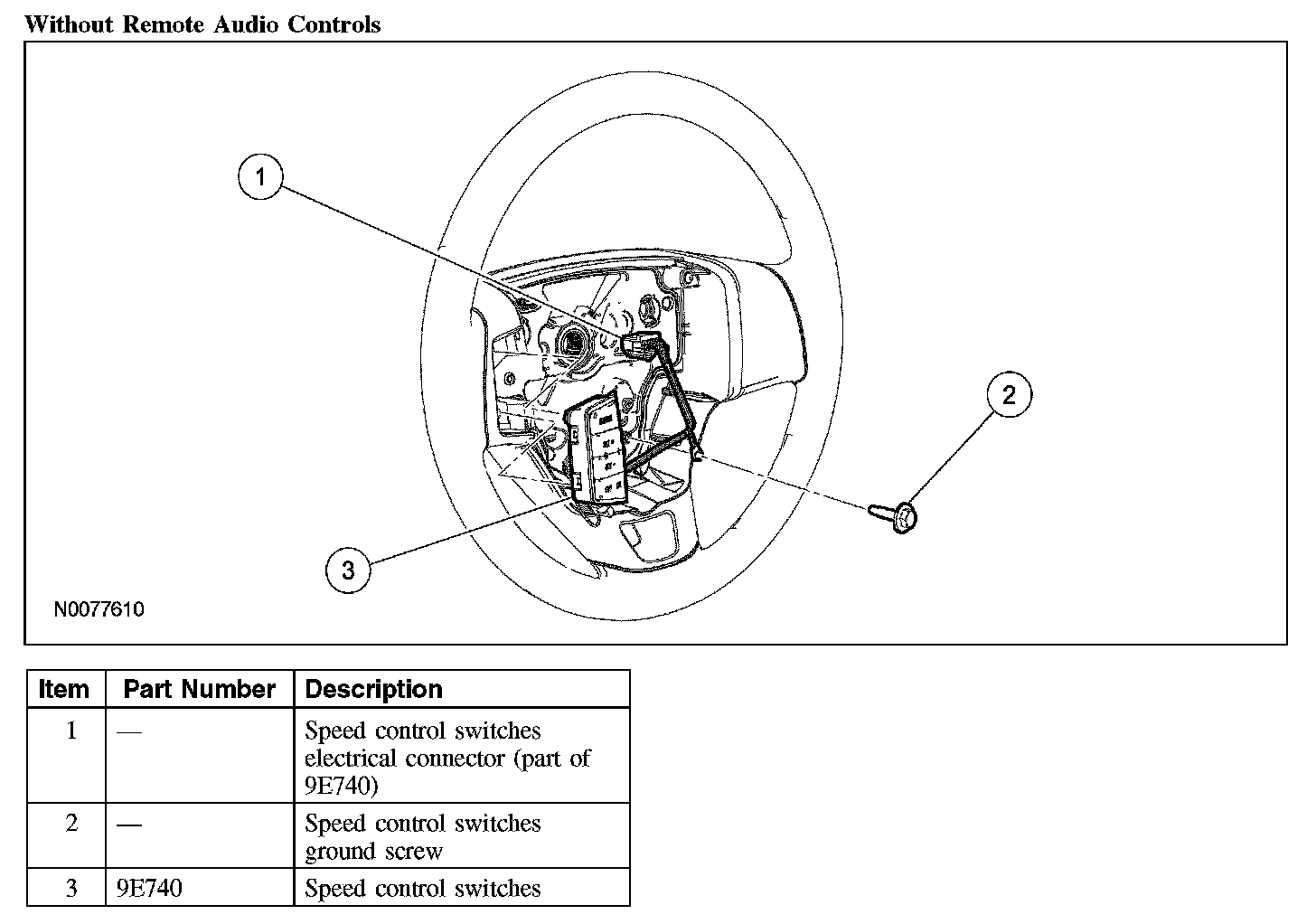

Without Remote Audio Controls:

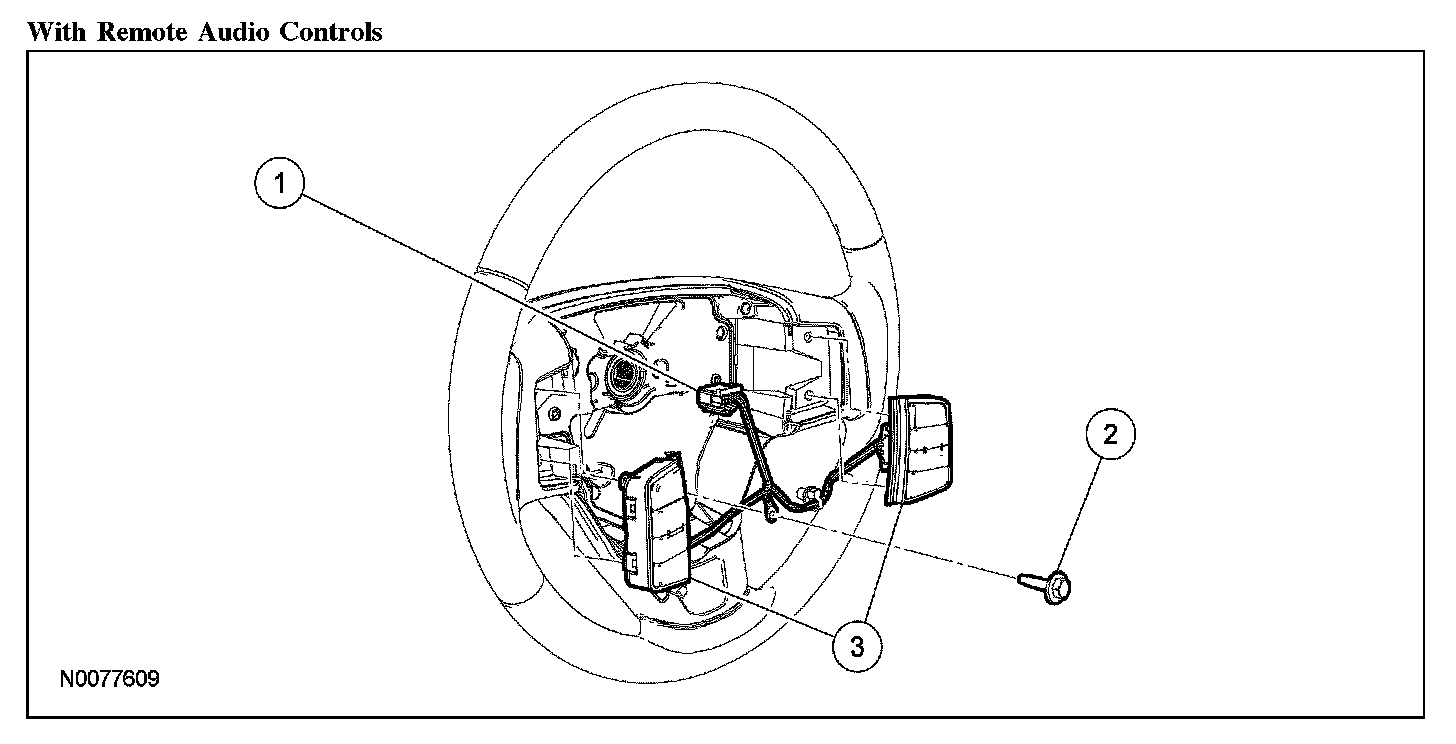

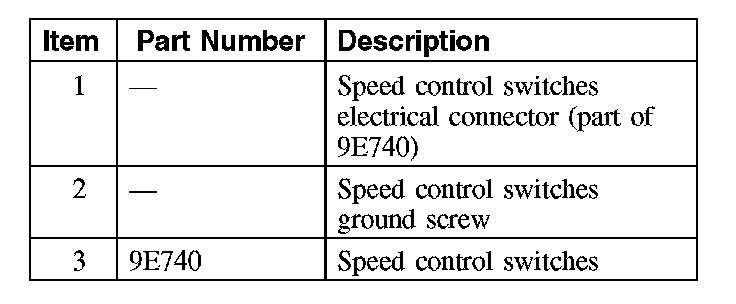

With Remote Audio Controls (Part 1):






With Remote Audio Controls (Part 2):






Removal and Installation
1. Remove the driver air bag module.
2. Remove the speed control switch harness ground screw.
3. Disconnect the speed control switches electrical connector.
4. Remove the speed control switch by pulling the switch toward the rear of the vehicle.
5. To install, reverse the removal procedure.
