Pinpoint Test G: The Front Controls Interface Module (FCIM) Does Not Respond To The Scan Tool



Pinpoint Test G: The Front Controls Interface Module (FCIM) Does Not Respond To The Scan Tool

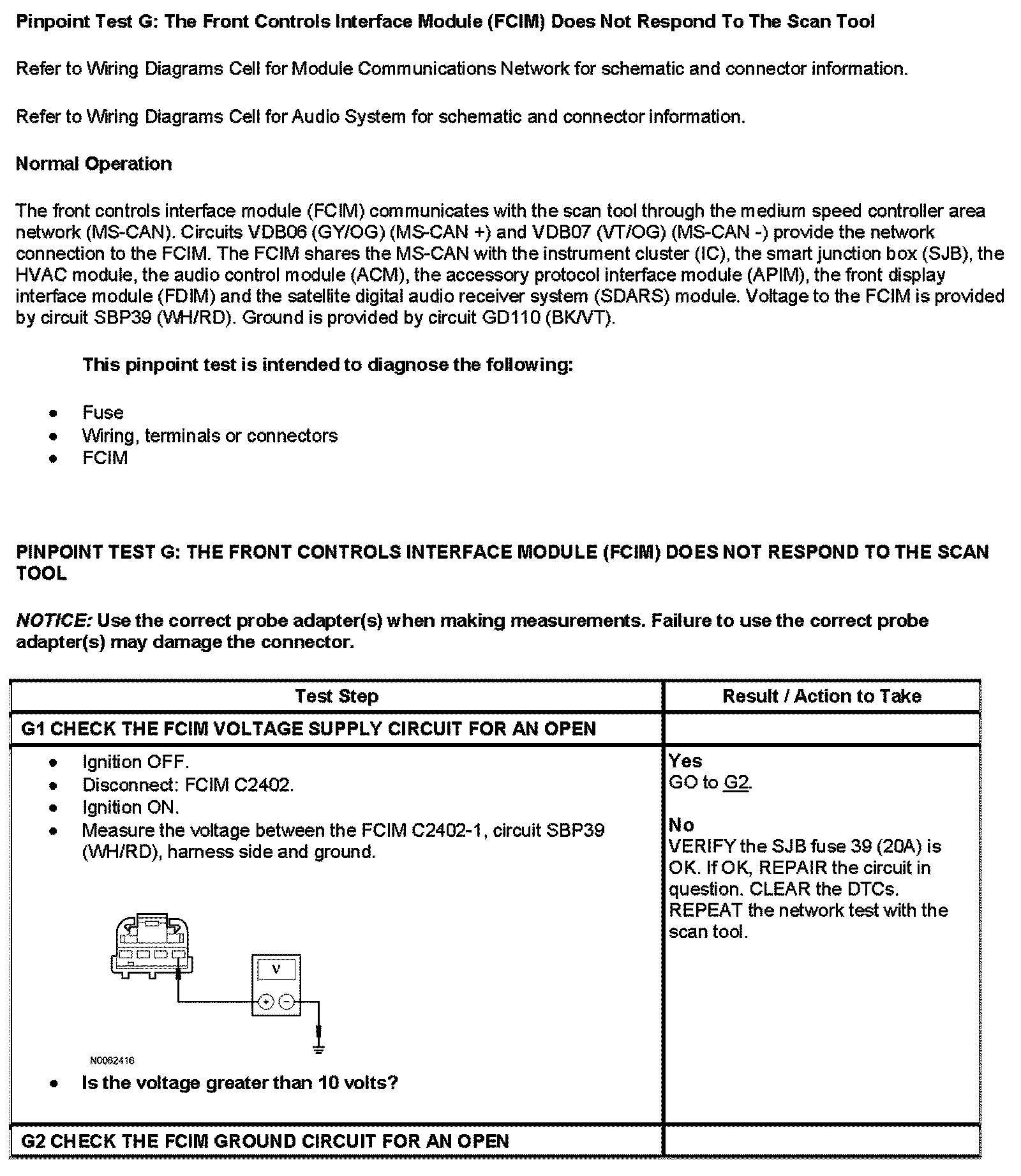

Pinpoint Test G1-G2:

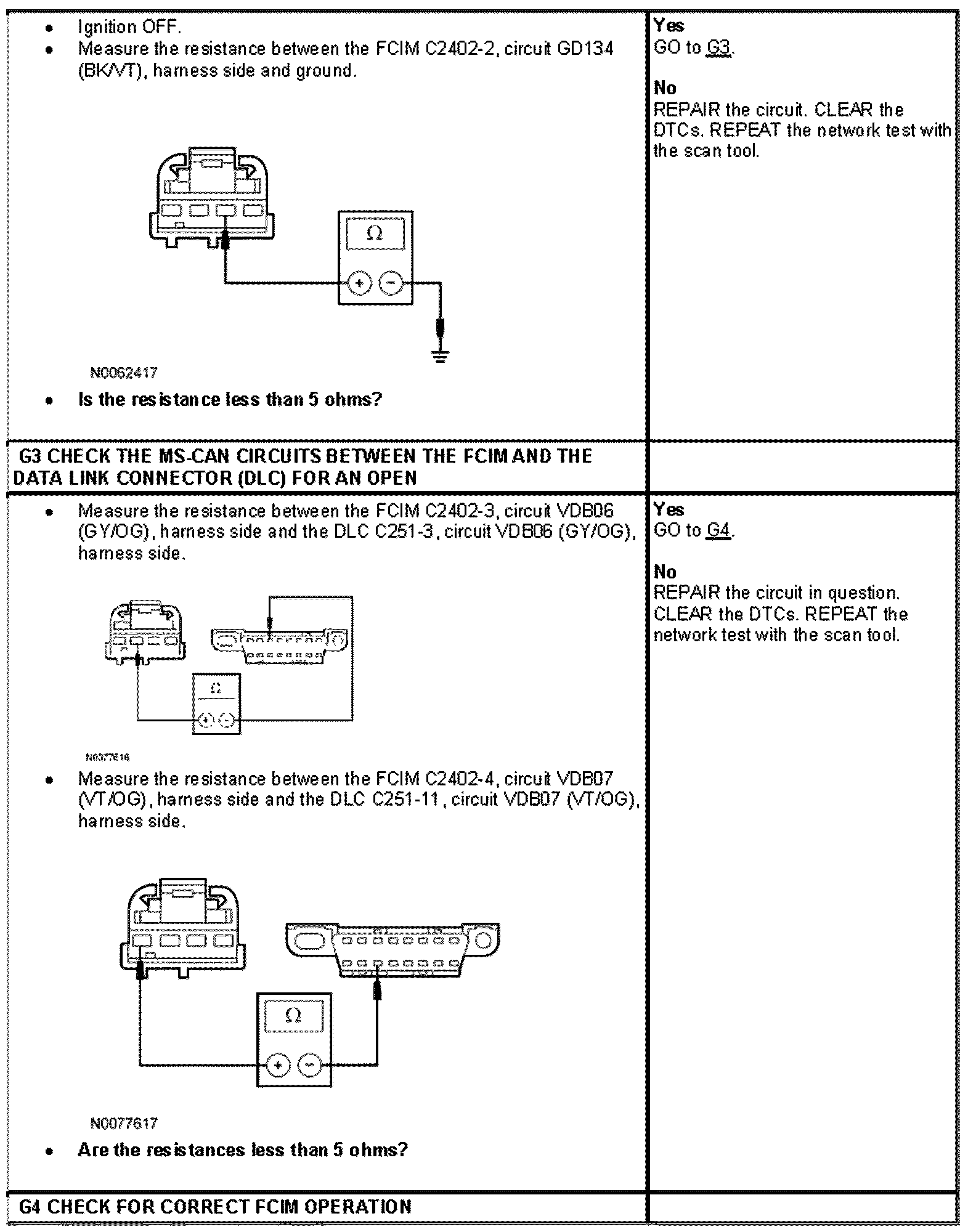

Pinpoint Test G2 Cont'd-G4:

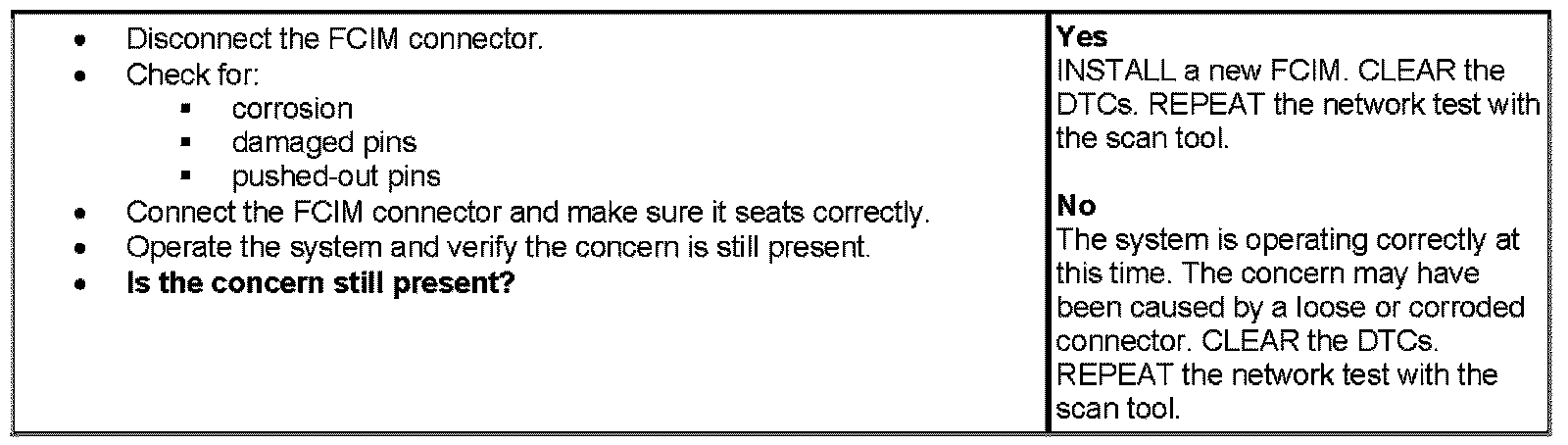

Pinpoint Test G4 Cont'd.:
