Pinpoint Test H: The Front Display Interface Module (FDIM) Does Not Respond To The Scan Tool



Pinpoint Test H: The Front Display Interface Module (FDIM) Does Not Respond To The Scan Tool

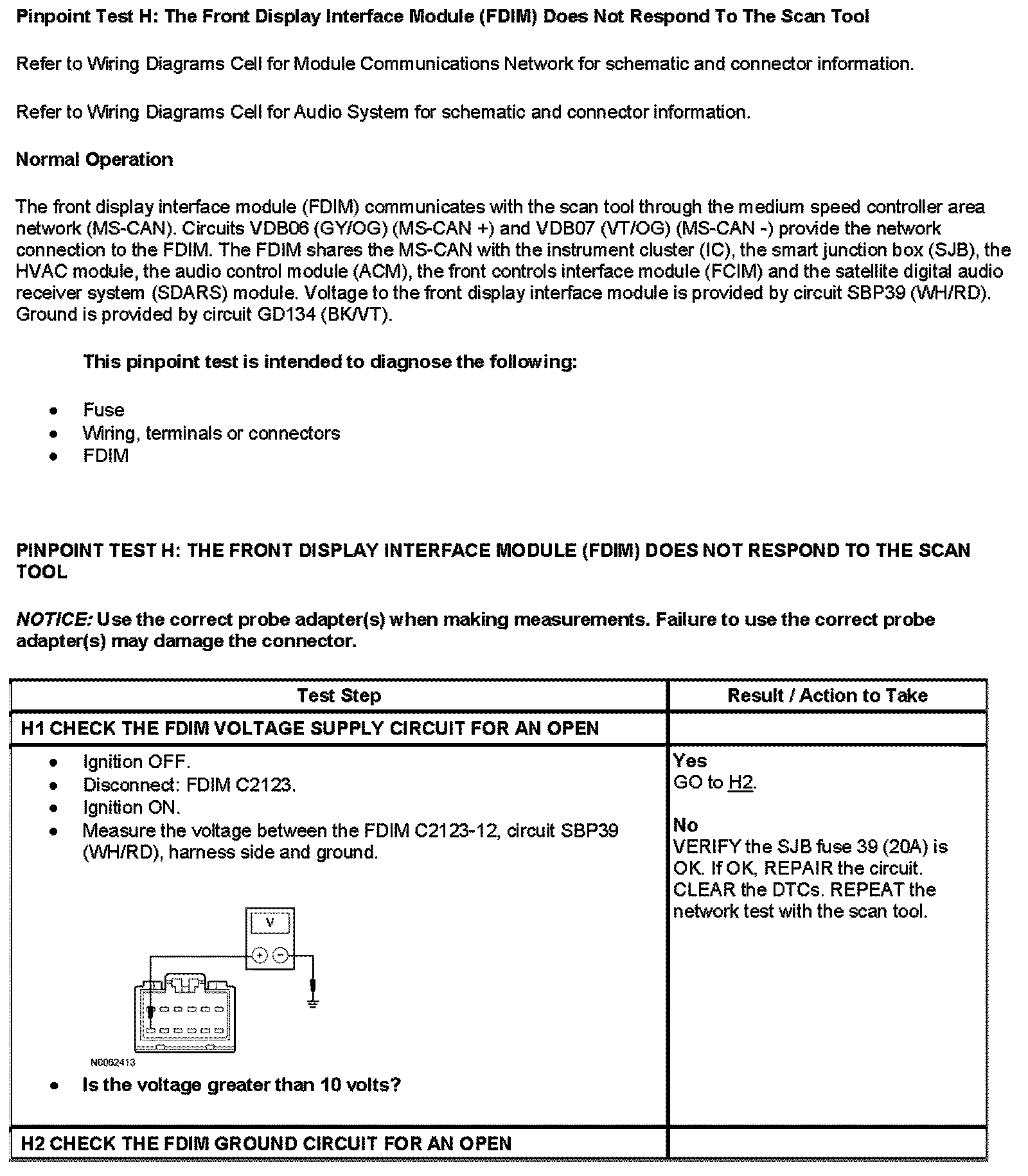

Pinpoint Test H1-H2:

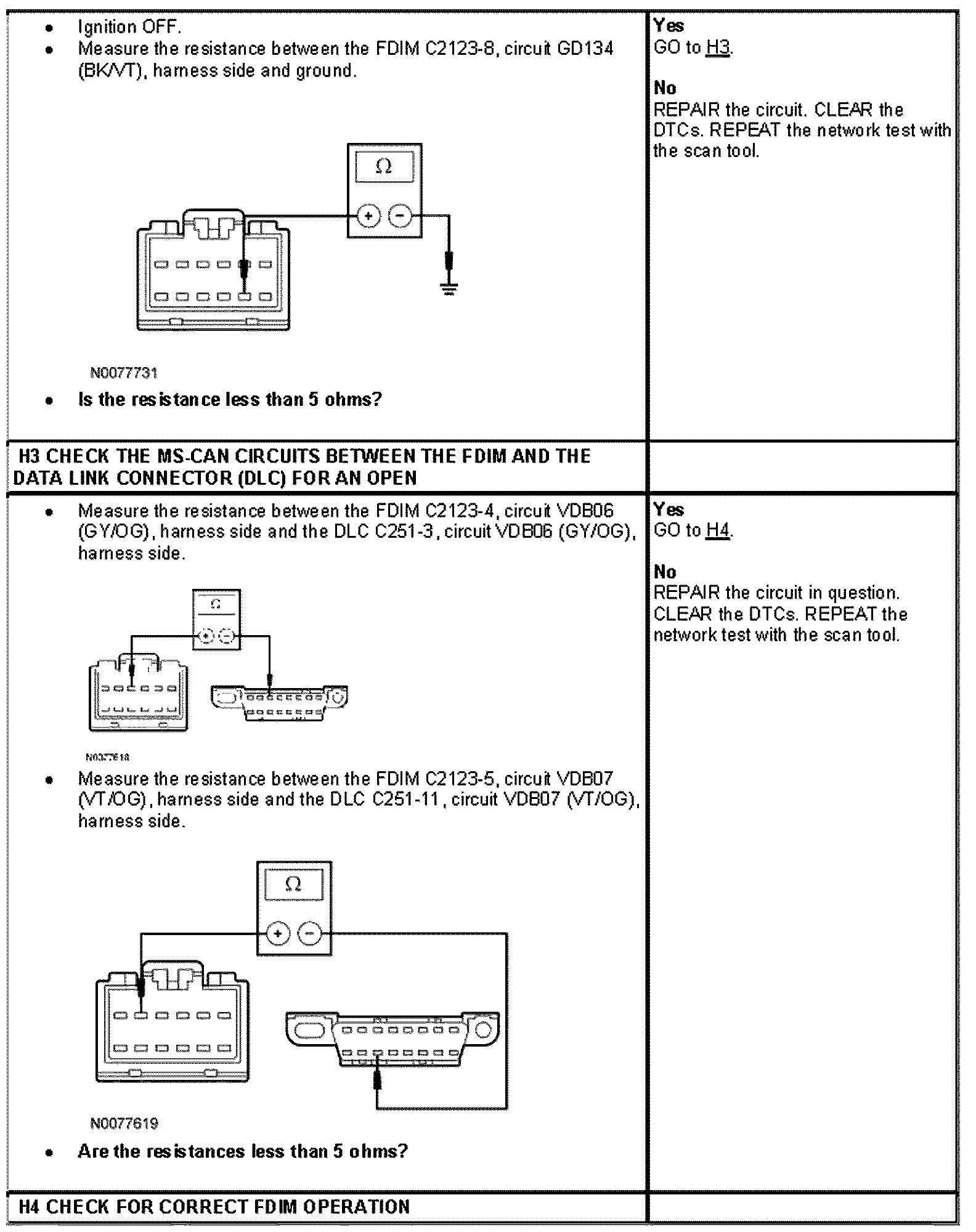

Pinpoint Test H2 Cont'd-H4:

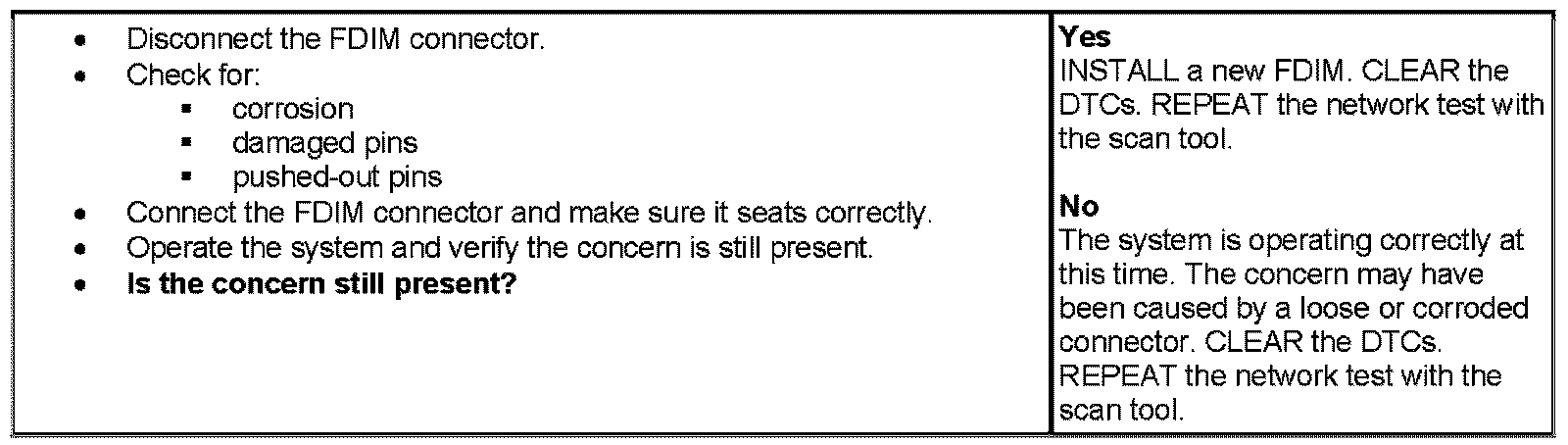

Pinpoint Test H4 Cont'd.:
