Symptom Related Diagnostic Procedures



Symptom Chart

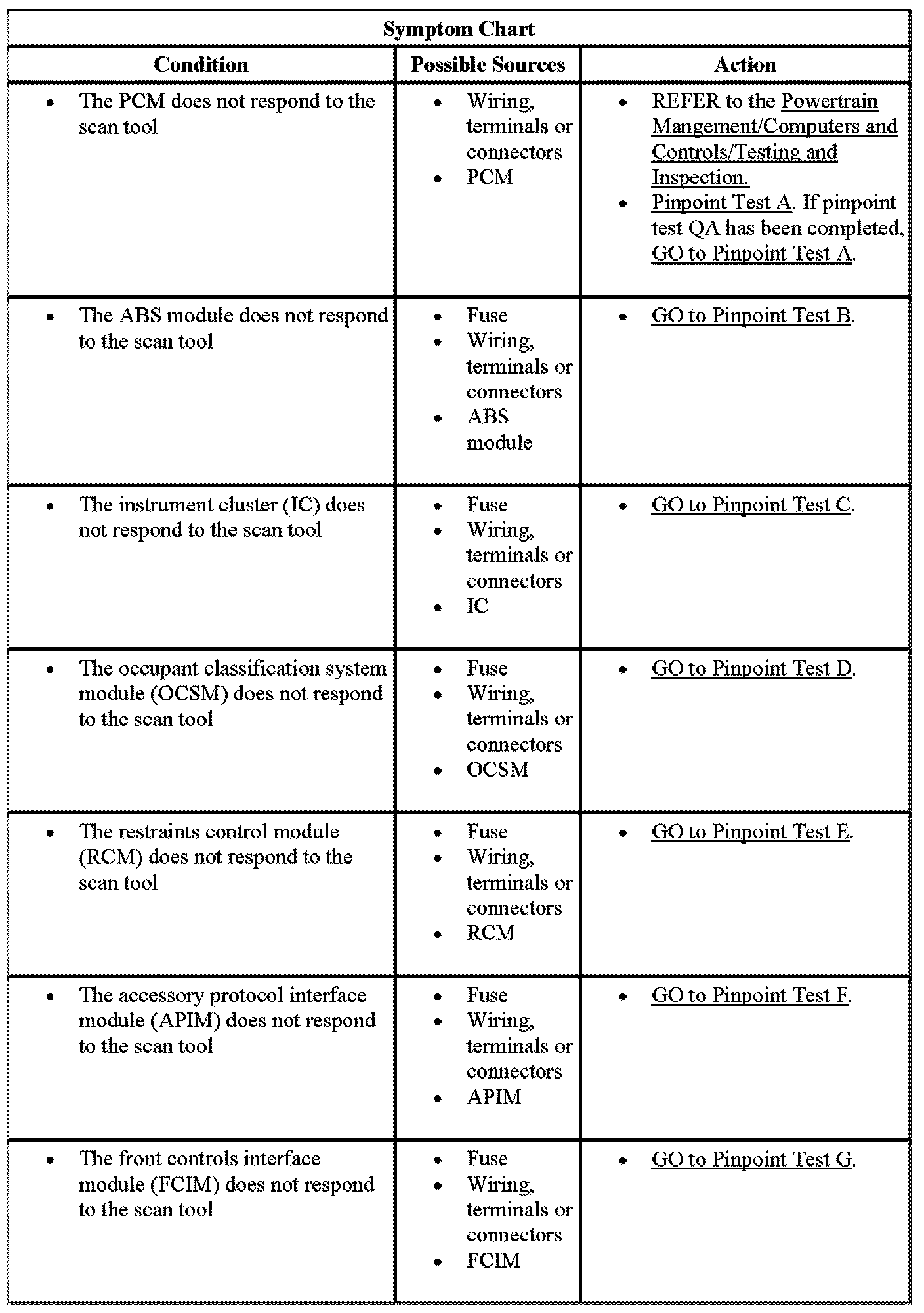

Symptom Chart (1 Of 3):

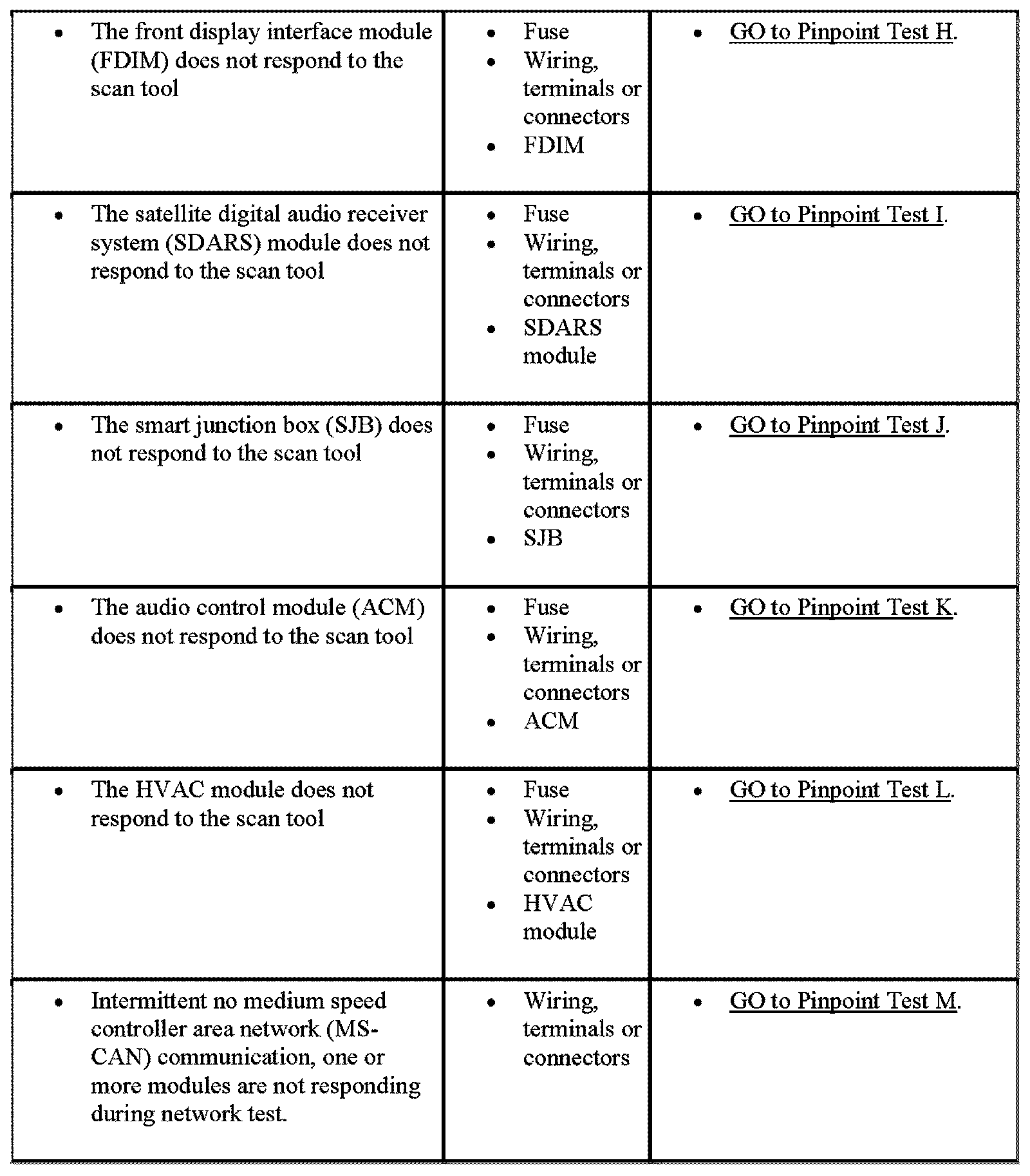

Symptom Chart (2 Of 3):

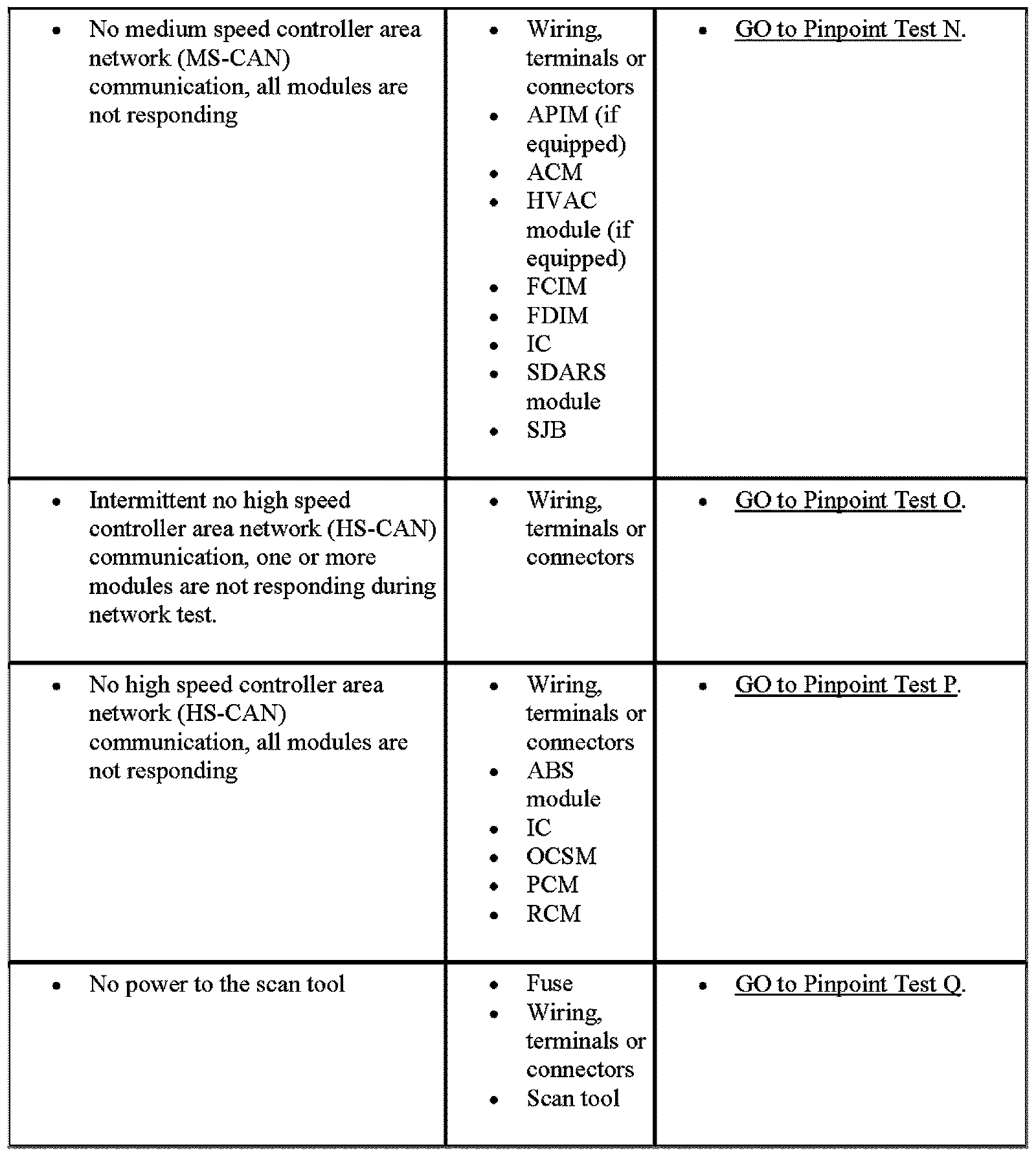

Symptom Chart (3 Of 3):
