Main Relay (Computer/Fuel System): Locations

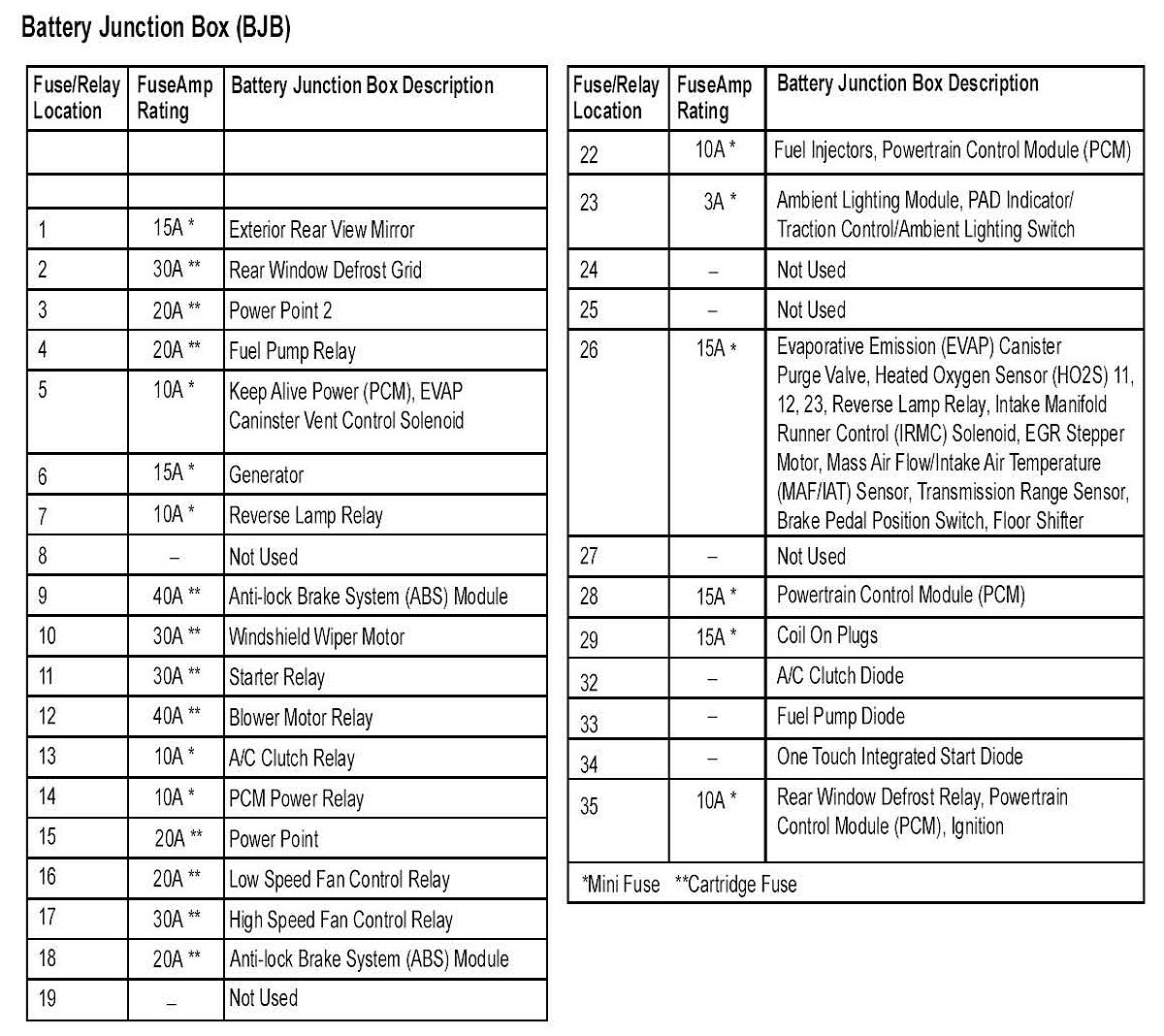

Battery Junction Box (BJB):

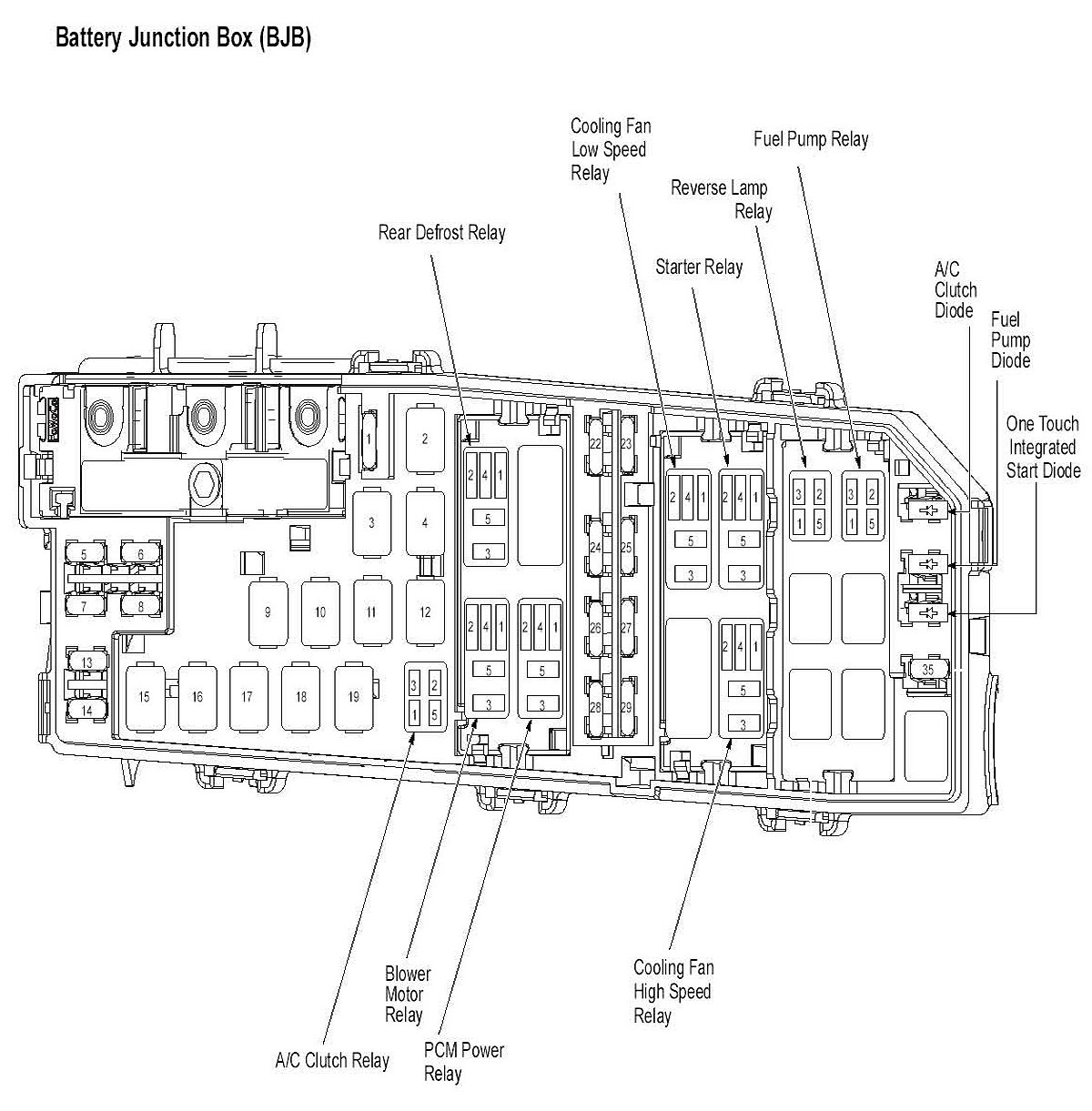

Battery Junction Box (BJB):







PCM Power Relay is located in the Battery Junction Box (BJB).

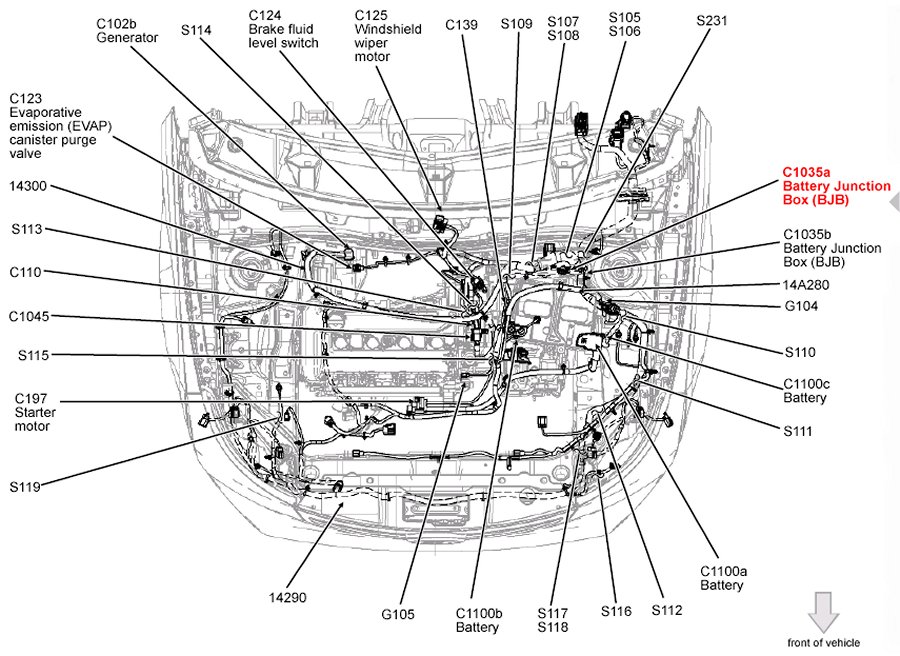

Battery Junction Box (BJB) is located in the engine compartment, rear LH side.
