Catalyst Monitor Sensor

CATALYST MONITOR SENSOR

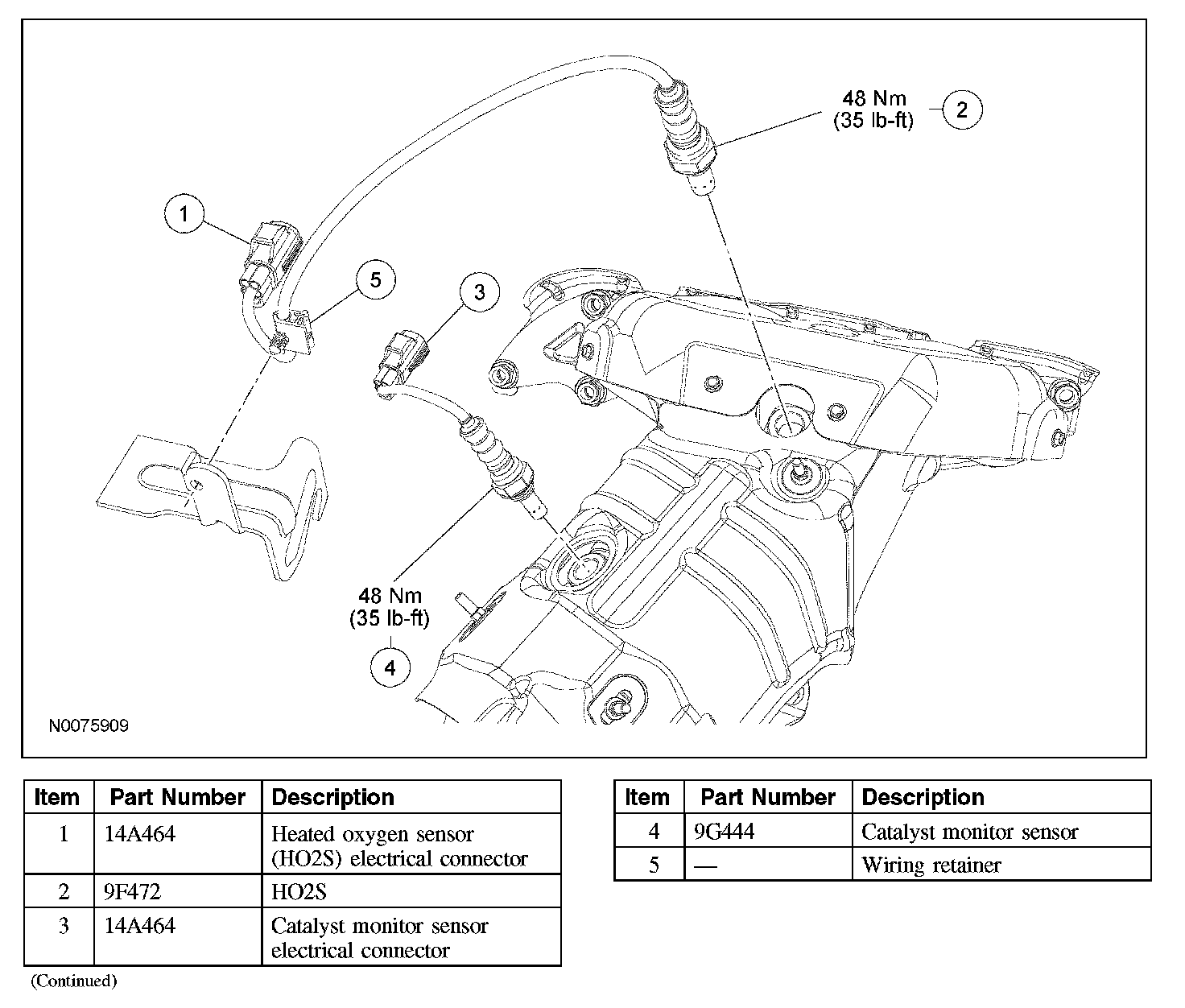

Exploded View

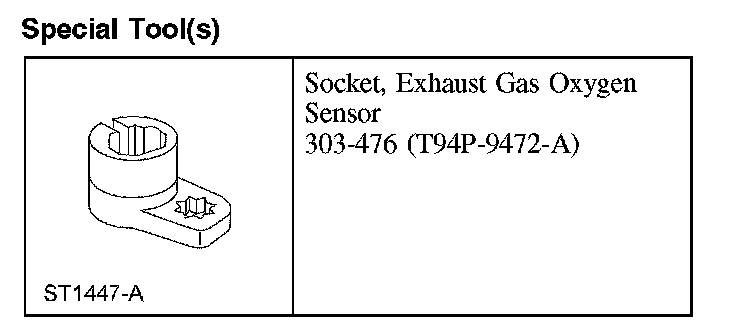

Special Tool(s)

Special Tool(s):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

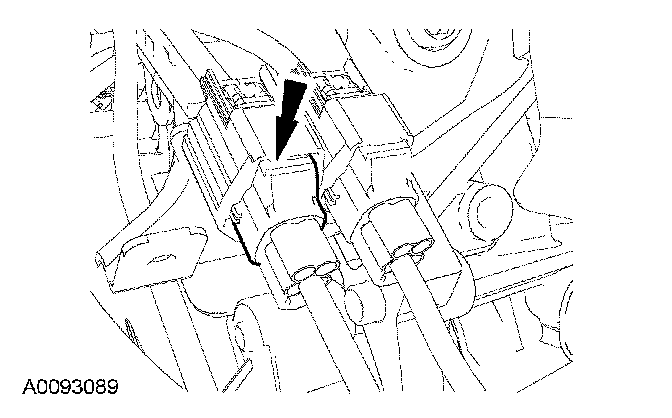

2. Disconnect the electrical connector and detach the wiring retainer.







3. NOTE: If necessary, lubricate the catalyst monitor sensor with penetrating and lock lubricant to assist in removal.

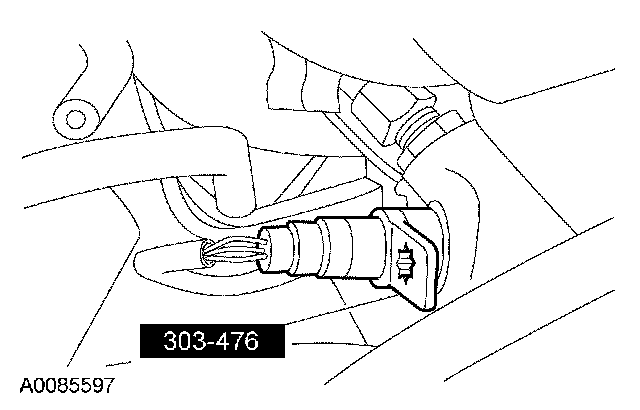

Using the special tool, remove the catalyst monitor sensor.
- To install, tighten to 48 Nm (35 lb-ft).







4. CAUTION: Make sure that the sensor wiring is routed away from hot surfaces and sharp edges or damage to the wiring may occur.

NOTE:
- Apply a light coat of anti-seize lubricant to the threads of the catalyst monitor sensor.
- Make sure that the electrical connector locking tab is engaged.

To install, reverse the removal procedure.
