Front Wheel Alignment

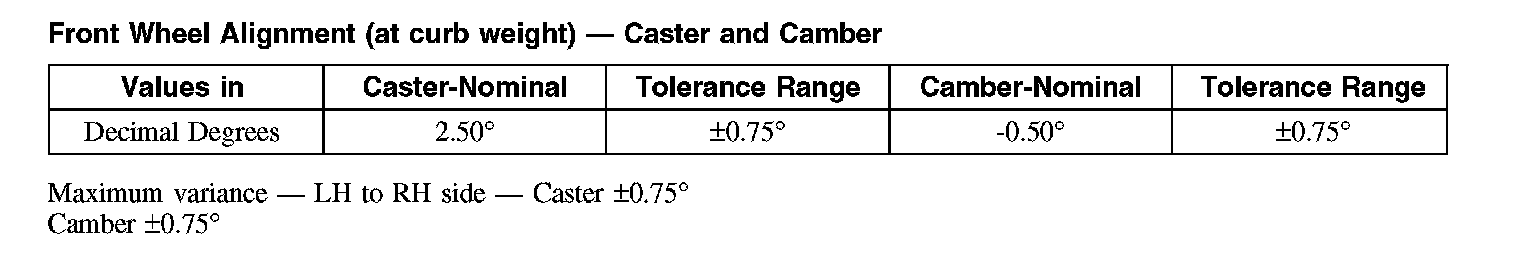

Front Wheel Alignment (at curb weight) - Caster and Camber

Front Wheel Alignment (at curb weight) - Caster and Camber:

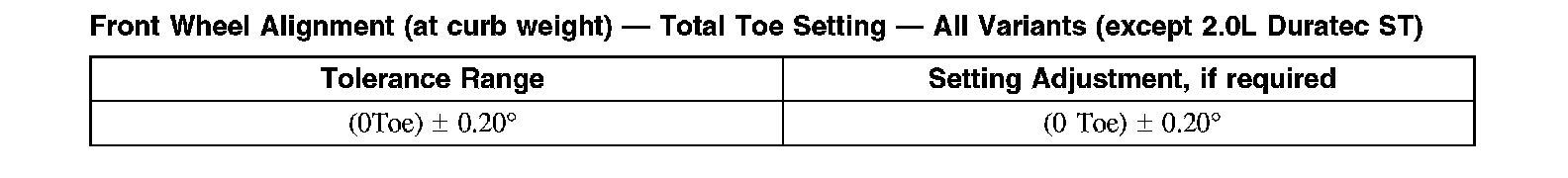

Front Wheel Alignment (at curb weight) - Total Toe Setting - All Variants (except 2.0L Duratec ST)

Front Wheel Alignment (at curb weight) - Total Toe Setting - All Variants (except 2.0L Duratec ST):
