Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

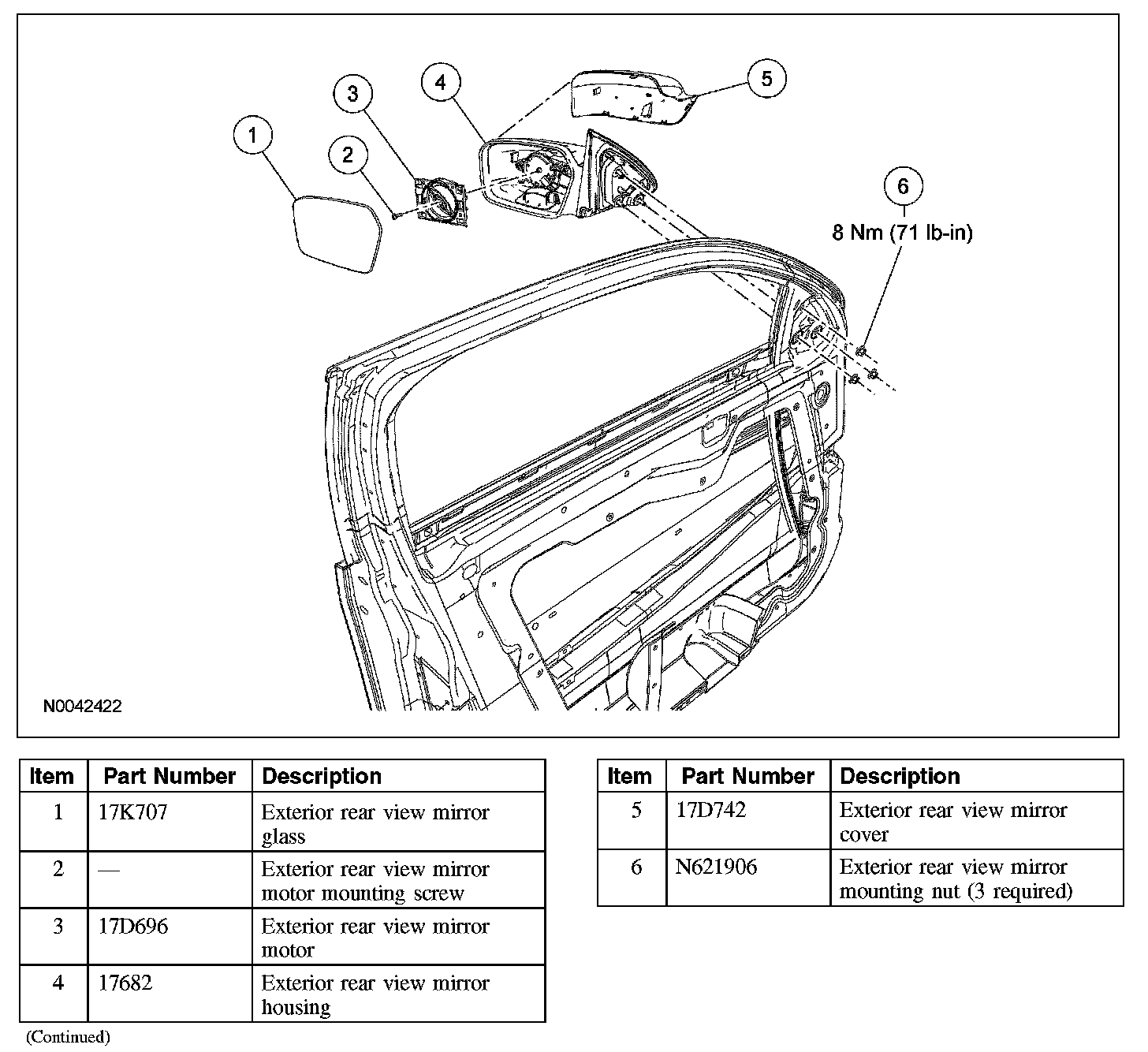

Exploded View







Removal and Installation
1. Remove the exterior rear view mirror glass.
2. Remove the screw from the center of the exterior rear view mirror motor.







3. NOTE: Use a flat-blade screwdriver to remove the motor from the clips.

Remove the exterior rear view mirror motor from the 3 clips on the bracket.
- Disconnect the electrical connector.







4. To install, reverse the removal procedure.
