Exterior Mirror Glass

EXTERIOR MIRROR GLASS

Exploded View







Removal

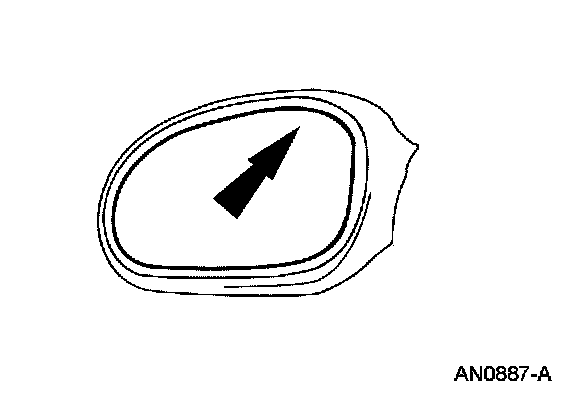

1. Position the upper edge of the exterior rear view mirror glass to its maximum outward travel.

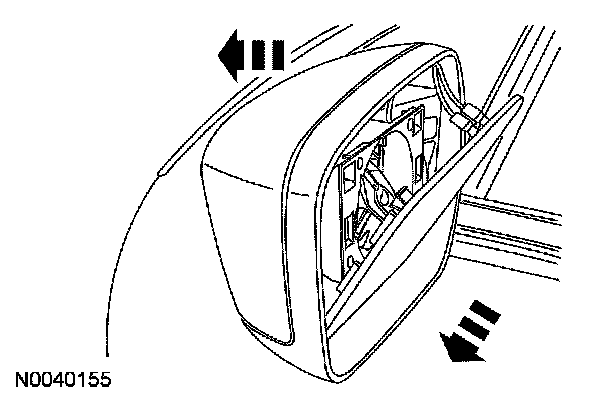

2. Grasp the upper edge of the exterior rear view mirror glass pulling outward and upward.

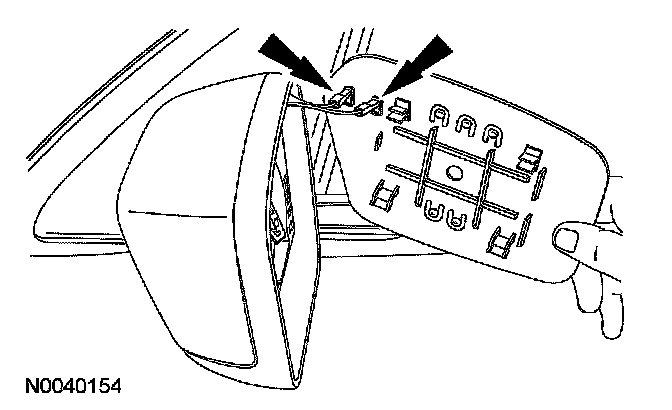

3. If equipped with heated mirrors, disconnect the electrical connectors from the exterior mirror glass.







Installation

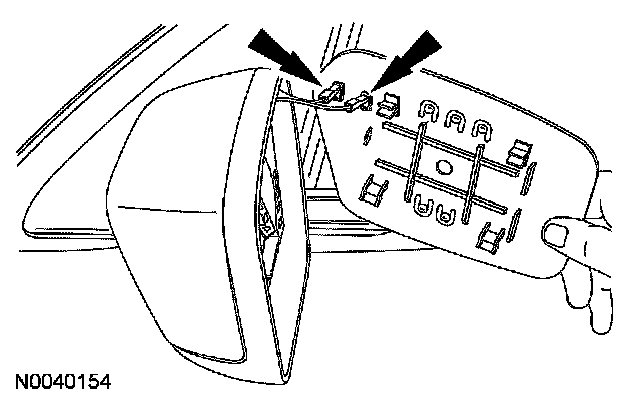

1. If equipped with heated exterior mirrors, connect the electrical connectors to the mirror glass.







2. NOTE: An audible click will be heard during installation.

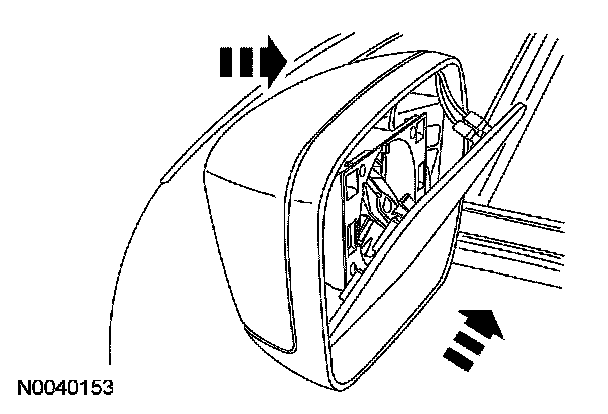

Position the exterior rear view mirror onto the rear view mirror motor.
- Position the mirror glass onto the rear view mirror motor.
- Press the upper edge of the mirror glass into the upper rear view mirror motor retainers.
