Evaporator Temperature Sensor / Switch: Service and Repair

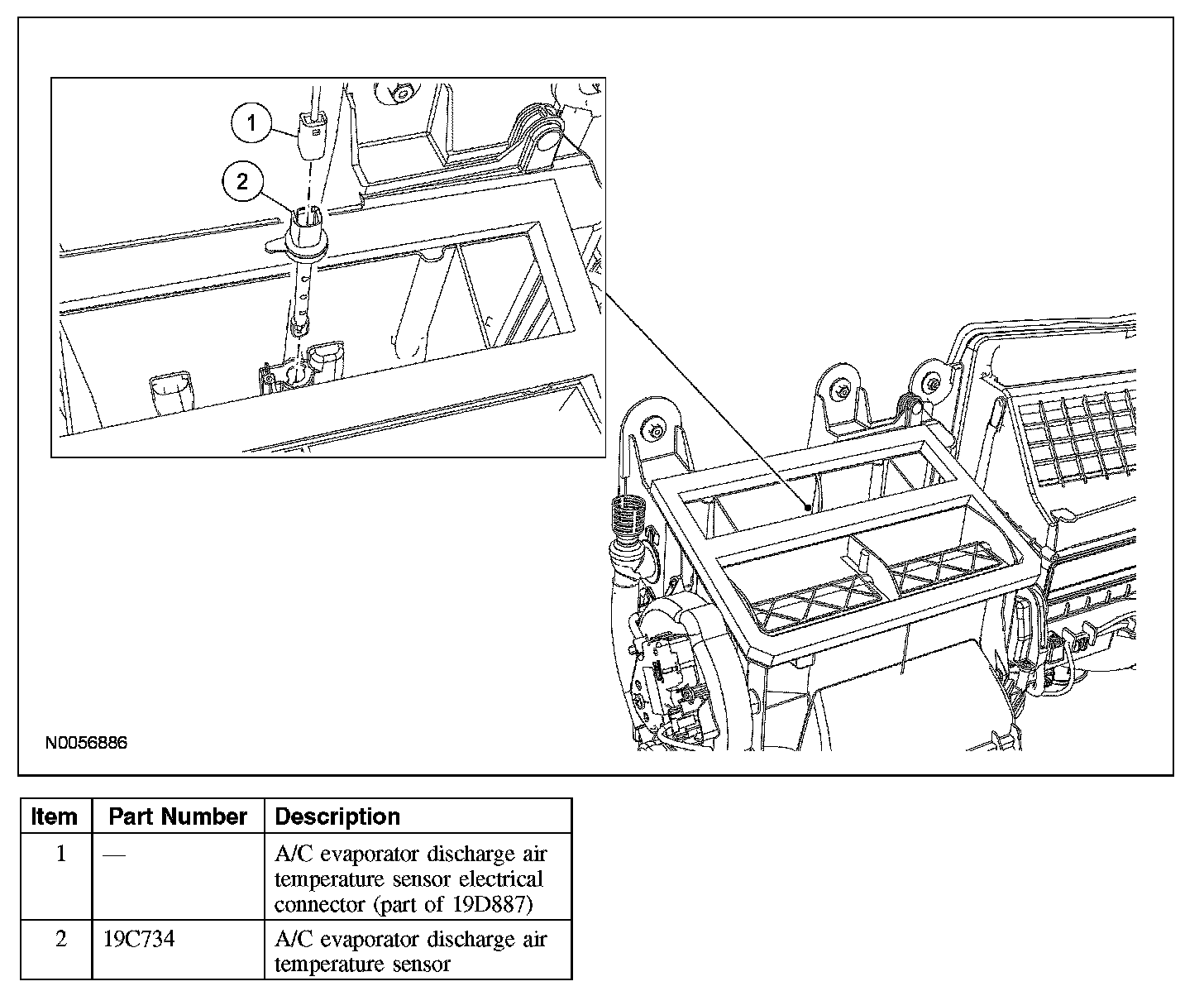

AIR CONDITIONING (A/C) EVAPORATOR DISCHARGE AIR TEMPERATURE SENSOR







Removal and Installation
1. Remove the instrument panel.
2. Detach the A/C evaporator discharge air temperature sensor.
3. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.
4. Remove the evaporator discharge air temperature sensor.
5. To install, reverse the removal procedure.
