Instrument Panel Speaker: Notes

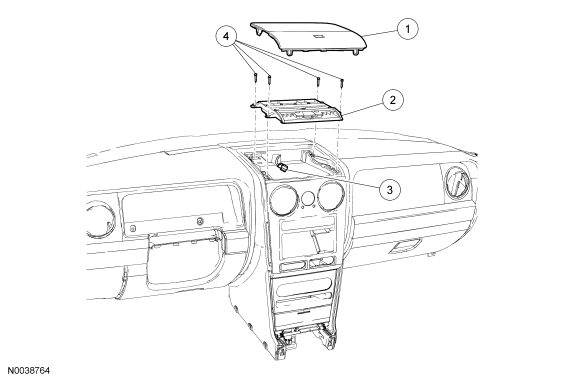

Fig 1: Exploded View Of Instrument Panel Speaker
GF0030452Courtesy of FORD MOTOR CO.
Item Part Number Description
1 54044A92 Instrument panel speaker cover
2 18808 Instrument panel speaker
3 - Instrument panel speaker electrical connector (part of 14401)
4 - Instrument panel speaker screws (4 required)
