Intake Air Temperature 2 Sensor Connector

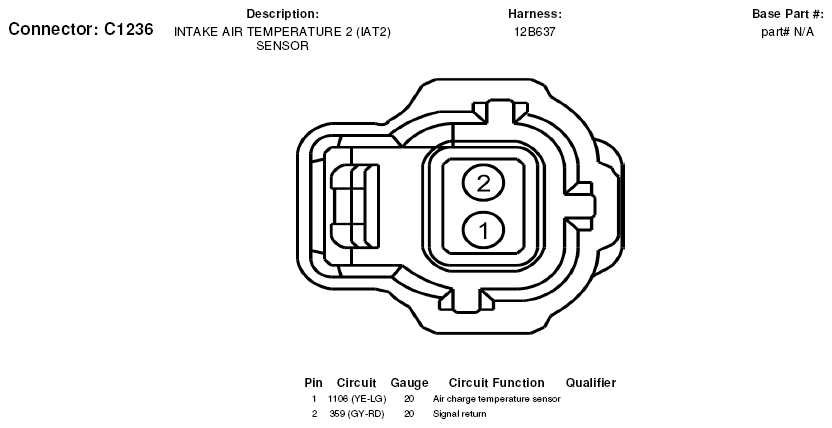

Fig 1: Intake Air Temperature 2 Sensor Connector End View (C1236)
