Right Headlamp Connector

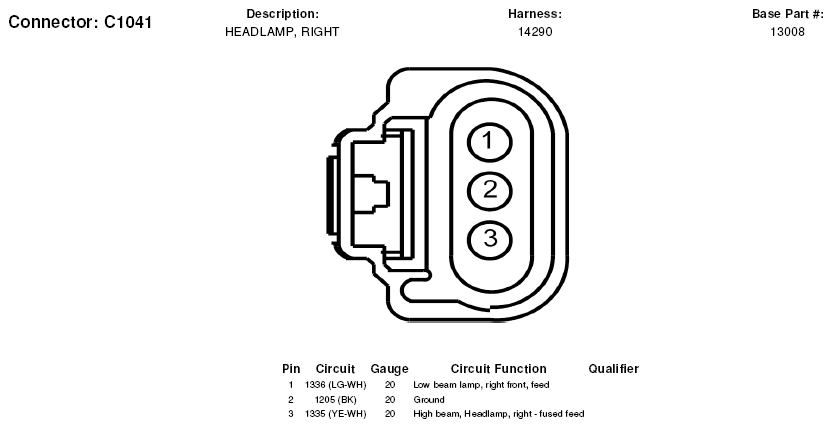

Fig 1: Right Headlamp Connector End View (C1041)
G05602920

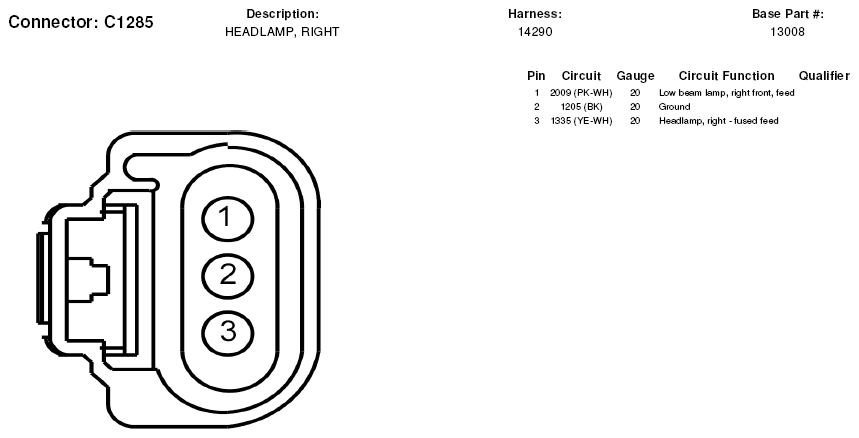

Fig 2: Right Headlamp Connector End View (C1285)
G05602943
