Coolant Temperature Sensor/Switch (For Computer): Service and Repair

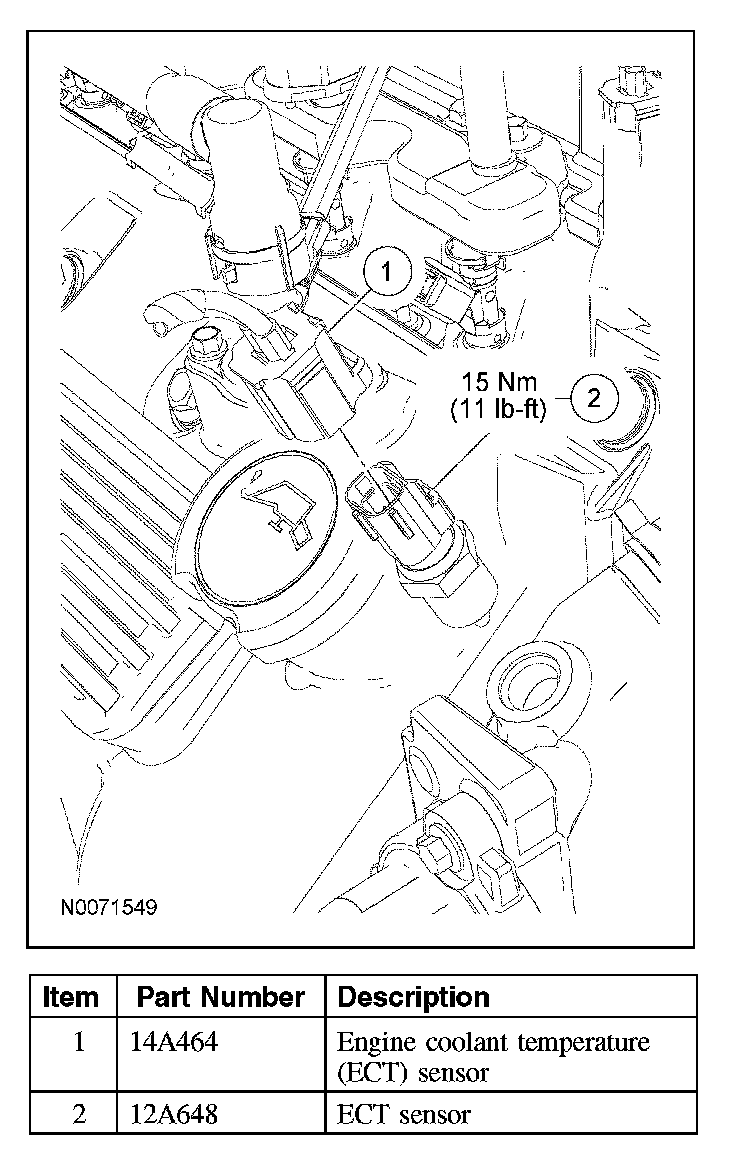

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Removal and Installation
1. Drain the cooling system.
2. Disconnect the engine coolant temperature (ECT) sensor electrical connector.
3. Remove the ECT sensor.
- To install, tighten to 15 Nm (11 lb-ft).

4. To install, reverse the removal procedure.
5. Fill and bleed the cooling system.
