Automatic Transmission

WARNING: This page is about a different variant/trim than selected.

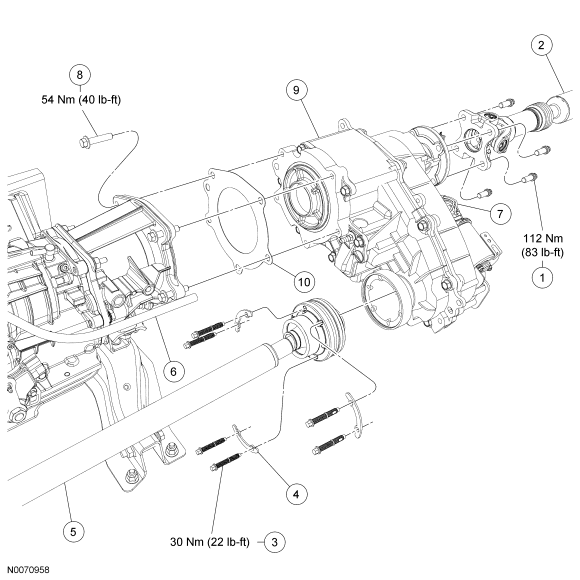

Fig 1: Exploded View Of Transfer Case With Torque Specifications (With Automatic Transmission)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N800594-S	Rear driveshaft bolt (4 required)
2	4602	Rear driveshaft
3	-	Front driveshaft bolt (6 required)
4	-	Front driveshaft constant velocity (CV) retainer (3 required)
5	4A376	Front driveshaft
6	7034	Vent hose
7	-	Shift motor electrical connector
8	N605804-S	Transfer case-to-transmission bolt (6 required)
9	7A195	Transfer case
10	7086	Transfer case gasket
