ABS Sensor Block: Service and Repair

Stability Control Sensor Cluster

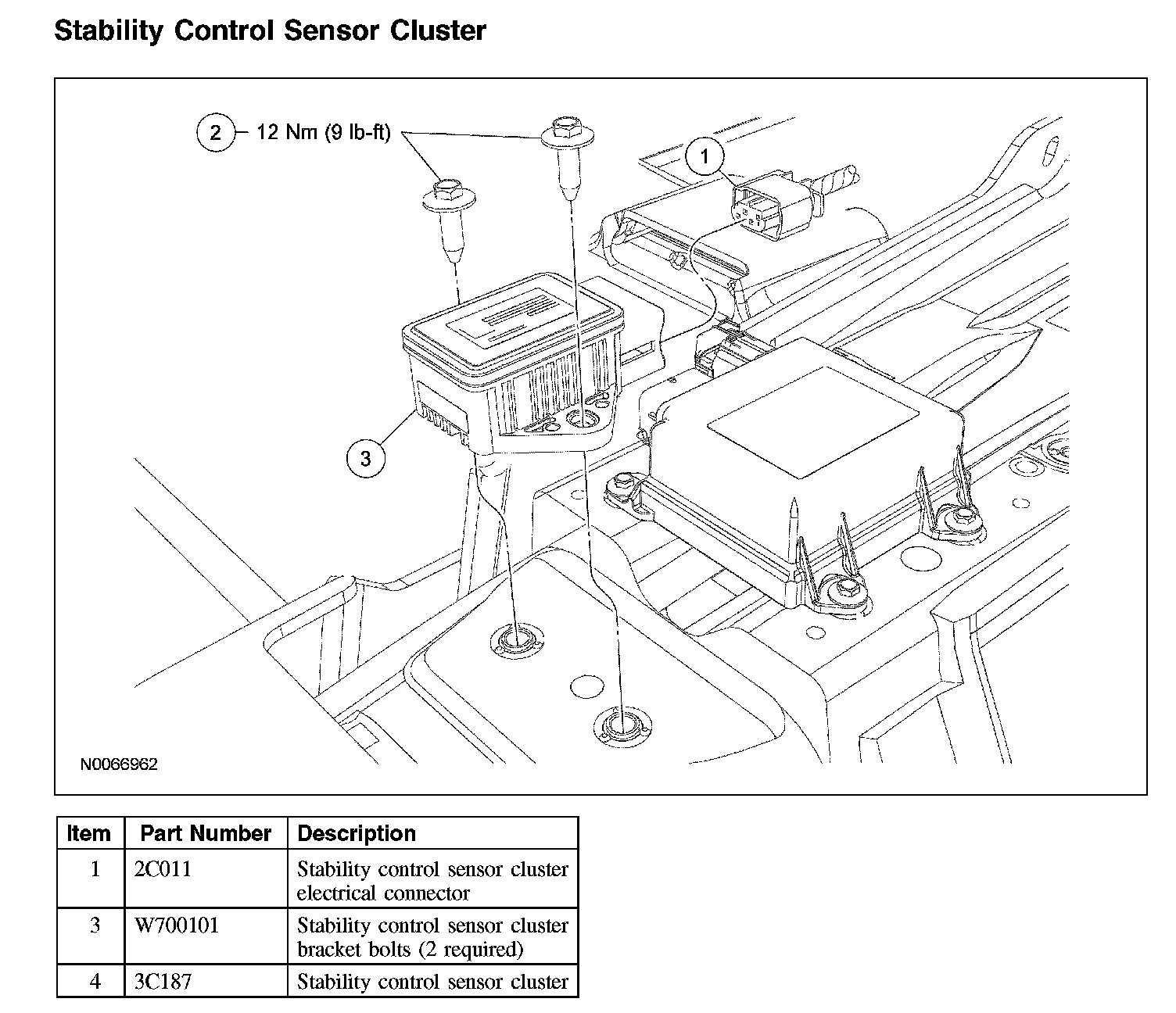

Stability Control Sensor Cluster:

Removal and Installation

NOTE: When installing a new stability control sensor cluster, the ABS module must be calibrated. Follow the scan tool directions for the calibration procedures.

1. Remove the front floor console.
2. Disconnect the stability control sensor cluster electrical connector.
3. Remove the stability control sensor cluster electrical harness retainers and position aside.
4. Remove the 2 stability control sensor cluster bracket bolts and the stability control sensor cluster.
^ To install, tighten to 12 Nm (9 lb-ft).
5. To install, reverse the removal procedure.
