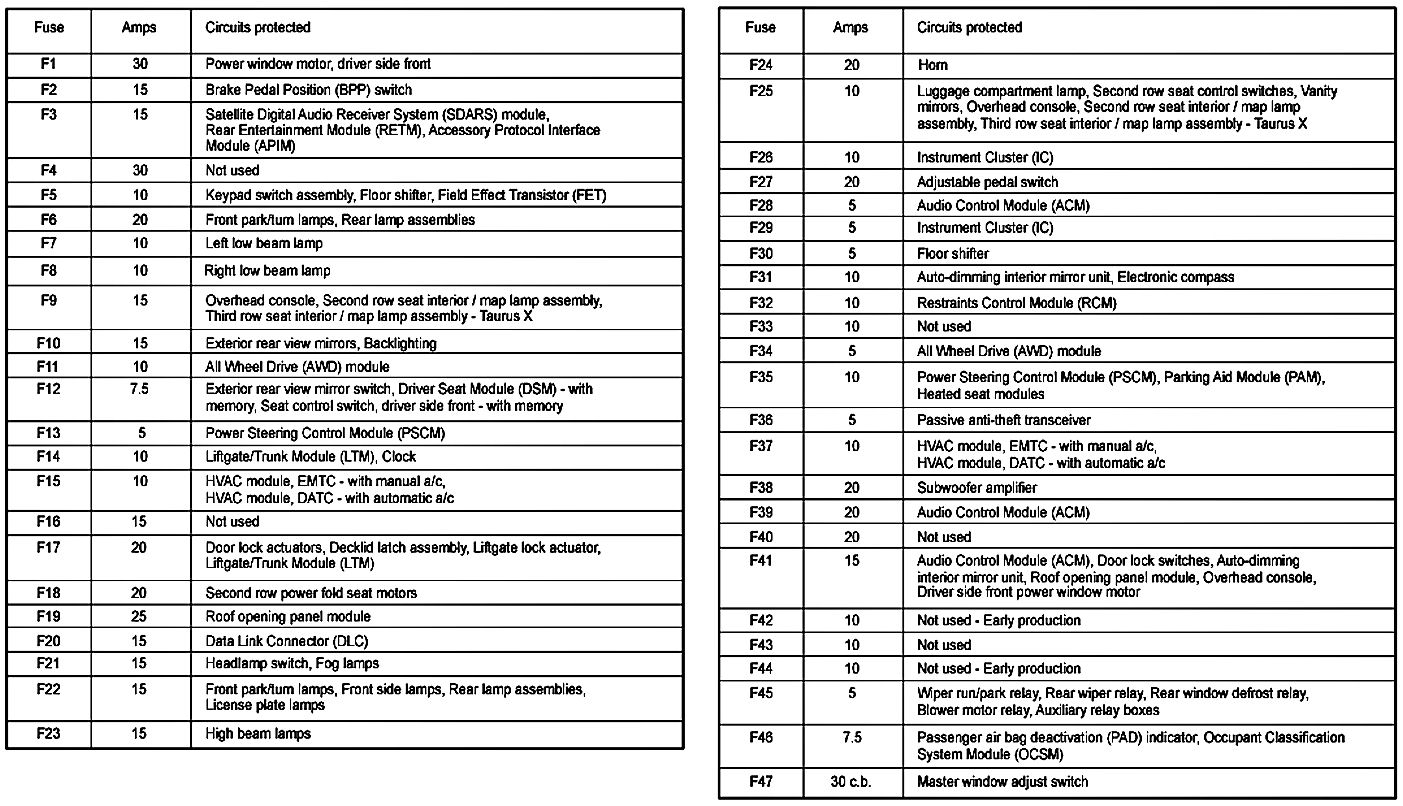

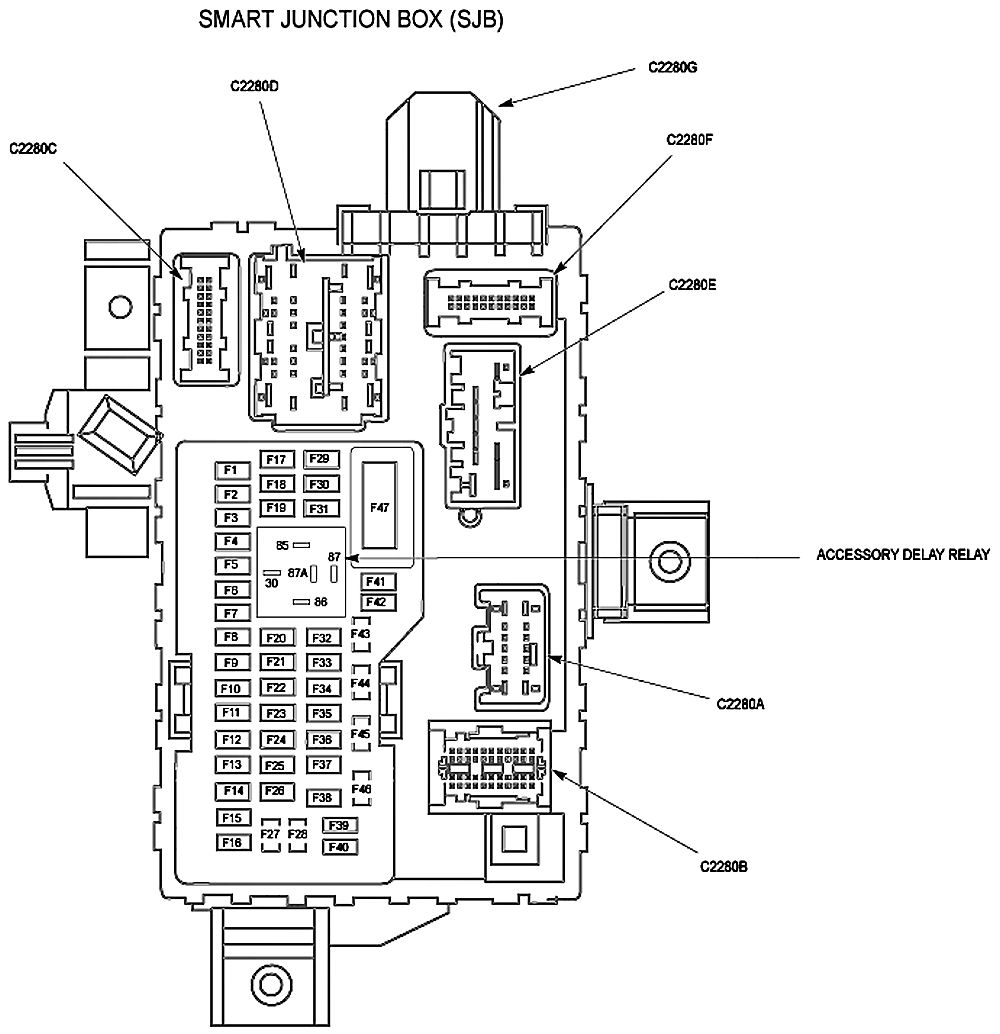

Smart Junction Box
Note:
The fuse panel is located under the instrument panel to the left of the steering wheel.
