Timing Cover

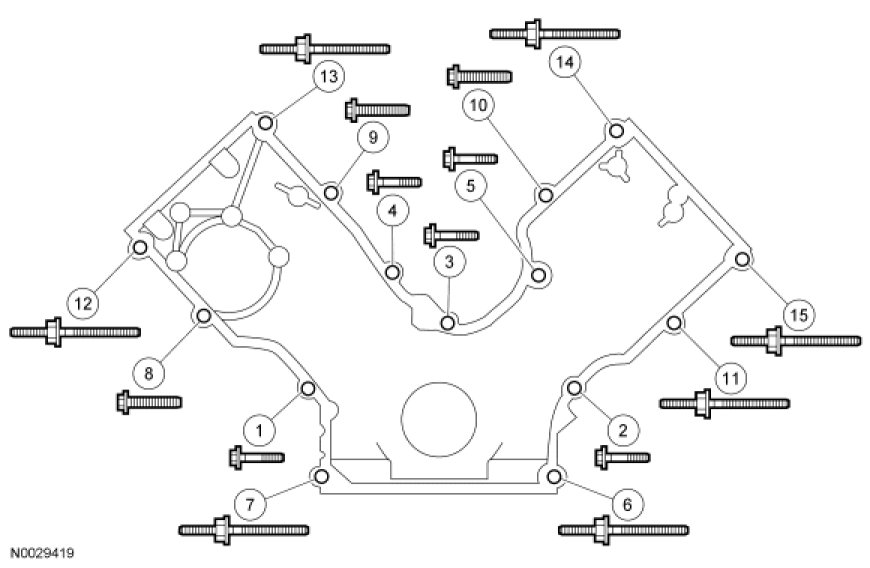

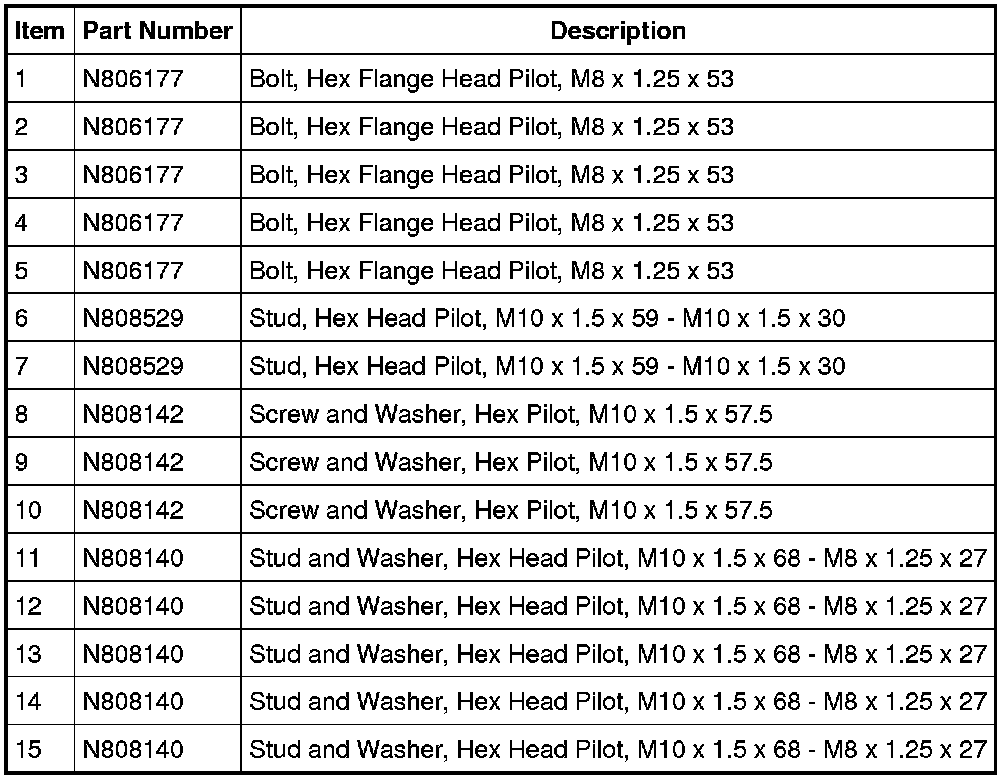

Tighten the 15 engine front cover fasteners in sequence in 3 stages.
Stage 1: Tighten fasteners 1 through 5 to 25 Nm (18 lb-ft).
Stage 2: Tighten fasteners 6 and 7 to 48 Nm (35 lb-ft).
Stage 3: Tighten fasteners 8 through 15 to 48 Nm (35 lb-ft).
